20106 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) RECYCLER BAGGING KIT MODEL NO. 59174 Parts Diagram

Walk-Behind Mower

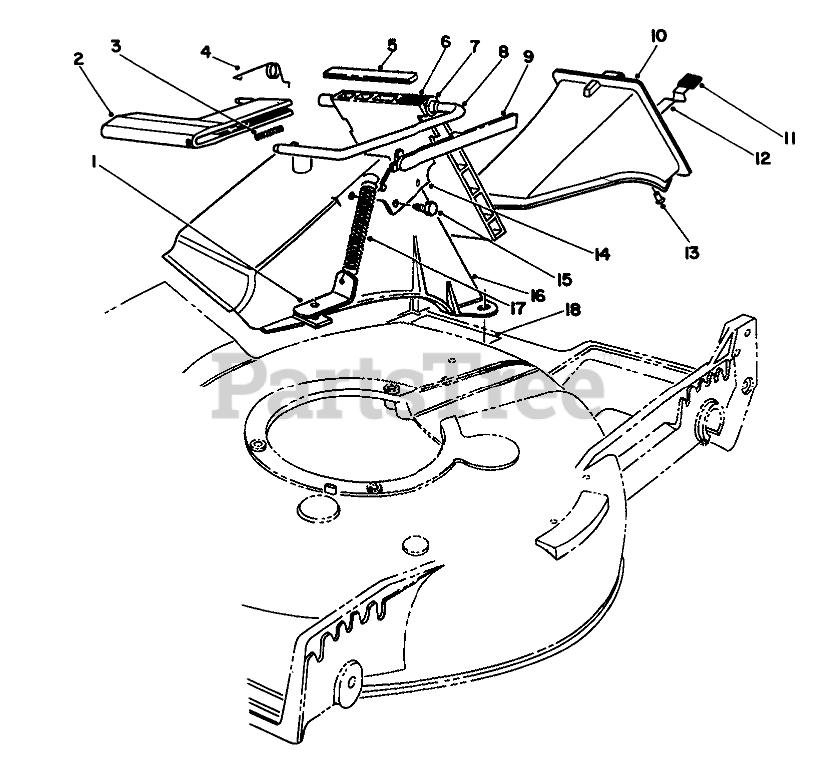

RECYCLER BAGGING KIT MODEL NO. 59174 Parts Diagram

  • Title
1

Toro 80-3780

Bracket-Spring
(Superseded to 71-9350)

$14.99

$

Usually ships in 3-6 days

0

2

Toro 46-3520

Handle-Door

$

$

Not available

3

Toro 46-7060

Spring

$

$

Not available

4

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

5

Toro 46-6821

Cover-Door

$

$

Not available

6

Toro 46-3511

Door-Discharge
(Superseded to 77-0200)

$

$

Not available

7

Toro 23-0880

BUSHING-NYLON

$

$

Not available

8

Toro 76-4580

Rod-Door

$

$

Not available

9

Toro 49-4170

Cover-Handle

$

$

Not available

10

Toro 77-0500

Plug-Assembly (Incl. Ref. #11-13)

$75.99

$

Usually ships in 3-6 days

0

11

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

12

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

13

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

14

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

15

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

16

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

17

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

18

Toro 82-7960

DECAL - CAUTION

$

$

Not available

Toro 77-0200

Discharge Door Assembly (Incl. Ref. #2, 3, & 5-9)

$

$

Not available
