20104F - Murray 20" Walk-Behind Mower (2004) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

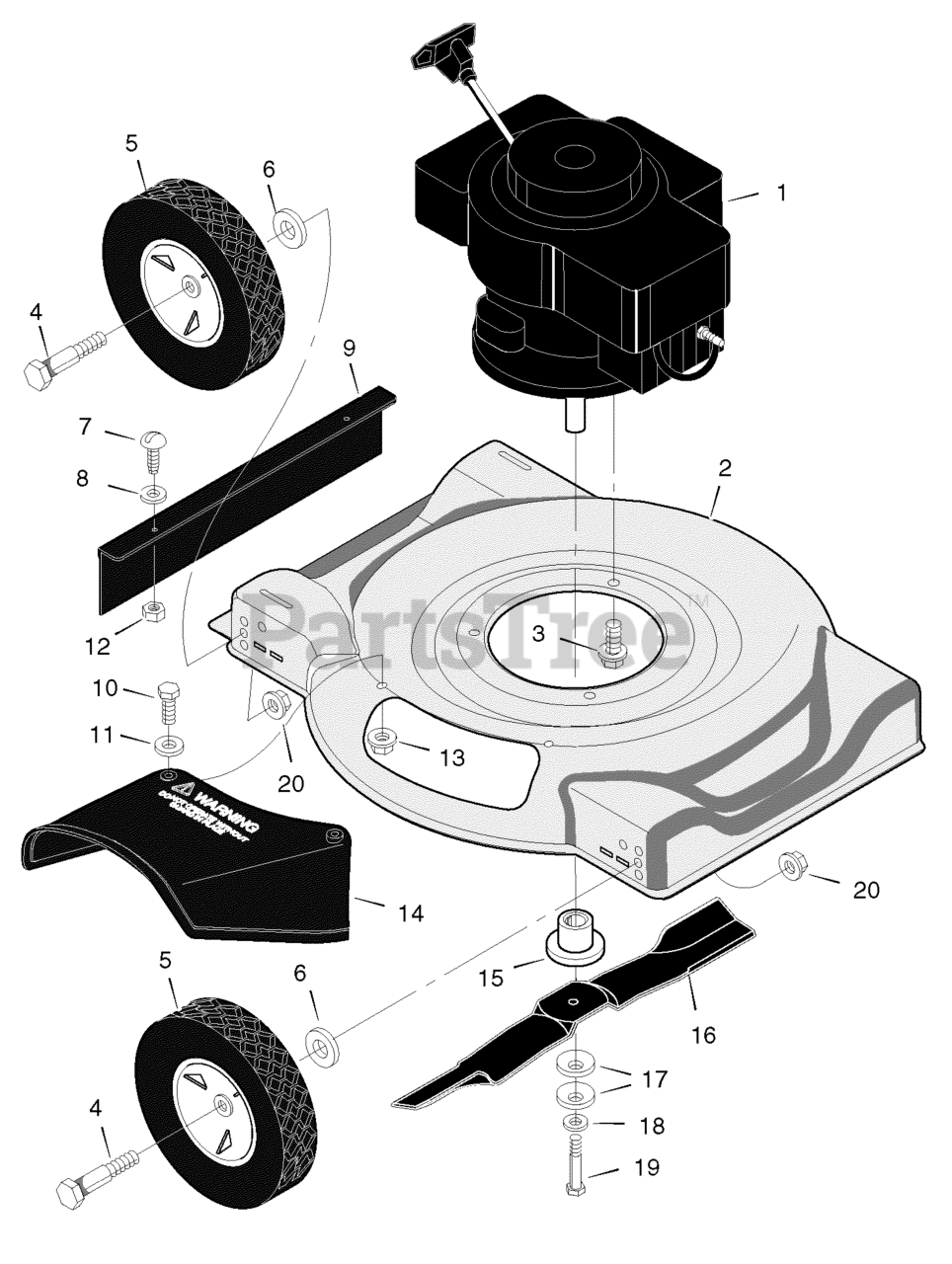

Mower Housing Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 7950007

Housing

$364.99

$

Usually ships in 2-12 days

0

3

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

4

Murray 009X10

Bolt, Axle

$

$

Not available

5

Murray 20270

Wheel and Tire

$

$

Not available

6

Murray 845

Washer

$1.49

$

Usually ships in 2-12 days

0

7

Murray 004X21

Screw
(Superseded to 004X21MA)

$3.99

$

Usually ships in 2-12 days

0

8

Murray 017X38 Z

Washer

$

$

Currently unavailable

9

Murray 671912

Deflector, Rear

$14.99

$

In Stock, only 2 left!

0

10

Murray 01X121

Bolt

$

$

Not available

11

Murray 017X37

Washer

$4.49

$

In Stock, Qty 20+

0

12

Murray 15X102

Nut

$3.99

$

Usually ships in 2-12 days

0

13

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

14

Murray 671929

Deflector, Chute

$27.99

$

Usually ships in 2-12 days

0

15

Murray 71056

Blade Adapter

$

$

Not available

16

Murray 042785E701

Blade 20"

$23.99

$

Usually ships in 2-12 days

0

17

Murray 17X137

Washer, Blade

$5.49

$

Usually ships in 2-12 days

0

18

Murray 17X124

Washer

$

$

Not available

19

Murray 01X142

Bolt

$8.49

$

In Stock, only 2 left!

0

20

Murray 015X68

Locknut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

?

Murray 672733

Loose Parts Hardware Bag

$22.99

$

In Stock, only 1 left!

0

--

Murray F-040406L

Book, Instruction

$

$

Currently unavailable
