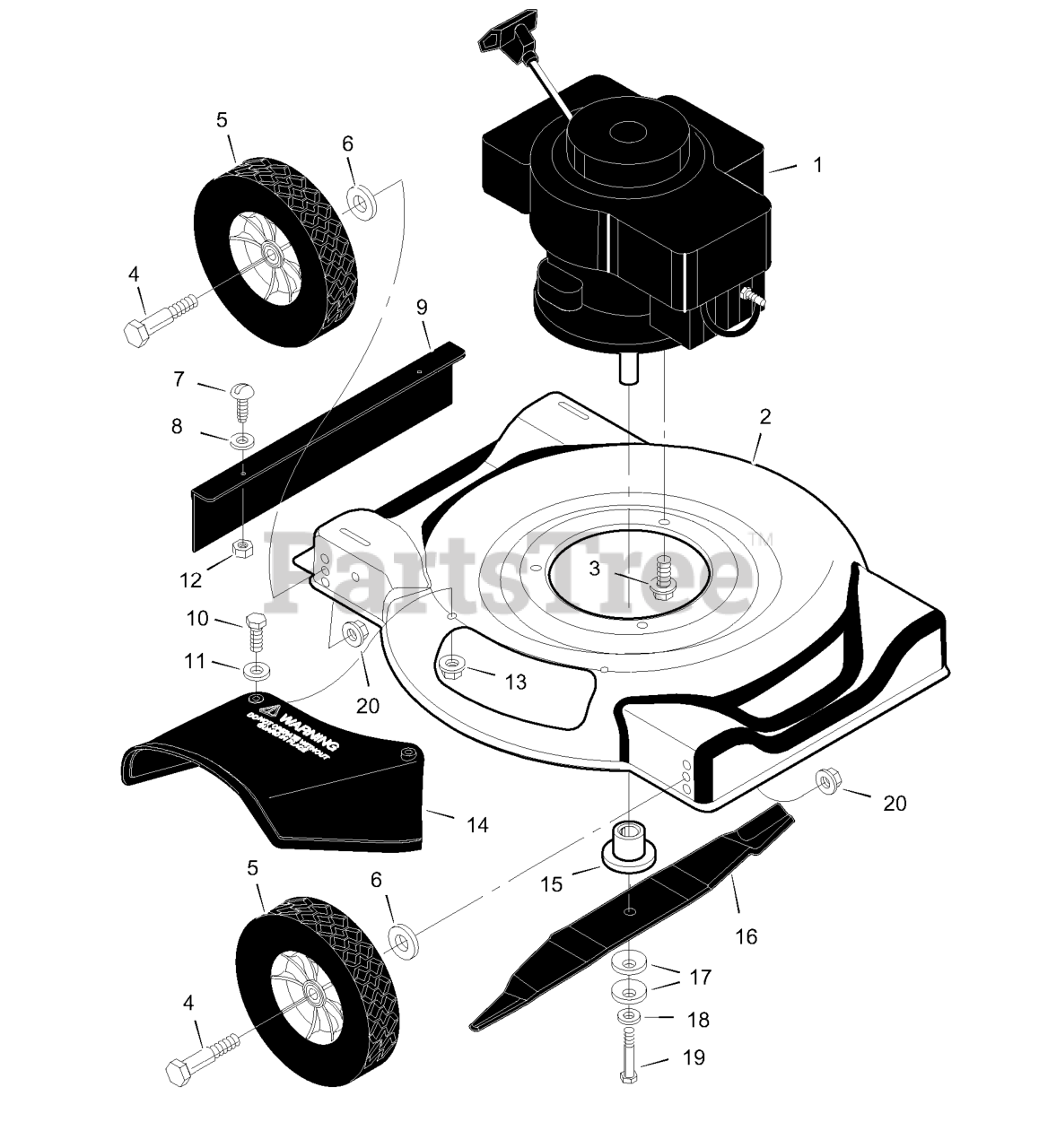

20103x35B - Briggs & Stratton 20" Walk-Behind Mower (1999) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title
1

Engine

$

$

Not available

2

Murray 776006

Housing

$

$

Not available

3

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

4

Murray 009X10MA

Bolt, Axle

$

$

Not available

5

Murray 020270MA

Wheel and Tire
(Superseded to 336546MA)

$

$

Not available

6

$

$

Currently unavailable

7

$3.99

$

Usually ships in 2-12 days

0

8

$

$

Currently unavailable

9

Murray 671912MA

Deflector, Rear

$14.99

$

In Stock, only 2 left!

0

10

$

$

Not available

11

Murray 017X37MA

Washer
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

$3.99

$

Usually ships in 2-12 days

0

13

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Murray 671929MA

Deflector, Chute

$27.99

$

Usually ships in 2-12 days

0

15

Murray 071056MA

Blade Adapter

$10.99

$

Usually ships in 2-12 days

0

16

Murray 042785E701MA

Blade - 20"

$23.99

$

Usually ships in 2-12 days

0

17

Murray 17X137MA

Washer, Blade

$5.49

$

Usually ships in 2-12 days

0

18

$4.49

$

Usually ships in 2-12 days

0

19

$8.49

$

In Stock, only 2 left!

0

20

Murray 015X68MA

Locknut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

--

Murray F-99428

Book, Instruction

$

$

Currently unavailable
