20103 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

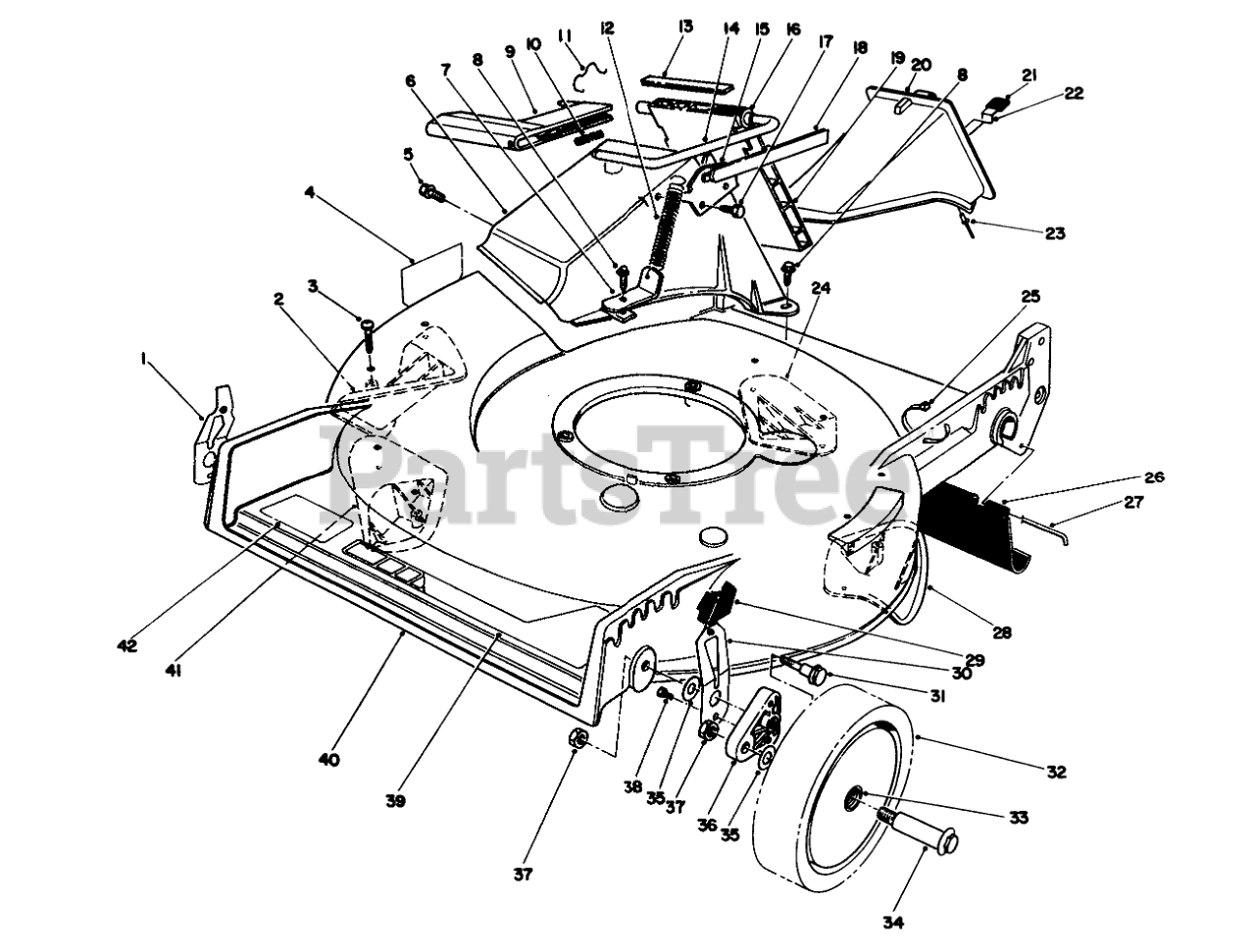

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

2

Toro 76-2130

KICKER

$29.99

$

Usually ships in 3-6 days

0

3

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

4

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

5

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

6

Toro 46-3501

Tunnel-Discharge
(Superseded to 82-9151)

$192.99

$

Usually ships in 3-6 days

0

7

Toro 80-3780

Bracket-Spring
(Superseded to 71-9350)

$14.99

$

Usually ships in 3-6 days

0

8

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9

Toro 46-3520

Handle-Door

$

$

Not available

10

Toro 46-7060

Spring

$

$

Not available

11

Toro 47-5840

DOOR RET SPRING

$

$

Not available

12

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

13

Toro 46-6821

Cover-Door

$

$

Not available

14

Toro 76-4580

Rod-Door

$

$

Not available

15

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

16

Toro 23-0880

BUSHING-NYLON

$

$

Not available

17

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

18

Toro 49-4170

Cover-Handle

$

$

Not available

19

Toro 46-3511

Door-Discharge
(Superseded to 77-0200)

$

$

Not available

20

Toro 77-0500

Discharge Plug Assembly (Incl. Ref. #21-23)

$75.99

$

Usually ships in 3-6 days

0

21

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

22

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

23

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

24

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

25

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0

26

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

27

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

28

Toro 76-2140

KICKER

$29.99

$

Usually ships in 3-6 days

0

29

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

30

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

31

Toro 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, only 2 left!

0

32

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #33)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

33

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

34

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

35

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

36

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

37

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

38

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

39

Toro 76-1950

DECAL - DECK

$19.99

$

Usually ships in 3-6 days

0

40

Toro 14-0749

Housing Assembly
(Superseded to 16-1579)

$1078.99

$

Usually ships in 3-6 days

0

41

Toro 76-2120

KICKER

$29.99

$

In Stock, only 1 left!

0

42

Toro 71.0600

Decal-Toro

$

$

Currently unavailable

Toro 77-0200

Discharge Door Assembly (Incl. Ref. #9, 10, 13, 14, 16, 18, & 19)

$

$

Not available
