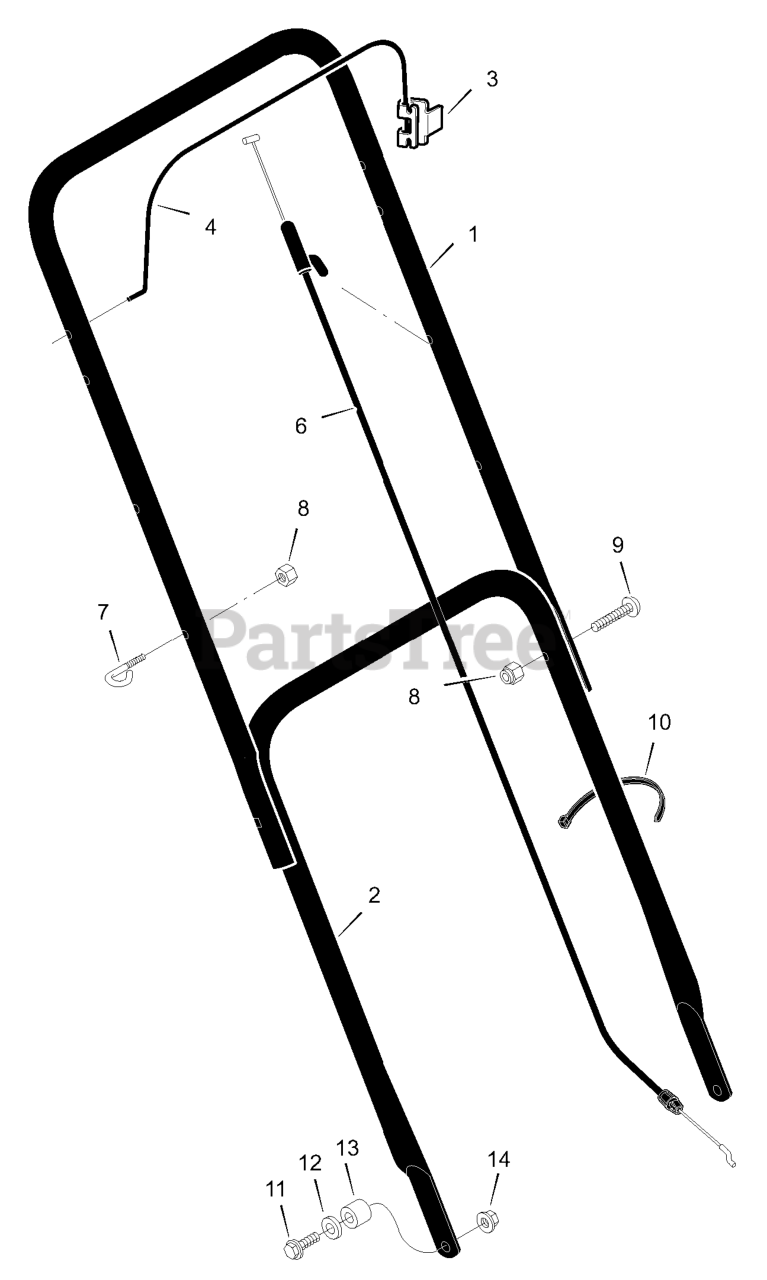

20101x50A - Murray 20" Walk-Behind Mower (1999) Handle Assembly Parts Diagram

20" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Murray 672665E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 671946E724

Handle, Lower (Gray)

$

$

Currently unavailable

3

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

4

Murray 671924E700

Lever, Stop

$

$

Not available

6

Murray 672556MA

Engine Stop Cable

$24.99

$

Usually ships in 2-12 days

0

7

Murray 043956MA

GUIDE, ROPE

$

$

Not available

8

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

9

Murray 03X136MA

Screw

$3.49

$

Usually ships in 2-12 days

0

10

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

11

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

12

Murray 010851 Z

Washer

$

$

Currently unavailable

13

Murray 671914MA

Spacer

$7.49

$

Usually ships in 2-12 days

0

14

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
