201010x24A - Briggs & Stratton 20" Walk-Behind Mower (2004) (Meijer) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

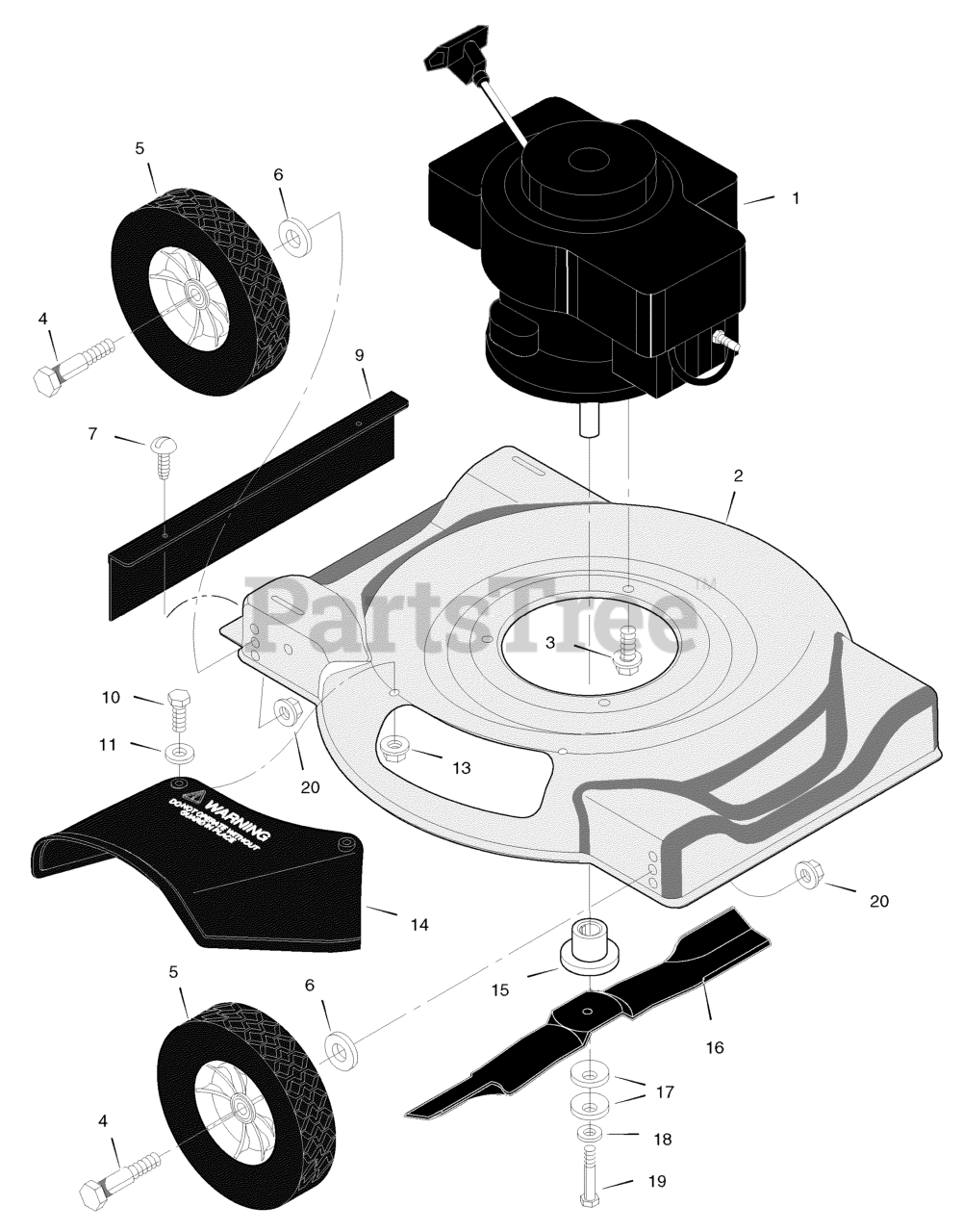

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 7950007

Housing

$364.99

$

Usually ships in 2-12 days

0

3

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

4

Murray 009X10

Bolt, Axle

$

$

Not available

5

Murray 20270

Wheel and Tire

$

$

Not available

6

Murray 845

Washer

$1.49

$

Usually ships in 2-12 days

0

7

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

9

Murray 671912

Deflector, Rear

$14.99

$

In Stock, only 2 left!

0

10

Murray 01X121

Bolt

$

$

Not available

11

Murray 017X37

Washer

$4.49

$

In Stock, Qty 20+

0

13

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

14

Murray 671929

Deflector, Chute

$27.99

$

Usually ships in 2-12 days

0

15

Murray 671056

Blade Adapter

$

$

Currently unavailable

16

Murray 642785E701

Blade 20"

$

$

Currently unavailable

17

Murray 17X137

Washer, Blade

$5.49

$

Usually ships in 2-12 days

0

18

Murray 17X124

Washer

$

$

Not available

19

Murray 01X142

Bolt

$8.49

$

In Stock, only 2 left!

0

20

Murray 015X68

Locknut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

?

Murray 672733

Loose Parts Hardware Bag

$22.99

$

In Stock, only 1 left!

0

?

Murray 44X6458

Decal, Cut Finger

$10.99

$

Usually ships in 2-12 days

0

?

Murray 44X7329

Decal, Warning Install Chute

$8.99

$

Usually ships in 2-12 days

0

?

Murray 48X405

Decal, Warning

$56.99

$

Usually ships in 2-12 days

0

--

Murray F-040406L

Book, Instruction

$

$

Currently unavailable
