20101 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

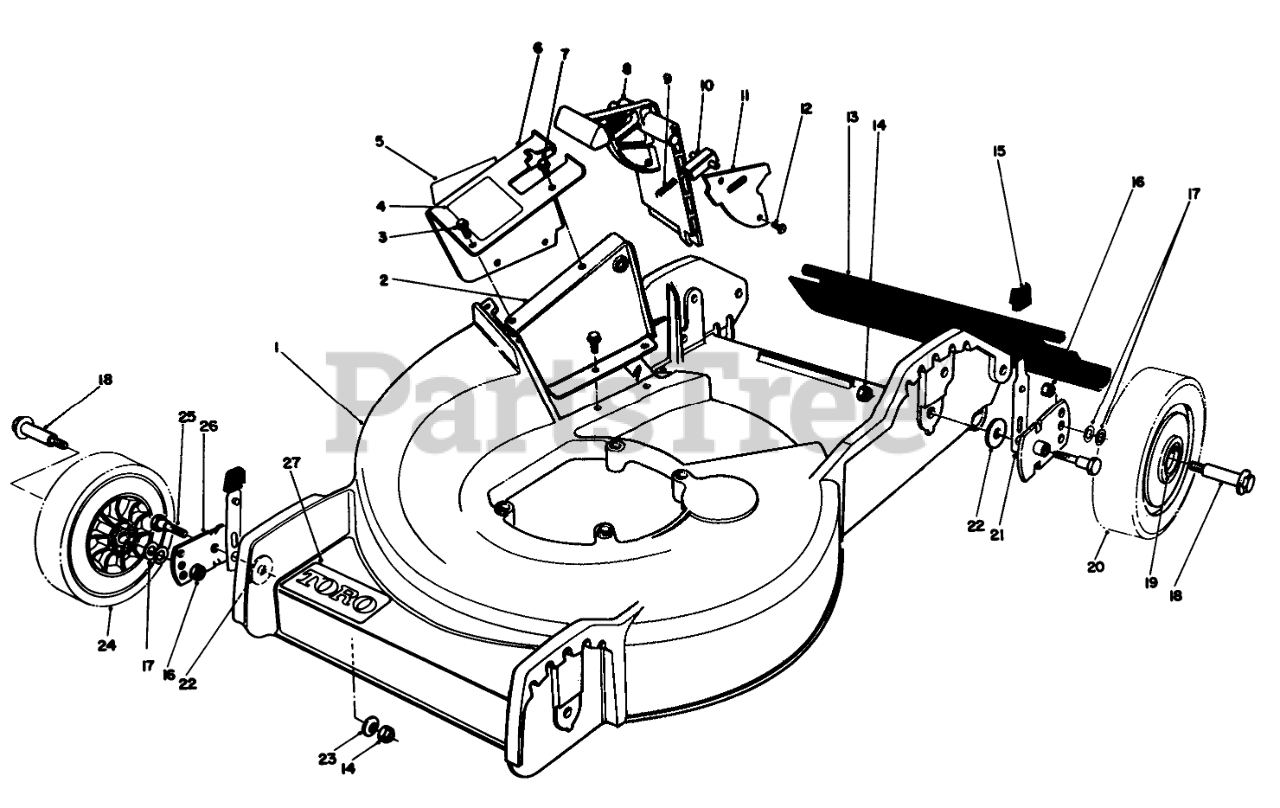

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-1089

HSG & CARTON

$1078.99

$

Usually ships in 3-6 days

0

2

Toro 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

4

Toro 71-3410

DECAL - CAUTION

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

6

Toro 11-6839

Tunnel-Outer (Incl. Ref. #4 & 5)
(Superseded to 13-5839)

$

$

Not available

7

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

8

Toro 33-0411

Door-Mulching
(Superseded to 33-0412)

$

$

Not available

9

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

10

Toro 47-5550

Door Latch
(Superseded to 47-5551)

$

$

Not available

11

Toro 33-0441

DOOR COVER

$14.99

$

Usually ships in 3-6 days

0

12

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

13

Toro 33-2380

SHIELD - TRAILING

$69.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

16

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

17

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

20

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #19)

$

$

Not available

21

Toro 25-8000

SPRING ARM ASM

$

$

Not available

22

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

23

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

24

Toro 27-6210

Wheel & Tire Assembly (Incl. Ref. #19)

$

$

Not available

25

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

26

Toro 33-4400

Pivot Arm Assembly

$

$

Currently unavailable

27

Toro 71-0600

DECAL

$15.99

$

Usually ships in 3-6 days

0
