20101 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

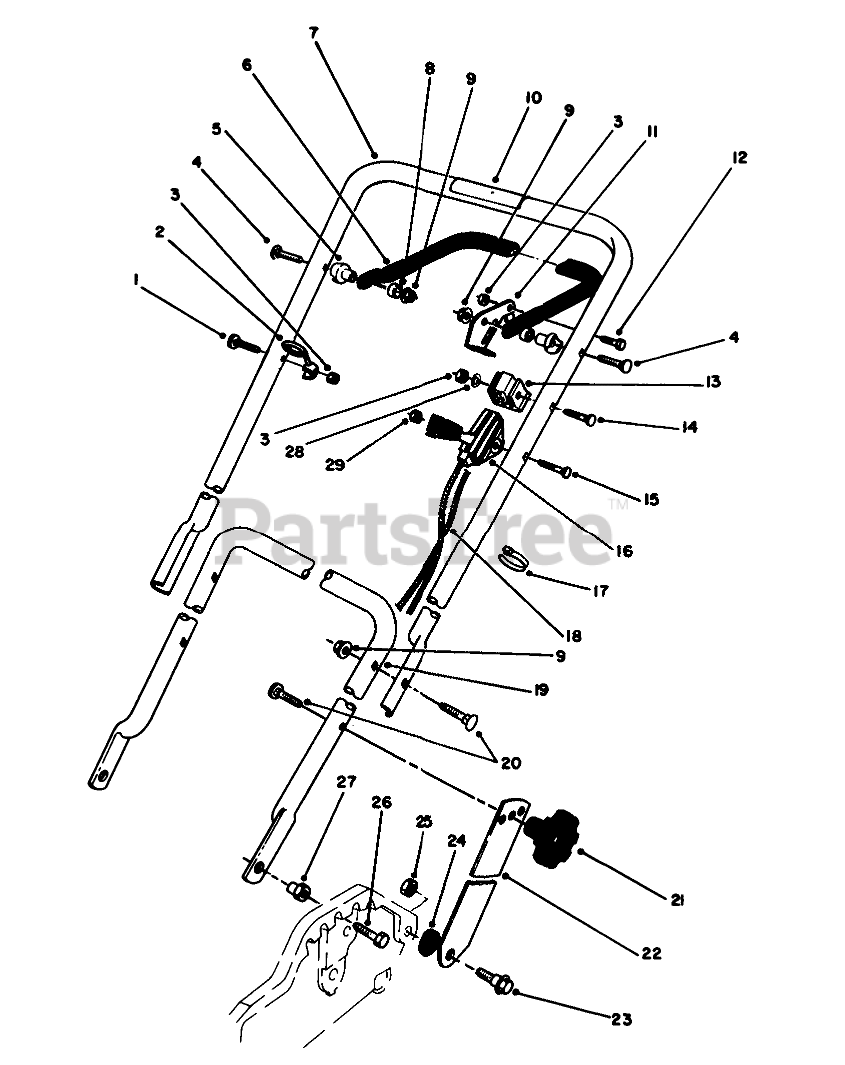

HANDLE & THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

2

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

5

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

6

Toro 49-4221

Bar-Control

$

$

Not available

7

Toro 14-3719

Handle-Upper (Incl. Ref. #10)

$

$

Not available

8

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

10

Toro 56-6280

WARNING DECAL

$

$

Not available

11

Toro 66-5350

LEVER-CONTROL

$15.99

$

Usually ships in 3-6 days

0

12

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

14

Toro 46-6434

HANDLE SCREW

$

$

Not available

15

Toro 46-6430

SCREW-HANDLE

$12.99

$

Usually ships in 3-6 days

0

16

Toro 76-3248

THROTTLE CONTROL

$

$

Not available

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 76-4334

BRAKE CABLE

$68.99

$

Usually ships in 3-6 days

0

19

Toro 50-9920

LOWER HANDLE

$

$

Not available

20

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

21

$17.99

$

In Stock, only 2 left!

0

22

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

23

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

24

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
