20101 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

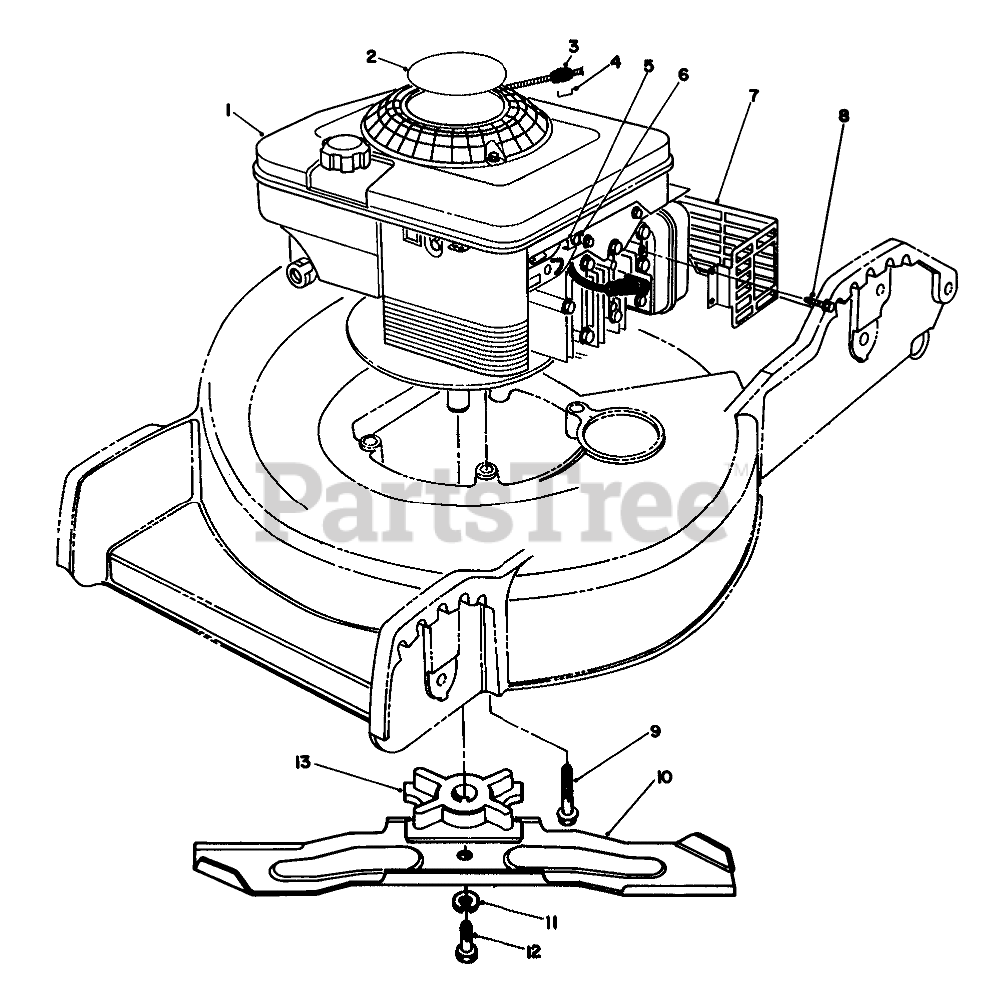

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

2

Toro 80-2860

DECAL - ENGINE

$

$

Not available

3

Stop-Rope

$

$

Not available

4

Staple

$

$

Not available

5

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

6

Toro 2210-313

Screw
(Superseded to 86-7990)

$3.49

$

Usually ships in 3-6 days

0

7

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

8

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

9

Toro 32144-106

3/8-16X2 TAPTITE HEX HD

$

$

Not available

10

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

Usually ships in 3-6 days

0

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

12

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

13

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0
