2010 - Snapper Zero-Turn Mower, Unistat Drive, 20hp Elect. Component Parts 1810 & 2010 Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

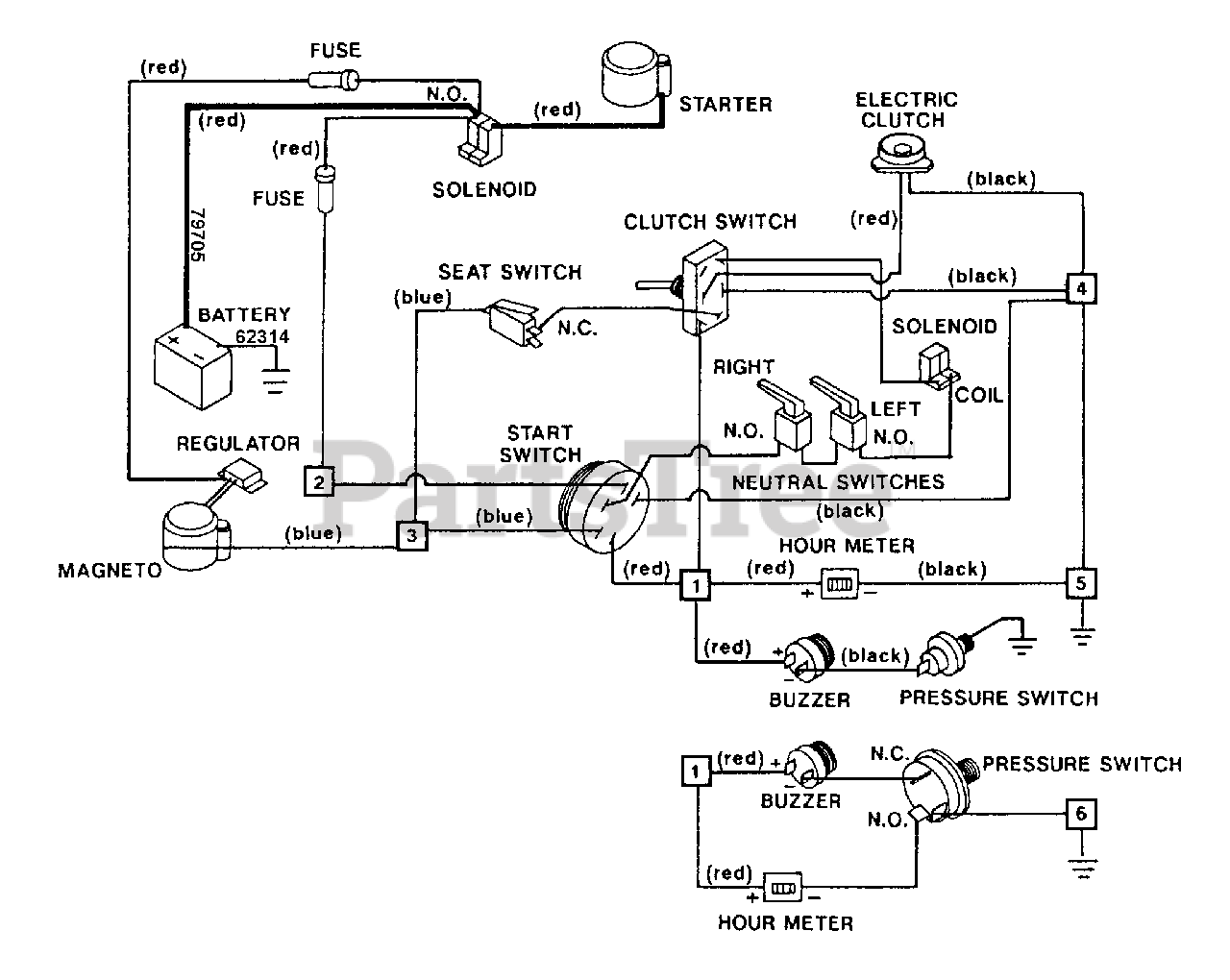

Elect. Component Parts 1810 & 2010 Parts Diagram

  • Title

?1

Snapper 7079482

BATTERY

$

$

Not available

?2

Snapper 7062039

CAP, BATTERY POSITIVE TERMINAL RED

$

$

Currently unavailable

?3

Snapper 7079956

STRAP, BATTERY TIE DOWN

$

$

Currently unavailable

?4

Snapper 7060788

HOUR METER

Note: Was 79203

$

$

Not available

?5

Snapper 7079193

SOLENOID
(Superseded to 7079193YP)

Note: Was 79793

$42.99

$

Usually ships in 2-12 days

0

?6

Snapper 7026343

START SWITCH
(Superseded to 7026343SM)

Note: Was 79201

$38.99

$

In Stock, Qty 17

0

?7

Snapper 7079194

SWITCH, SPDT 15A HINGED LEVER (SEAT)

$

$

Not available

?8

Snapper 7079208

BUZZER
(Superseded to 7079208YP)

$109.99

$

Usually ships in 2-12 days

0

?9

Snapper 7079342

CLUTCH SWITCH
(Superseded to 7079342YP)

$38.99

$

In Stock, only 1 left!

0

?10

Snapper 7079446

ELECTIC CLUTCH
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

?11

Snapper 7079204

INSULATOR COVER, CLUTCH CONNECTOR
(Superseded to 7079204YP)

$2.99

$

Usually ships in 2-12 days

0

Snapper 7079205

TERMINAL PACKARD CRIMP
(Superseded to 7079205YP)

$3.99

$

In Stock, only 1 left!

0

?12

Snapper 7079935

SWITCH, N.O. DELTA (NEUTRAL)

$

$

Not available

?13

Snapper 7079206

FUSEHOLDER (INLINE)
(Superseded to 7079206YP)

$18.99

$

In Stock, only 1 left!

0

?14

Snapper 7079546

PRESSURE SWITCH, 3 TERMINAL (ALTERNATE 1 TERMINAL PRESSURE SWITCH) (AVAILABLE FROM KOHLER)

$

$

Currently unavailable

?15

Snapper 7079557

BOOT, PRESSURE SWITCH

$

$

Currently unavailable

?16

Snapper 7079192

TERMINAL STRIP, 6 PT.
(Superseded to 7079192YP)

$15.99

$

Usually ships in 2-12 days

0

79705

Snapper 7079705

WIRE ASSY, SOLENOID

$

$

Currently unavailable

62314

Snapper 7062314

WIRE ASSY, 24", BLACK
(Superseded to 7062314YP)

$11.99

$

In Stock, only 1 left!

0
