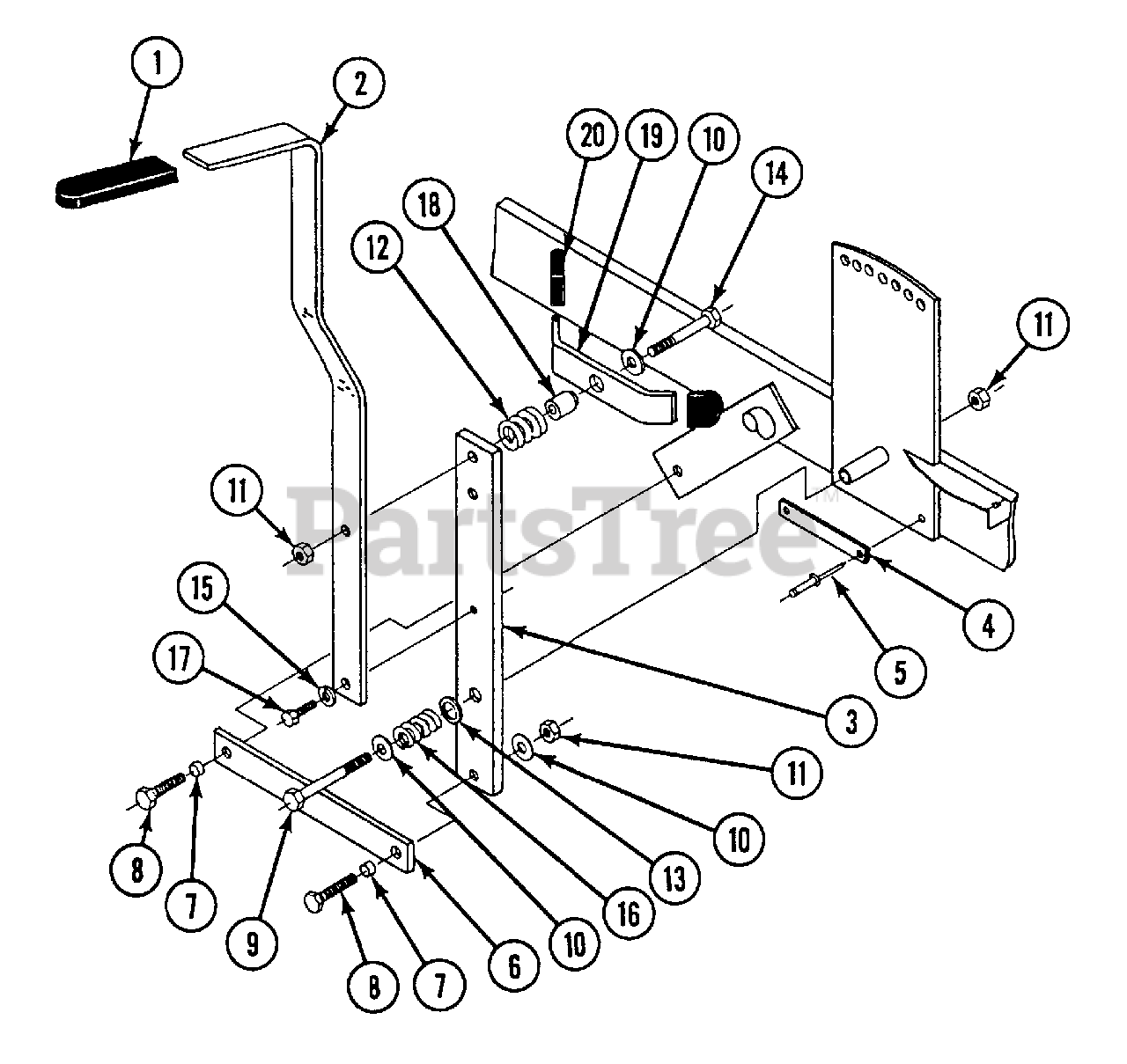

2010 - Snapper Zero-Turn Mower, Unistat Drive, 20hp Deck Lift Parts, 1810 & 2010 Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

Deck Lift Parts, 1810 & 2010 Parts Diagram

  • Title
1

Snapper 7079213

GRIP, VINYL, 1/4 X 1
(Superseded to 7079213YP)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 7079026

HANDLE, TOP DECK LIFT
(Superseded to 7079026YP)

$19.99

$

Usually ships in 2-12 days

0

3

Snapper 7079972

DECK HANDLE WELDMENT

$

$

Currently unavailable

4

Snapper 7079014

DECK LATCH SLIDE (EARLIER MODELS)

$

$

Currently unavailable

5

Snapper 7079271

RIVET, BLIND POP (EARLIER MODELS)

$

$

Currently unavailable

6

Snapper 7079982

DECK LIFT CONNECTOR

$

$

Currently unavailable

7

Snapper 7079013

BUSHING, CONNECTOR

$

$

Not available

8

Snapper 7091328

CAPSCREW, HX HD: 3/8-16 X 1-1/4 GR 5
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7091557

CAPSCREW, HX HD: 3/8-16 X 2-3/4 GR 5
(Superseded to 703133)

Note: Was 79313

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7090517

FLAT WASHER: 3/8
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

11

Snapper 7091299

NUT, NYLOC: 3/8-16
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7079230

SPRING, COMPRESSION

$

$

Currently unavailable

13

Snapper 7079105

WASHER, 8 GA: .656 I.D. X 1 O.D.

$

$

Currently unavailable

14

Snapper 7079270

CAPSCREW, HX HD: 3/8-16 X 2 GR 5

$

$

Currently unavailable

15

Snapper 7079267

LOCKWASHER, SPLT SPRNG: 5/16
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7079212

SPRING, COMPRESSION
(Superseded to 7079212YP)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 7076934

CAPSCREW, HX HD: 5/16-18 X 3/4 GR 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7079129

LOCK STAND

$

$

Currently unavailable

19

Snapper 7079128

LOCK ARM

$

$

Not available

20

Snapper 7079130

GRIP, LOCK

$

$

Currently unavailable
