200Z (ZT 2246) (2691032-01) - Snapper 46" Zero-Turn Mower, 22hp Decals Group Parts Diagram

46" Zero-Turn Mower, 22hp

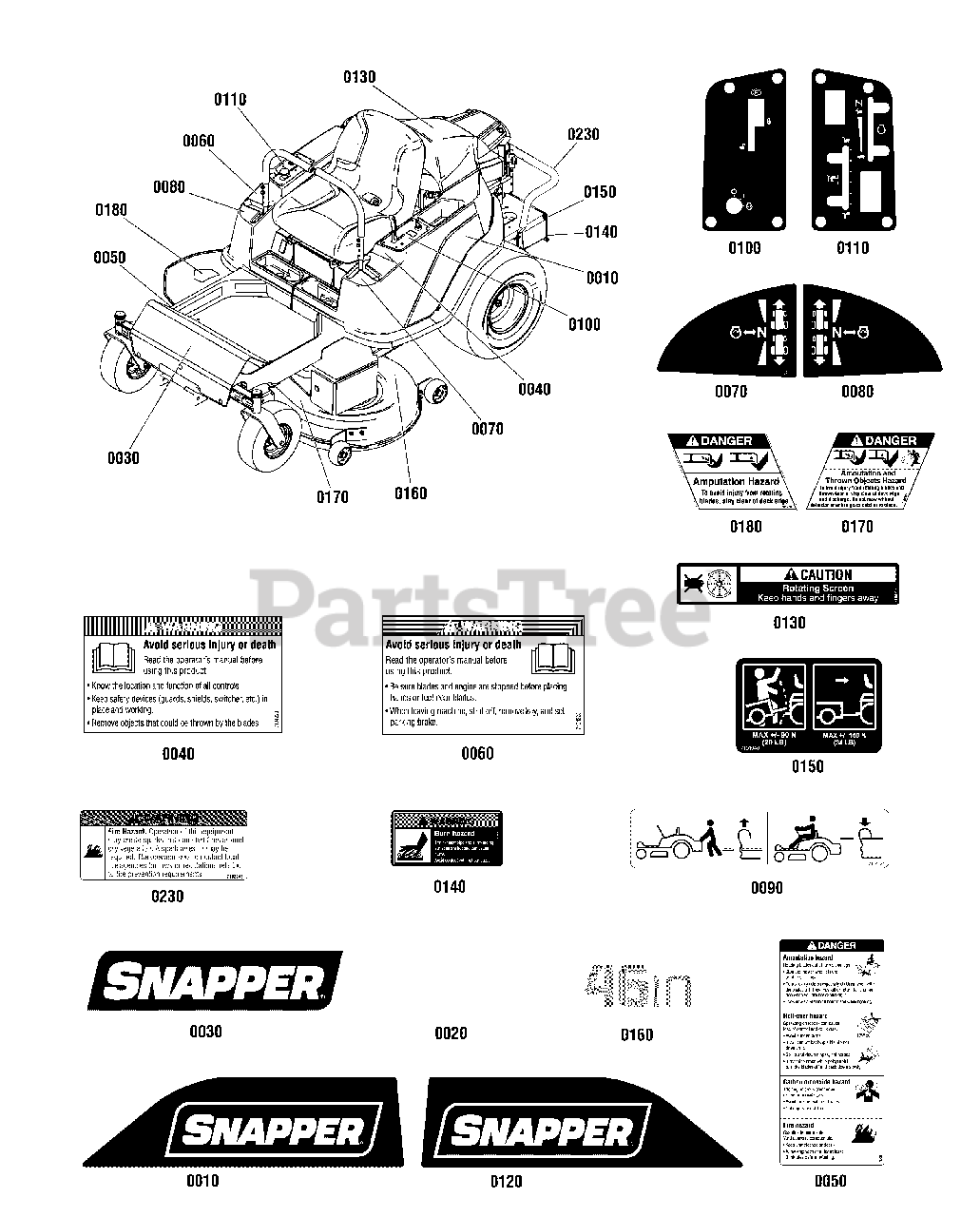

Decals Group Parts Diagram

  • Title

0010

Snapper 1753405

DECAL, Fender, Snapper, LH 285Z
(Superseded to 1753405YP)

$14.99

$

Usually ships in 2-12 days

0

0020

Snapper 1754383

DECAL, 200Z

$

$

Currently unavailable

0030

Snapper 7104148

DECAL, Logo, Snapper, 7.88"
(Superseded to 7104148YP)

$33.99

$

In Stock, only 1 left!

0

0040

Snapper 7104223

DECAL, Warning, English, LH, 285Z
(Superseded to 7104223YP)

$13.99

$

Usually ships in 2-12 days

0

0050

Snapper 7104224

DECAL, Danger, English, 285Z
(Superseded to 7104224YP)

$18.99

$

Usually ships in 2-12 days

0

0060

Snapper 7104225

DECAL, Warning, English, RH, 285Z
(Superseded to 7104225YP)

$13.99

$

Usually ships in 2-12 days

0

0070

Snapper 7104226

DECAL, Handle, Ground Speed, LH, 285Z
(Superseded to 7104226YP)

$12.99

$

Usually ships in 2-12 days

0

0080

Snapper 7104227

DECAL, Handle, Ground Speed, RH, 285Z
(Superseded to 7104227YP)

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 7104231

DECAL, Release, Transaxle, 285Z
(Superseded to 7104231YP)

$11.99

$

Usually ships in 2-12 days

0

0100

Snapper 7104232

DECAL, Panel, Control, LH 285Z
(Superseded to 7104232YP)

$31.99

$

Usually ships in 2-12 days

0

0110

Snapper 7104233

DECAL, Panel, Control, RH 285Z
(Superseded to 7104233YP)

$29.99

$

Usually ships in 2-12 days

0

0120

Snapper 1753406

DECAL, Fender, Snapper, RH 285Z
(Superseded to 1753406YP)

$12.99

$

Usually ships in 2-12 days

0

0130

Snapper 7104393

DECAL, Caution, Rotating Screen
(Superseded to 7104393YP)

$14.99

$

Usually ships in 2-12 days

0

0140

Snapper 1734273

DECAL, Warning, Burn Hazard
(Superseded to 1734273SM)

$21.99

$

Usually ships in 2-12 days

0

0150

Snapper 7101940

DECAL, Weight Limitation
(Superseded to 7101940YP)

$10.99

$

Usually ships in 2-12 days

0

0160

Snapper 1752832

DECAL, 46" Mower
(Superseded to 1752832YP)

$6.49

$

Usually ships in 2-12 days

0

0170

Snapper 1704277

DECAL, Danger Do Not Operate w/o Deflector
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

0180

Snapper 1704276

DECAL, Danger Do Not Put Hand/Feet In Mower
(Superseded to 1704276SM)

$

$

Not available

0200

Snapper 1737836

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/French (set of two, one coated) (Not Shown)
(Superseded to 1737836YP)

$20.99

$

In Stock, only 1 left!

0

0230

Snapper 7102746

DECAL, Spark Arrestor
(Superseded to 7102746YP)

$10.99

$

In Stock, only 1 left!

0
