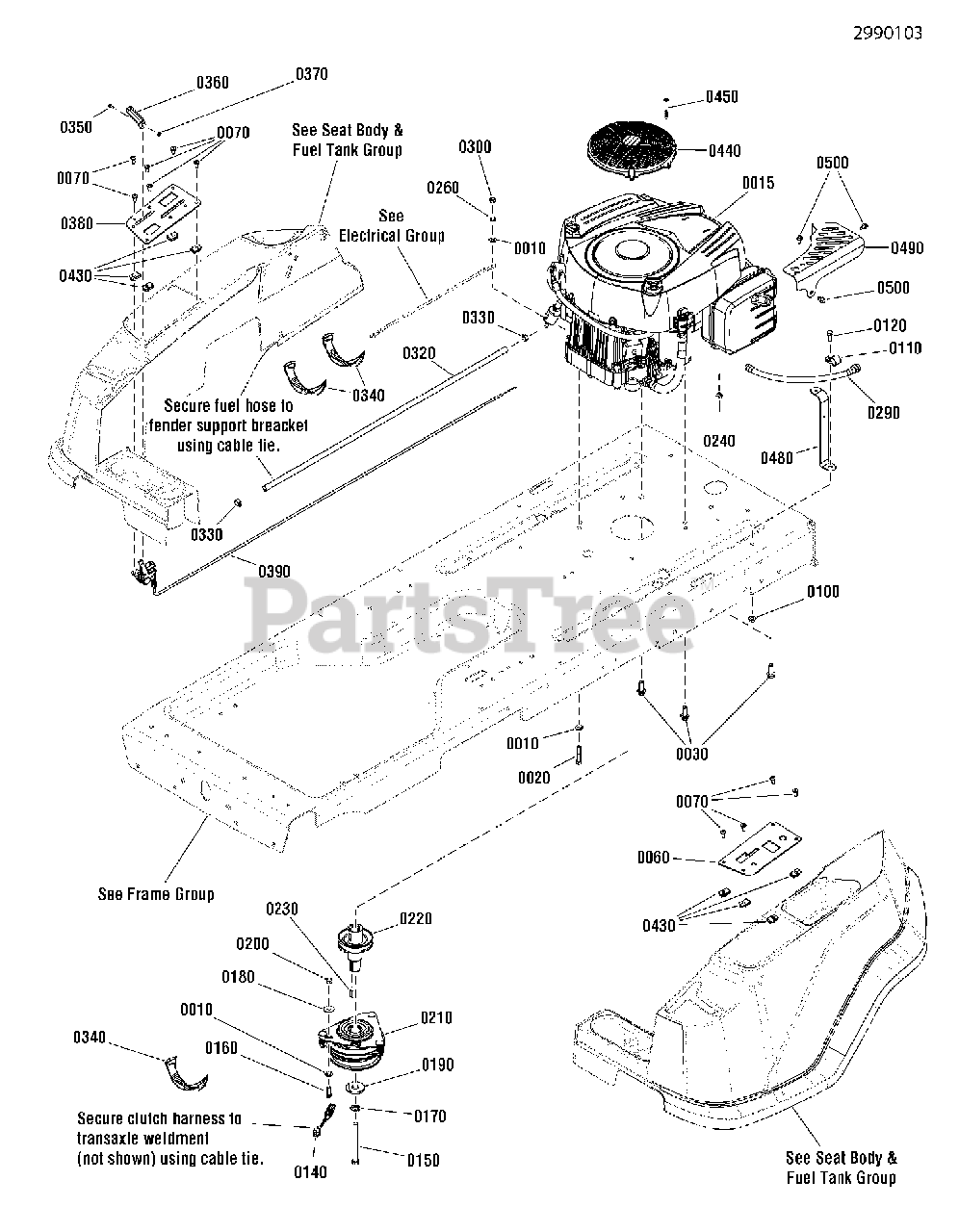

200Z (ZT 2142) (2691031-00) - Snapper 42" Zero-Turn Mower, 21hp Engine Group, B&S 21HP Single w/Exhaust Parts Diagram

42" Zero-Turn Mower, 21hp

Engine Group, B&S 21HP Single w/Exhaust Parts Diagram

  • Title

0010

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0015

Snapper 33M777-0126-G5

* ENGINE, 21HP, B&S Single w'Exhaust (Engine model 33M777-0126-G5)

$

$

Not available

0015

Snapper 33M977-0003-G5

* ENGINE, 21HP, B&S Single w'Exhaust (Engine model 33M977-0003-G5)

$

$

Currently unavailable

0020

Snapper 80002717

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704288)

Note: (Was 7091908)

$4.99

$

Usually ships in 2-12 days

0

0030

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0060

Snapper 7301084BM

PANEL, Control, LH
(Superseded to 7301084BMYP)

$21.99

$

Usually ships in 2-12 days

0

0070

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 80002728

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

Note: (Was 7091601)

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 7900020

HARNESS CLIP, 5/8"
(Superseded to 7900020SM)

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 80002715

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

Note: (Was 7091318)

$3.99

$

In Stock, Qty 9

0

0140

Snapper 1737462

HARNESS, Jumper, 4" Long
(Superseded to 1737462YP)

$9.99

$

In Stock, only 1 left!

0

0150

Snapper 7092130

SCREW, 7/16-20 x 4-1/2" Hex Head Cap, GR 5, YZ
(Superseded to 7092130SM)

$

$

Not available

0160

Snapper 7091904

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5, YZ
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

0170

Snapper 7091301

WASHER, 7/16" Split Lock, YZ
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 7011763

WASHER, Fender, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

0190

Snapper 7029138

WASHER, .468 x 1.50 x .19 Flat, YZ
(Superseded to 704053)

$9.99

$

In Stock, only 1 left!

0

0200

Snapper 80003675

NUT, 5/16-18 Hex Center Lock, GR 5, YZ
(Superseded to 703164)

Note: (Was 7091575)

$3.49

$

In Stock, Qty 19

0

0210

Snapper 1717664

CLUTCH, Ogura JD-11
(Superseded to 1757359)

$290.99

$

In Stock, only 1 left!

0

0220

Snapper 7043343

PULLEY, Engine
(Superseded to 7043343SM)

$114.99

$

In Stock, only 1 left!

0

0230

Snapper 7016755

KEY, 1/4" Square x 3/4"
(Superseded to 7016755YP)

$4.99

$

Usually ships in 2-12 days

0

0240

Snapper 80002727

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

Note: (Was 7091584)

$4.49

$

In Stock, Qty 6

0

0260

Snapper 7091315

WASHER, .5/16" Split Lock, YZ
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0290

Snapper 1726498

HOSE, Oil Drain, .375 ID 16.5 L
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

0300

Snapper 80002725

NUT, 5/16-18 Hex, GR 5, YZ
(Superseded to 7091511SM)

Note: (Was 7091511)

$3.49

$

In Stock, Qty 20+

0

0320

Snapper 7200140

HOSE, Fuel, 1/4" ID x 32"
(Superseded to 7200140YP)

$14.99

$

In Stock, only 1 left!

0

0330

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

Note: (Was 7012222)

$3.49

$

In Stock, Qty 20+

0

0340

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 7091017

SCREW, #8-32 x 3/8" Cross Recess Filister Head, GR 2, BZ
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

0360

Snapper 7103888

KNOB, Throttle, Red
(Superseded to 7103888YP)

$8.49

$

Usually ships in 2-12 days

0

0370

Snapper 7091018

NUT, #8-32 Hex, GR 2B, YZ
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

0380

Snapper 7301093BM

PANEL, Control, RH
(Superseded to 7301093BMYP)

$20.99

$

Usually ships in 2-12 days

0

0390

Snapper 7104695

ASSEMBLY, Throttle, Choke-A-Matic, B&S Single
(Superseded to 7104695YP)

$55.99

$

Usually ships in 2-12 days

0

0430

Snapper 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0440

Snapper 797418

ASSEMBLY, Cover w/B&S Label

$

$

Not available

0450

Snapper 95957

SCREW, Pan Head Thread Rolling
(Superseded to 799359)

$4.49

$

In Stock, only 3 left!

0

0480

Snapper 1754414

BRACKET, Muffler Shield
(Superseded to 1754414BMYP)

$8.49

$

Usually ships in 2-12 days

0

0490

Snapper 1754173

SHIELD, Muffler
(Superseded to 1754173BMYP)

$38.99

$

Usually ships in 2-12 days

0

0500

SCREW, 1/4-20 x 1/2" Hex Washer Head Self-Tap

Note: (Was 1925003)

$

$

Not available
