200Z (ZT 2042) (2691135-00) - Snapper 42" Zero-Turn Mower, 20hp Frame Group, No Footrest, w/o Suspension Parts Diagram

42" Zero-Turn Mower, 20hp

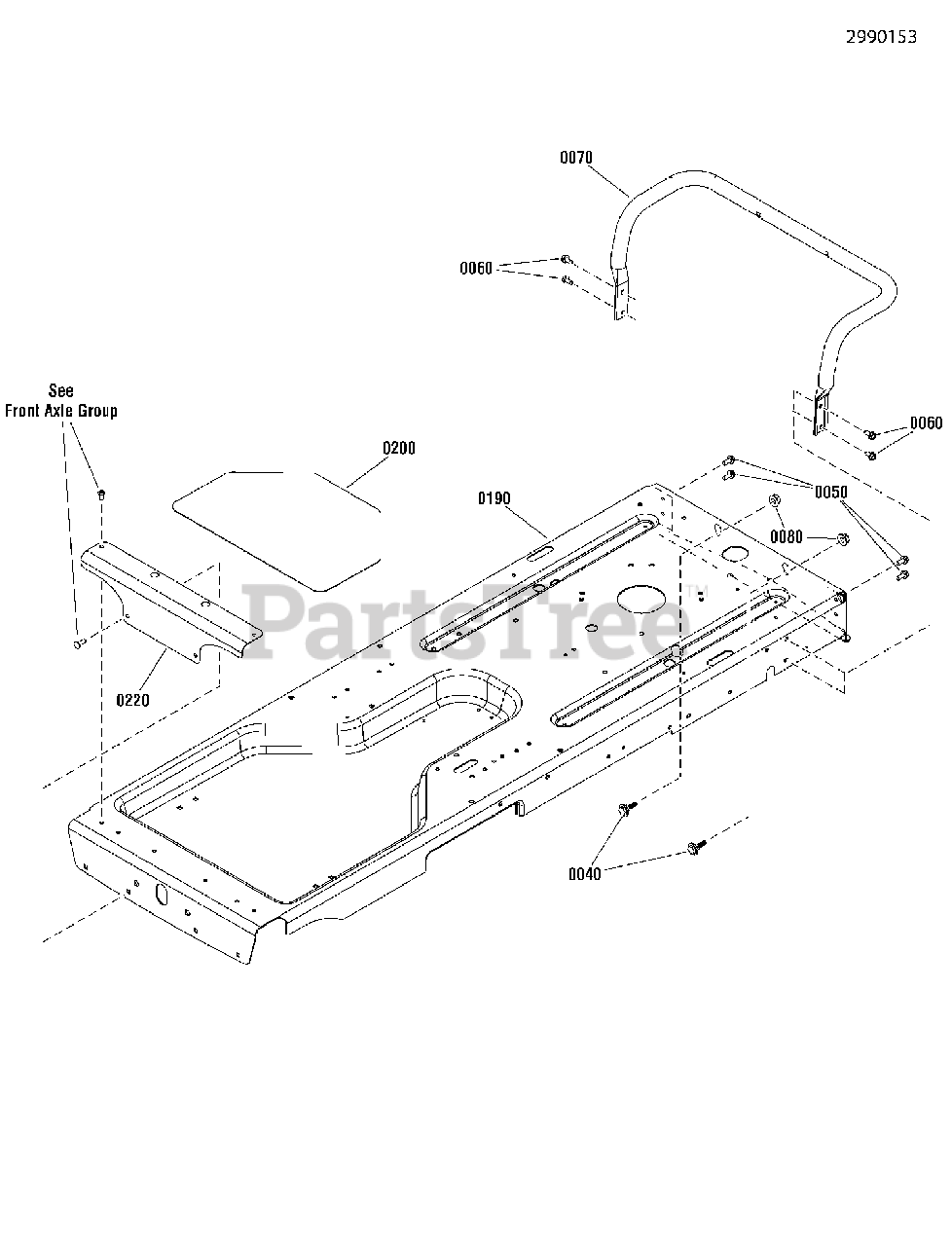

Frame Group, No Footrest, w/o Suspension Parts Diagram

  • Title
0040

Snapper 1716654SM

SHOULDER BOLT, 5/16-18 x 3/4"

$5.49

$

In Stock, only 1 left!

0

0050

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

Note: (Was 7091541 or 80002741)

$4.49

$

In Stock, Qty 20+

0

0060

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

Note: (Was 1664847 or 80002741)

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 1753517BMYP

BUMPER, Lower Tube

$92.99

$

In Stock, only 1 left!

0

0080

Snapper 1927557SM

NUT, 5/16-18 Hex Flange Lock, Large, Black

$4.99

$

Usually ships in 2-12 days

0

0190

Snapper 7301073DYP

FRAME, RZT

$1128.99

$

Usually ships in 2-12 days

0

0200

Snapper 1753039YP

MAT, Floor Pan

$64.99

$

Usually ships in 2-12 days

0

0220

Snapper 1753785DYP

PLATE, Front Brand (Snapper Red)

$36.99

$

Usually ships in 2-12 days

0
