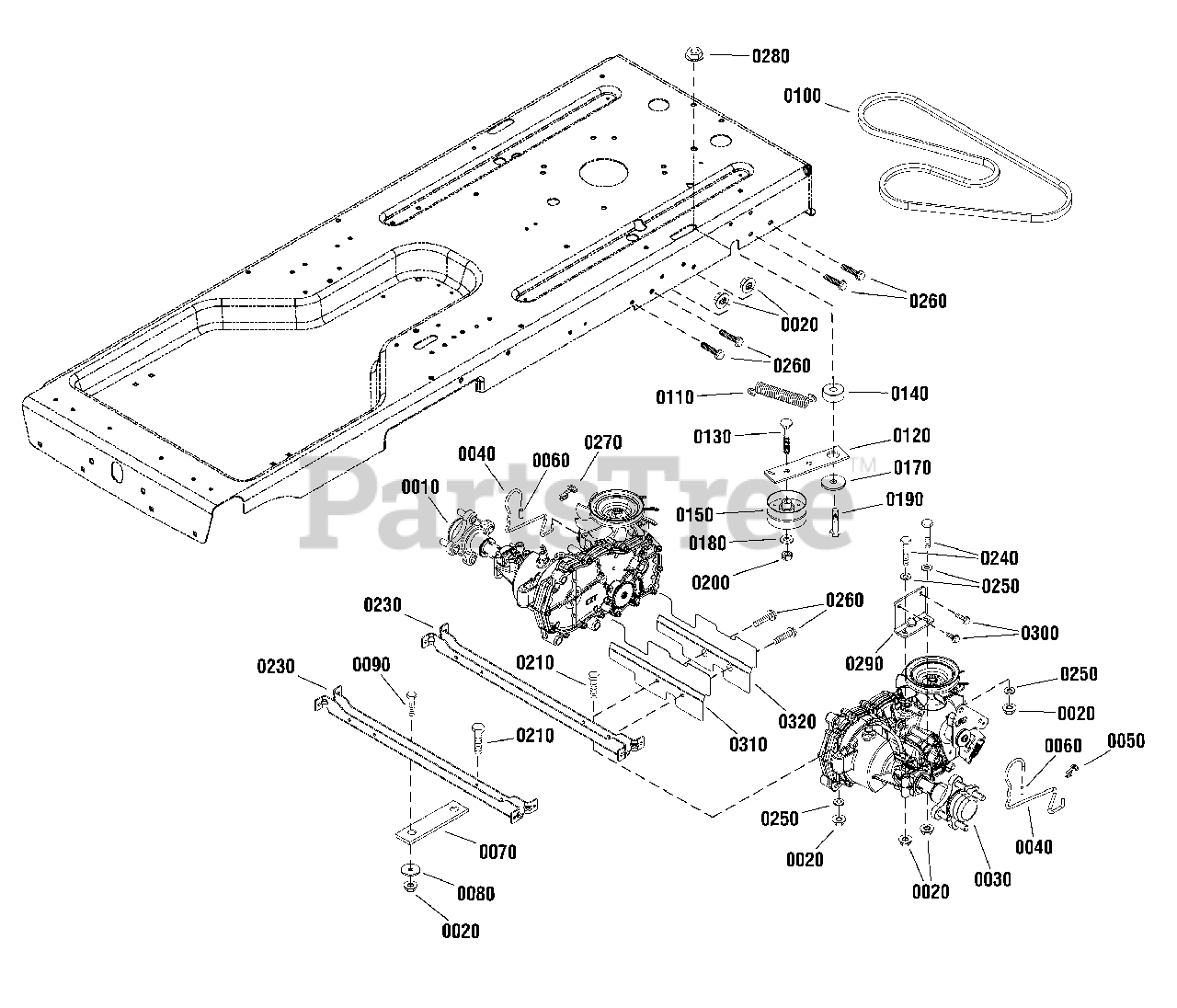

200Z (ZT 1842) (2691136-01) - Snapper 42" Zero-Turn Mower, 18hp Transmission & Bolted Carrier Group Parts Diagram

42" Zero-Turn Mower, 18hp

Transmission & Bolted Carrier Group Parts Diagram

  • Title

0010

Snapper 1756626YP

TRANSAXLE, RH EZT, Hydro-Gear ZC-DUBB-2ADC-1PPX

$649.99

$

Usually ships in 2-12 days

0

0020

Snapper 704067

NUT, 5/16-18, Hex Flange, Center Lock

$3.99

$

In Stock, Qty 20+

0

0030

Snapper 7104656YP

TRANSAXLE, LH EZT, Hydro-Gear ZC-AUBB-2ADB-1DBX

$1171.99

$

Usually ships in 2-12 days

0

0040

Snapper 7103512YP

ROD, Roll Release

$19.99

$

In Stock, only 1 left!

0

0050

Snapper 1725550SM

CLIP, Rod End Clevis LH (for .188 Dia. Rod)

$5.99

$

Usually ships in 2-12 days

0

0060

Snapper 7103537YP

CAP, Vinyl

$3.49

$

Usually ships in 2-12 days

0

0070

Snapper 7104674YP

RUBBER, Anti-Rotation

$

$

Not available

0080

Snapper 7011763SM

WASHER, 5/16" I.D. 1" O.D. Fender

$4.49

$

In Stock, only 4 left!

0

0090

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0100

Snapper 7100102SM

V-BELT, 58" EL, Hydro Drive

$43.99

$

In Stock, Qty 20+

0

0110

Snapper 1756635YP

SPRING, 4.25", .65" OD, 180 Offset Hooks, Black

$8.49

$

In Stock, only 1 left!

0

0120

Snapper 1756634BMYP

ARM, Transaxle Idler

$9.49

$

Usually ships in 2-12 days

0

0130

Snapper 7090990YP

BOLT, 3/8-16X2 GR5 YZ, Carriage
(Superseded to 704278)

$5.49

$

Usually ships in 2-12 days

0

0140

Snapper 1756633YP

SPACER, Idler, 1.75" OD, .515" ID, 1" Shoulder, .89" Thk

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 7100103SM

IDLER, 3.25 OD X .391 ID X 1.63 , Backside

$43.99

$

In Stock, Qty 8

0

0170

Snapper 704668

WASHER, .505 ID X 2.0 OD X .190 Thk, Flat, ZC/CL

$5.49

$

Usually ships in 2-12 days

0

0180

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 18

0

0190

Snapper 704669

SCREW, 1/2-13 X 1.75, GR5, Hex Head, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0200

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0

0210

Snapper 703177

SCREW, 5/16-18 X 2.25, GR5, Zinc/Clear, Hex Head

$3.49

$

Usually ships in 2-12 days

0

0230

Snapper 1756569BMYP

BRACKET, Transaxle Mounting

$

$

Not available

0240

Snapper 703869

SCREW, 3/8-16 X 2.75, Hex Head Cap, G5, Zinc/Clear

$6.49

$

Usually ships in 2-12 days

0

0250

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0260

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0270

Snapper 1717024SM

CLIP, Rod End Clevis RH (for .188 Dia. Rod)

$7.49

$

In Stock, only 2 left!

0

0280

Snapper 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

0290

Snapper 1756690BMYP

BRACKET, Outer Transaxle Mount

$20.99

$

Usually ships in 2-12 days

0

0300

Snapper 703823

BOLT, 5/16-18 x 5/8 Hex Flange lock, GR 5, YZ

$3.99

$

In Stock, Qty 5

0

0310

Snapper 1757514BMYP

SHIELD, Transaxle Heat

$23.99

$

Usually ships in 2-12 days

0

0320

Snapper 1757557YP

SHIELD, Heat Insulation

$19.99

$

Usually ships in 2-12 days

0
