200Z (ZT 1842) (2691136-00) - Snapper 42" Zero-Turn Mower, 18hp Engine Group Parts Diagram

42" Zero-Turn Mower, 18hp

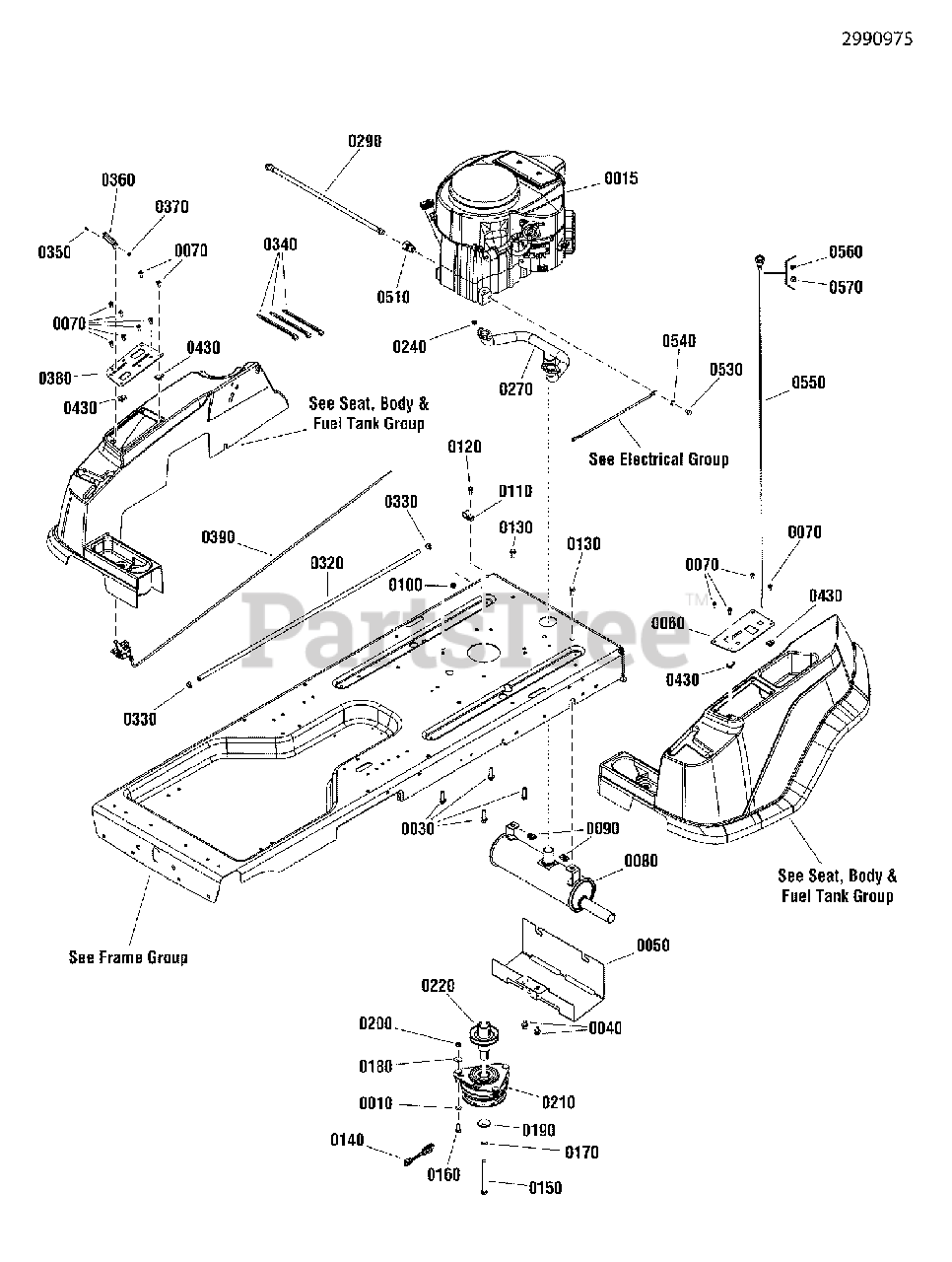

Engine Group Parts Diagram

  • Title

0010

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0015

Snapper FR600V-DS00-S

* Engine, Kawasaki 18 HP, Model # FR600V-DS00-S

$

$

Not available

0030

Snapper 1928727SM

SCREW, 3/8-16 x 1-1/4, Hex Flange Whiz Lock, Black

$3.99

$

In Stock, only 1 left!

0

0040

Snapper 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 7301083BMYP

SHIELD, Muffler Heat

$46.99

$

Usually ships in 2-12 days

0

0060

Snapper 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

0070

Snapper 7090999SM

SCREW, 1/4-20 X 5/8, Pan Head Self Tap Torx, BP
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 7103411YP

MUFFLER, RZT

$231.99

$

Usually ships in 2-12 days

0

0090

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

0100

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 7900020SM

CLIP, Harness, 5/8"

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 1921332SM

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

0130

Snapper 9357MA

SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

0140

Snapper 1737462YP

HARNESS, Jumper, 4" LG

$9.99

$

In Stock, only 1 left!

0

0150

Snapper 7092130SM

SCREW, 7/16-20 X 4-1/2, Hex Head Cap, GR5 YZ

$

$

Not available

0160

Snapper 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 13

0

0170

Snapper 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 7011763SM

WASHER, 5/16" I.D. 1" O.D. Fender

$4.49

$

In Stock, only 4 left!

0

0190

Snapper 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

In Stock, only 1 left!

0

0200

Snapper 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 17

0

0210

Snapper 1757359YP

CLUTCH, Ogura, Integrated Key

$290.99

$

In Stock, only 1 left!

0

0220

Snapper 7043343SM

PULLEY, Engine, 3.5 OD, 1 ID, 4.92 Tall

$114.99

$

In Stock, only 1 left!

0

0240

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

Note: (Was 7091584)

$4.49

$

In Stock, Qty 5

0

0270

Snapper 1755998YP

MANIFOLD, Exhaust, Kawasaki FR600

$

$

Not available

0290

Snapper 5102781YP

HOSE, Oil Drain

$29.99

$

Usually ships in 2-12 days

0

0320

Snapper 1735243SM

HOSE, Fuel, .250 ID, .50 OD, 38" Long

$14.99

$

Usually ships in 2-12 days

0

0330

Snapper 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

Note: (Was 7012222)

$3.49

$

In Stock, Qty 20+

0

0340

Snapper 703586

TIE, .184 WD, 15.0 Long, Self Locking, Black

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 7091017YP

SCREW, #8-32 x 3/8 Cross Recess Filister Head, GR 2, BZ

$3.99

$

In Stock, only 4 left!

0

0360

Snapper 7103888YP

KNOB, Throttle, Red

$8.49

$

Usually ships in 2-12 days

0

0370

Snapper 703460

NUT, #8-32, Hex, Zinc/Clear

$3.99

$

In Stock, Qty 9

0

0380

Snapper 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

0390

Snapper 7104211YP

Control, Throttle, B&S V-Twin 44", 1.15" Throw

$45.99

$

Usually ships in 2-12 days

0

0430

Snapper 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0510

Snapper 5022234SM

ADAPTER, Oil Drain

$15.99

$

Usually ships in 2-12 days

0

0530

Snapper 51754GS

SCREW, M8-1.25 X 12, Hex Head Cap

$2.99

$

Usually ships in 2-12 days

0

0540

Snapper 703460

WASHER, 5/16, External Lock, Zinc/Clear

$3.99

$

In Stock, Qty 9

0

0550

Snapper 5023238YP

CABLE, Choke Control, 56"

$60.99

$

Usually ships in 2-12 days

0

0560

Snapper 703864

WASHER, 3/8 External-Tooth Lock,Type A, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0570

Snapper 703895

NUT, 3/8-24, Hex, GR 5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0
