20099 - Toro Super Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

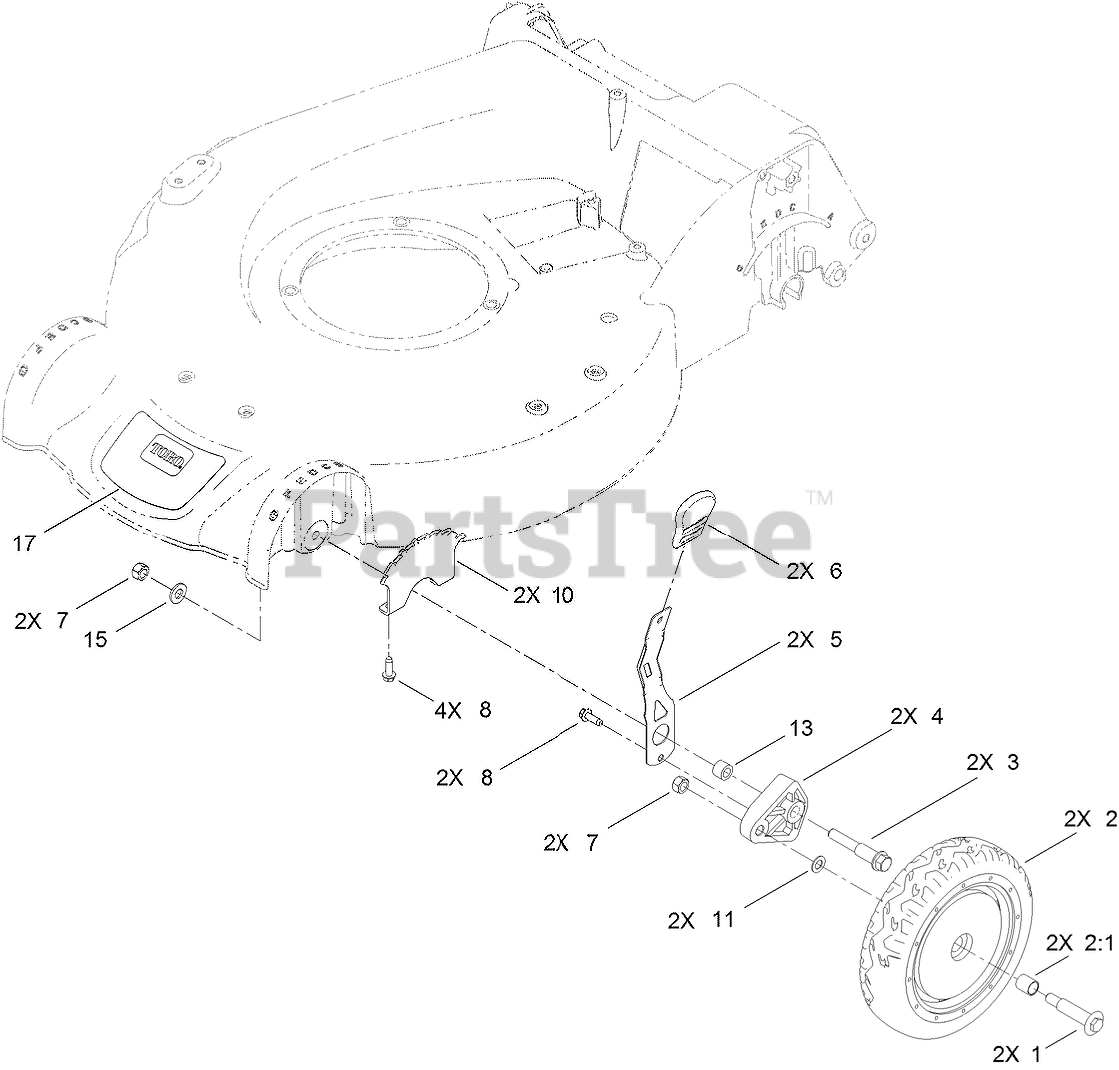

FRONT WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

2

Toro 107-3708

WHEEL ASM

$31.99

$

In Stock, Qty 16

0

2:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

3

Toro 114-3467

SCREW-SHOULDER

$7.99

$

Usually ships in 3-6 days

0

4

Toro 107-7492

ARM-PIVOT

$17.99

$

In Stock, only 2 left!

0

5

Toro 107-7491

ARM-SPRING

$12.99

$

In Stock, only 3 left!

0

6

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

7

Toro 603773

NUT

$2.99

$

Usually ships in 3-6 days

0

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

10

Toro 107-7478

PLATE-HOC

$

$

Not available

11

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

13

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 119-3806

DECAL-HOUSING

$28.99

$

Usually ships in 3-6 days

0
