20095 C - Toro Super Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 126T07-0238-B1 Parts Diagram

Super Recycler Walk-Behind Mower

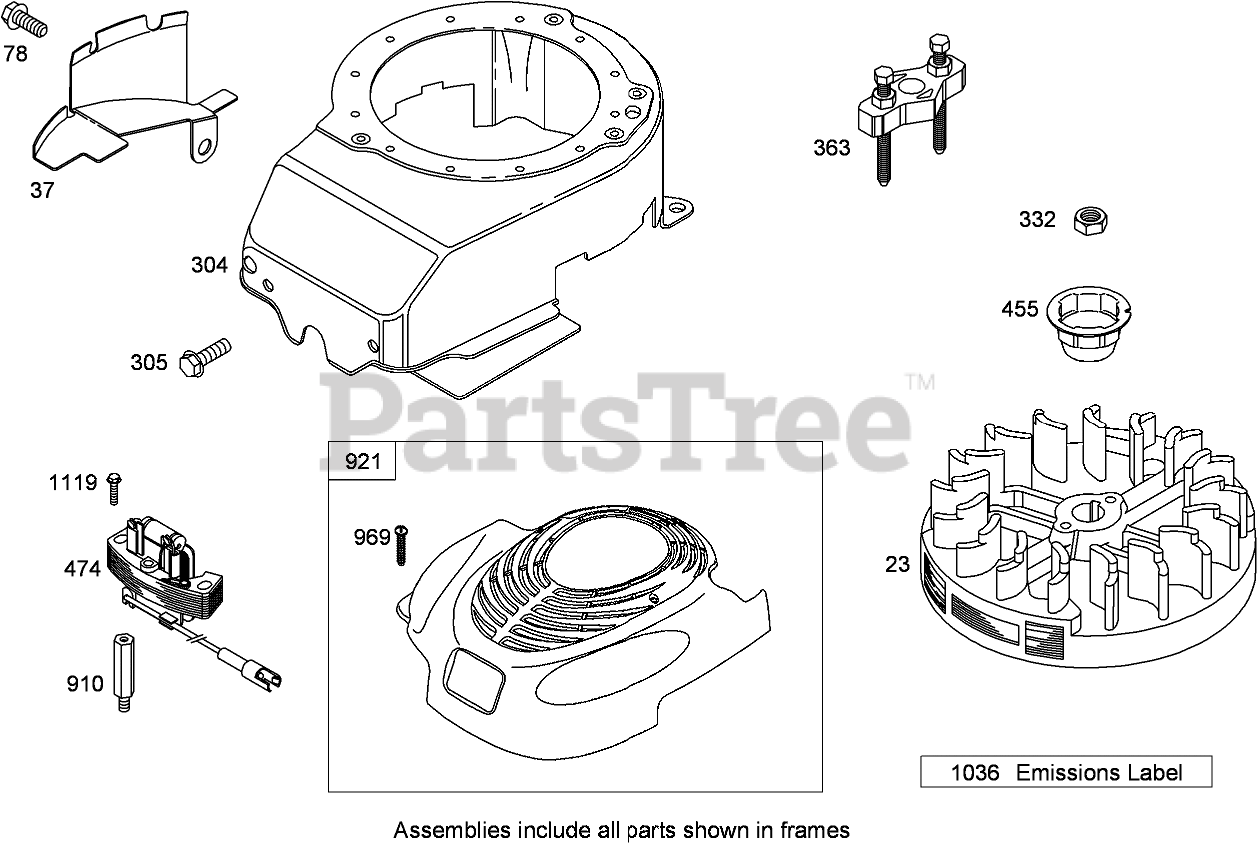

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 126T07-0238-B1 Parts Diagram

  • Title
23

Briggs & Stratton 691987

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$112.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 694086

Guard-Flywheel
(Superseded to 793756)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 3 left!

0

78

Briggs & Stratton 691108

Screw (Flywheel Guard)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

304

Toro 791135

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

305

Briggs & Stratton 691108

Screw (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

Nut (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 791960

Cup-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 691991

Alternator

Note: Obtain parts from www.briggsandstratton.com

$118.99

$

Usually ships in 2-12 days

0

910

Briggs & Stratton 691094

Stud (Alternator)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 2 left!

0

921

Briggs & Stratton 790036

Cover-Housing, Blower

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 691138

Screw (Blower Housing Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 18

0

1036

Label-Emissions

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1119

Briggs & Stratton 692979

Screw (Alternator)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0
