20093 C - Toro Super Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) DECK HOUSING AND REAR DOOR ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

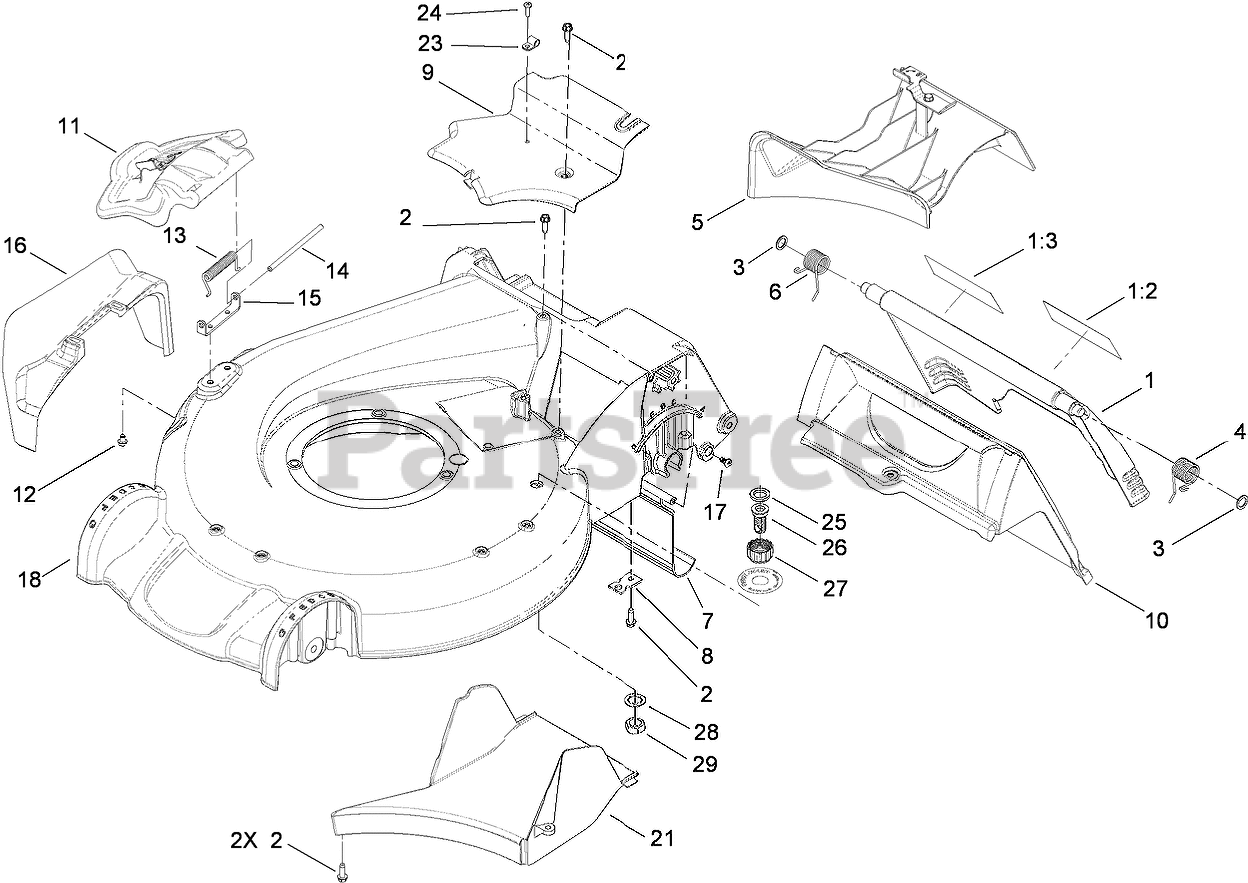

DECK HOUSING AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 115-2856

REAR DOOR ASM

$42.99

$

Usually ships in 3-6 days

0

1:2

Toro 114-7982

DECAL-WARNING

$4.99

$

Usually ships in 3-6 days

0

1:3

Toro 104-7908

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

2

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

3

Toro 94-8196

WASHER-NYLON

$6.99

$

In Stock, only 3 left!

0

4

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

5

Toro 115-8413

MULCH PLUG ASM

$38.99

$

In Stock, only 1 left!

0

6

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

7

Toro 114-1586

SHIELD-TRAILING
(Superseded to 120-7011)

$35.99

$

In Stock, only 1 left!

0

8

Toro 107-7497

BRACKET-CABLE, TRACTION
(Superseded to 138-3224)

$2.99

$

In Stock, Qty 8

0

9

Toro 107-7494

COVER-BELT

$21.99

$

In Stock, only 1 left!

0

10

$37.99

$

In Stock, only 1 left!

0

11

Toro 107-3717

DISCHARGE DOOR ASM

$24.99

$

Usually ships in 3-6 days

0

12

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

13

Toro 99-5293

SPRING-TORSION

$9.99

$

In Stock, only 3 left!

0

14

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 5

0

15

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 4 left!

0

16

Toro 108-3753

CHUTE-DISCHARGE, SIDE

$24.99

$

In Stock, only 1 left!

0

17

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

18

Toro 115-2855

HOUSING ASM

$322.99

$

Usually ships in 3-6 days

0

21

Toro 107-7495

TUNNEL-DISCHARGE

$25.99

$

In Stock, only 4 left!

0

23

Toro 98-2256

CLAMP

$5.49

$

Usually ships in 3-6 days

0

24

$2.49

$

Usually ships in 3-6 days

0

25

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, only 3 left!

0

26

Toro 112-6400

PORT-WASHOUT

$4.99

$

Usually ships in 3-6 days

0

27

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.49

$

In Stock, only 1 left!

0

28

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

29

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0
