20091 - Toro Super Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) HOUSING ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

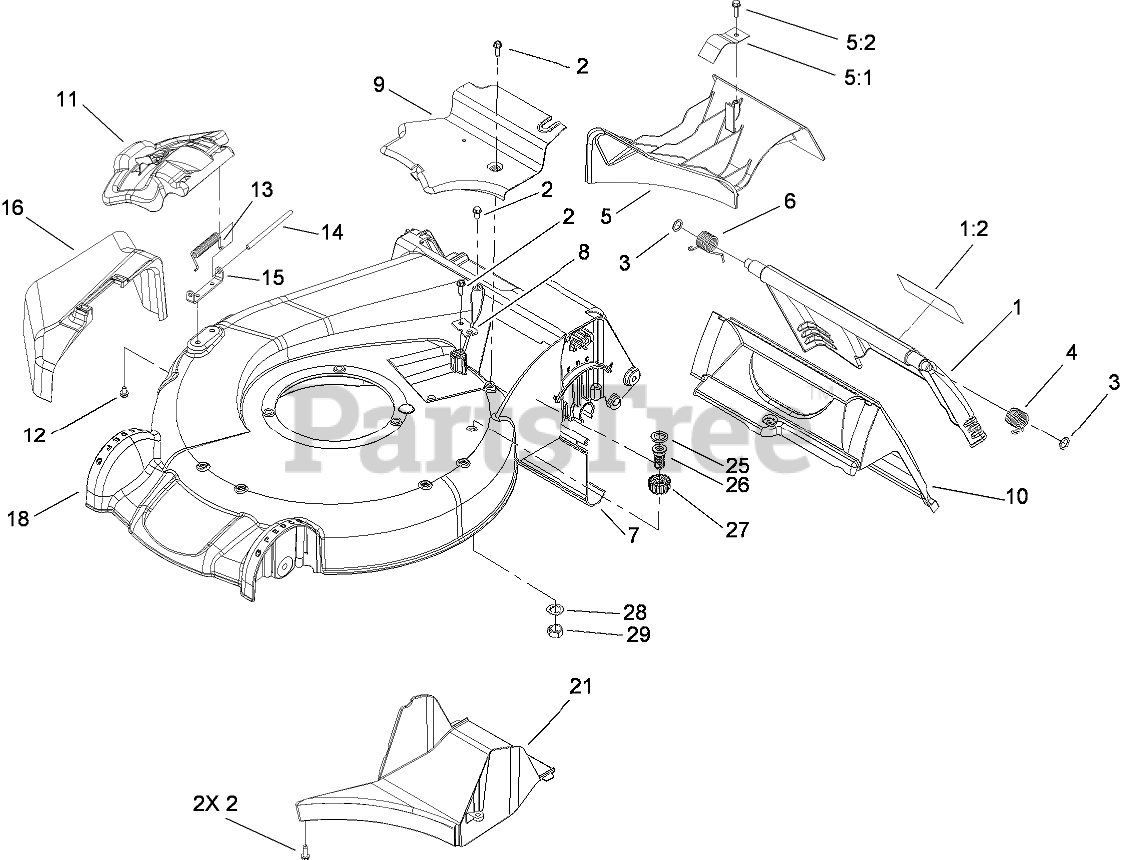

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 114-7992

REAR DOOR ASM

$34.99

$

In Stock, only 1 left!

0

1:2

Toro 114-7982

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

2

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

3

Toro 94-8196

WASHER-NYLON

$6.99

$

In Stock, only 3 left!

0

4

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

5

Toro 115-4656

PLUG-MULCH ASM
(Superseded to 115-8413)

$39.99

$

In Stock, only 1 left!

0

5:1

Toro 115-4655

TAB-SPRING
(Superseded to 115-8412)

$9.99

$

Usually ships in 3-6 days

0

5:2

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

6

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

7

Toro 114-1586

SHIELD-TRAILING
(Superseded to 120-7011)

$36.99

$

In Stock, only 1 left!

0

8

Toro 107-7497

BRACKET-CABLE, TRACTION
(Superseded to 138-3224)

$2.99

$

In Stock, Qty 6

0

9

Toro 107-7494

COVER-BELT

$21.99

$

In Stock, only 1 left!

0

10

$38.99

$

In Stock, only 1 left!

0

11

Toro 107-3717

DISCHARGE DOOR ASM

$25.99

$

Usually ships in 3-6 days

0

12

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

13

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

14

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

15

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

16

Toro 108-3753

CHUTE-DISCHARGE, SIDE

$25.99

$

In Stock, only 1 left!

0

18

Toro 115-2854

HOUSING ASM

$278.99

$

Usually ships in 3-6 days

0

21

Toro 107-7495

TUNNEL-DISCHARGE

$26.99

$

In Stock, only 4 left!

0

25

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, only 3 left!

0

26

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, only 1 left!

0

27

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, only 1 left!

0

28

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

29

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0
