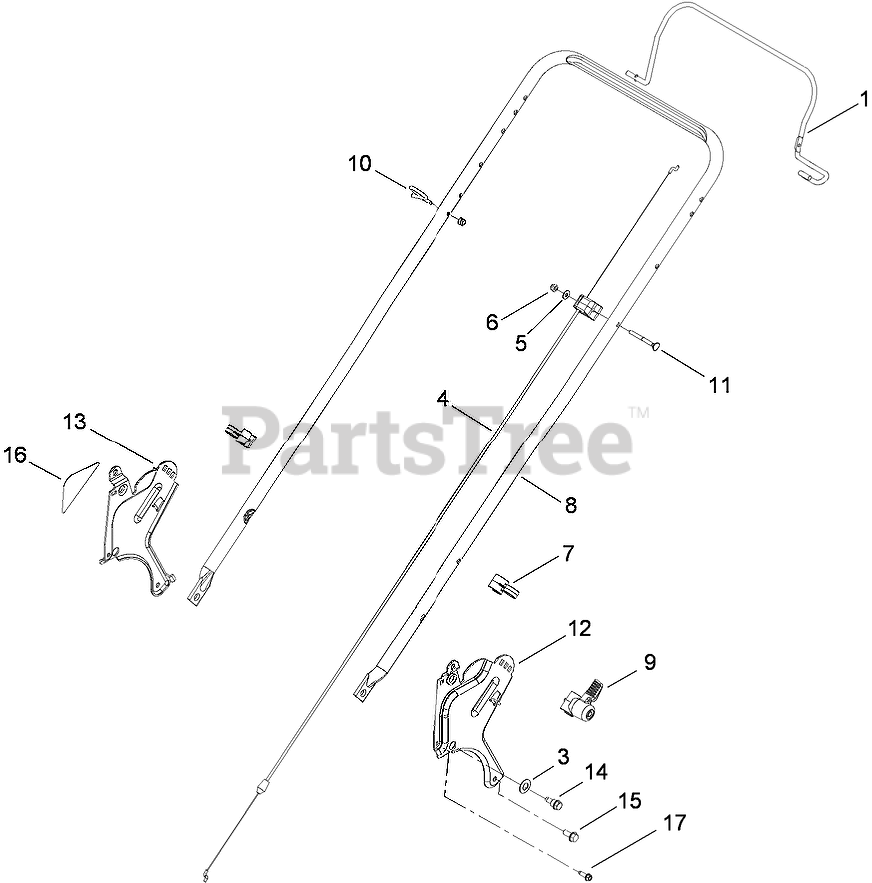

20090 C - Toro Super Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) HANDLE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-4137-03

BAIL-BRAKE
(Superseded to 117-5965-03)

$42.99

$

In Stock, only 2 left!

0

3

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, only 2 left!

0

4

Toro 117-5919

CABLE-BRAKE

$42.99

$

Usually ships in 3-6 days

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

7

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

8

Toro 115-1300-05

HANDLE
(Superseded to 121-9167-05)

$98.99

$

Usually ships in 3-6 days

0

9

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

10

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

11

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

12

Toro 114-2671-03

BRACKET-HANDLE, LH

$27.99

$

Usually ships in 3-6 days

0

13

Toro 114-2672-03

BRACKET-HANDLE, RH

$27.99

$

Usually ships in 3-6 days

0

14

Toro 115-1958

BOLT-SHOULDER

$8.49

$

In Stock, only 2 left!

0

15

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

16

Toro 115-2884

DECAL-INSTRUCTION

$5.99

$

Usually ships in 3-6 days

0

17

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0
