20089 - Toro 22" Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 126L05-0213-F1 Parts Diagram

22" Recycler Walk-Behind Mower

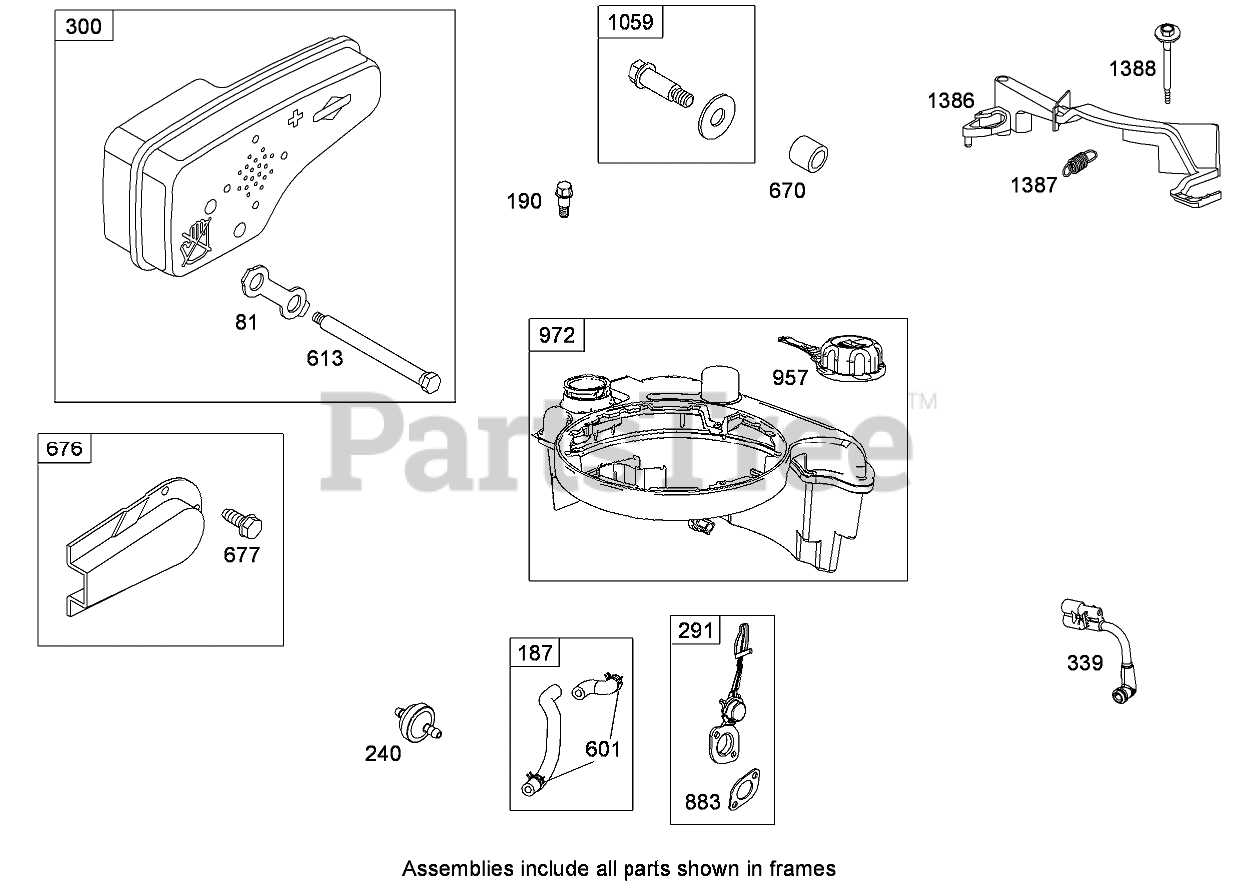

MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 126L05-0213-F1 Parts Diagram

  • Title

81

Briggs & Stratton 691740

Lock-Screw, Muffler

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 6

0

187

Briggs & Stratton 795090

Line-Fuel (Cut to Required Length)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 690940

Screw (Fuel Tank)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 8

0

240

Briggs & Stratton 298090S

Filter-Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

291

Briggs & Stratton 790830

Thermostat
(Superseded to 593208)

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, Qty 18

0

300

Briggs & Stratton 790828

Muffler

Note: Obtain parts from www.briggsandstratton.com

$40.99

$

In Stock, only 2 left!

0

339

Briggs & Stratton 794797

Tube and Connector Asm

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

Clamp-Hose

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 790833

Screw (Muffler)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 6

0

670

Briggs & Stratton 692294

Spacer-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

676

Briggs & Stratton 493871

Deflector-Muffler

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

Screw (Muffler Deflector)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

883

Briggs & Stratton 691881

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691881

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 794793

Cap-Fuel Tank

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

972

Briggs & Stratton 794792

Tank-Fuel
(Superseded to 796578)

Note: Obtain parts from www.briggsandstratton.com

$119.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 692311

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

1386

Briggs & Stratton 790848

Vane-Air

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

1387

Briggs & Stratton 790849

Spring-Vane, Air

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 10

0

1388

Briggs & Stratton 790850

Screw (Air Vane)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 11

0
