20089 - Toro 22" Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 126L05-0213-F1 Parts Diagram

22" Recycler Walk-Behind Mower

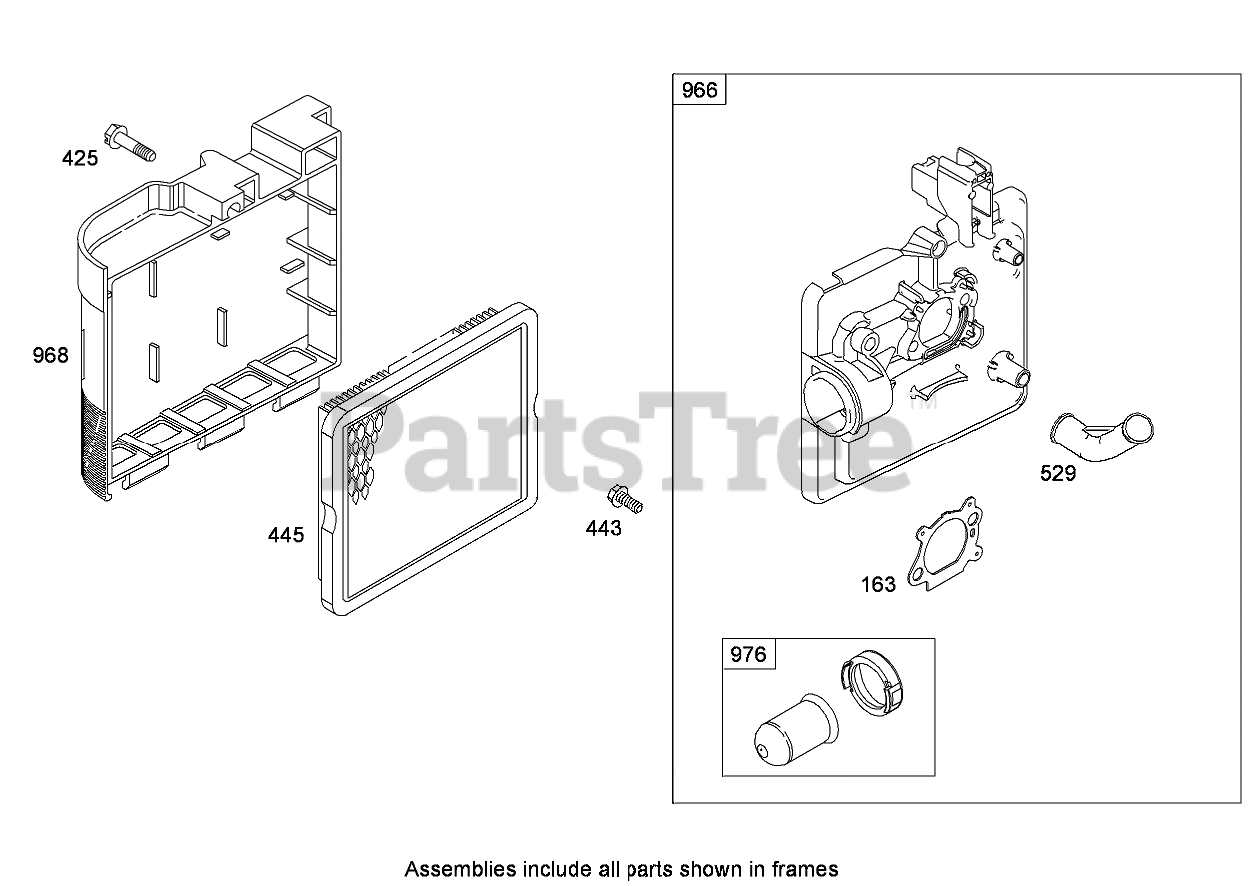

AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 126L05-0213-F1 Parts Diagram

  • Title

163

Toro 272653s

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

163

Toro 272653s

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

425

Briggs & Stratton 690670

Screw (Air Cleaner Cover)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 4 left!

0

443

Briggs & Stratton 692523

Screw (Air Cleaner Primer Base)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

445

Toro 491588s

Filter-Cartridge, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

529

Briggs & Stratton 691923

Grommet

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

966

Briggs & Stratton 792040

Base-Primer, Air Cleaner
(Superseded to 795259)

Note: Obtain parts from www.briggsandstratton.com

$32.99

$

In Stock, only 3 left!

0

968

Briggs & Stratton 692298

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 694395

Primer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0
