20086 - Toro 22" Recycler Walk-Behind Mower (SN: 280000001 - 280011041) (2008) MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 124L02-0212-F1 Parts Diagram

22" Recycler Walk-Behind Mower

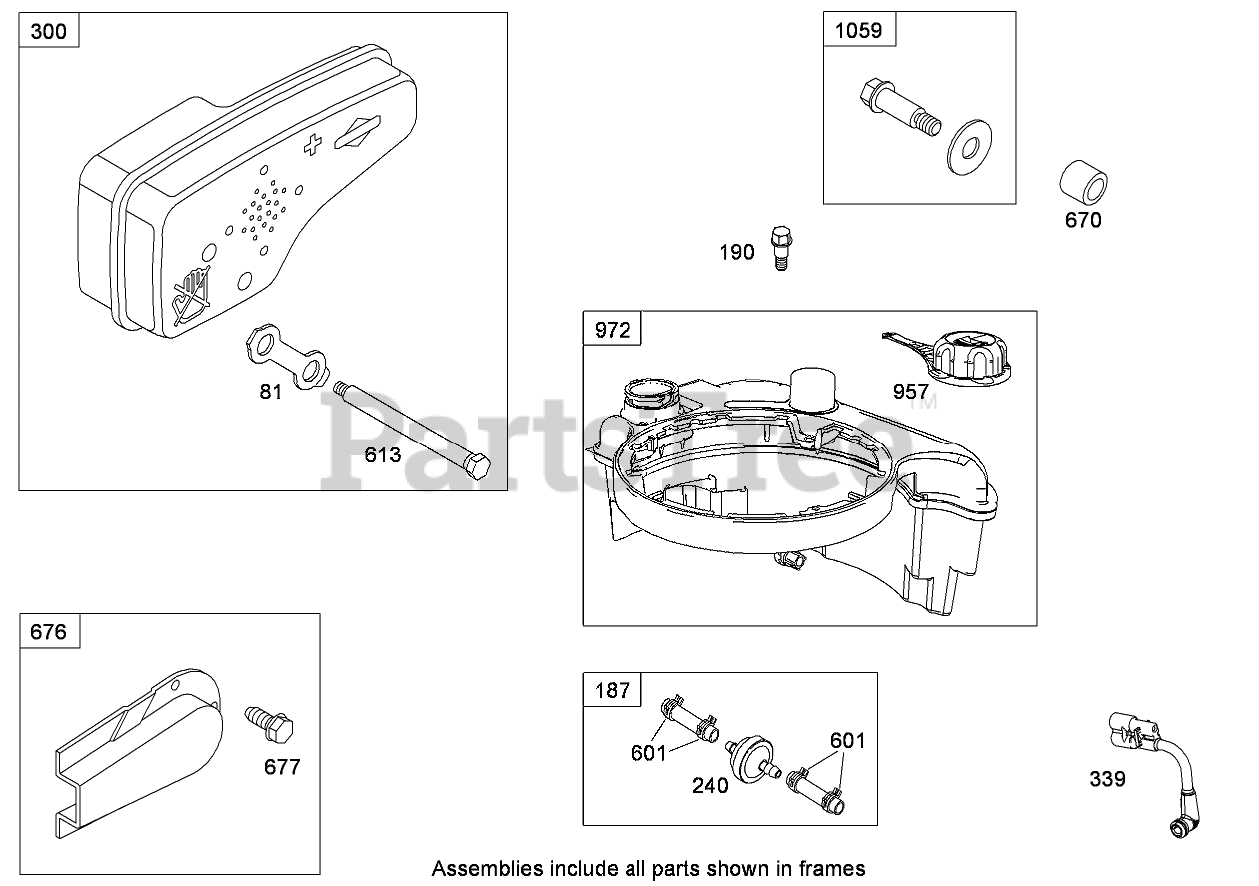

MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 124L02-0212-F1 Parts Diagram

  • Title
81

Briggs & Stratton 691740

Lock-Screw, Muffler

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

187

Briggs & Stratton 791891

Line?Fuel (Cut to Required Length)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 4 left!

0

190

Briggs & Stratton 690940

Screw (Fuel Tank)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 14

0

240

Briggs & Stratton 298090S

Filter-Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

300

Briggs & Stratton 692038

Muffler

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, only 1 left!

0

339

Briggs & Stratton 794797

Tube and Connector Asm

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

Clamp-Hose

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691340

Screw (Muffler)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 9

0

670

Briggs & Stratton 692294

Spacer-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

676

Briggs & Stratton 493871

Deflector-Muffler

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

Screw (Muffler Deflector)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

957

Briggs & Stratton 794793

Cap-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

972

Briggs & Stratton 794792

Tank-Fuel
(Superseded to 796578)

Note: Obtain parts from www.briggsandstratton.com

$119.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 692311

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0
