20079 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

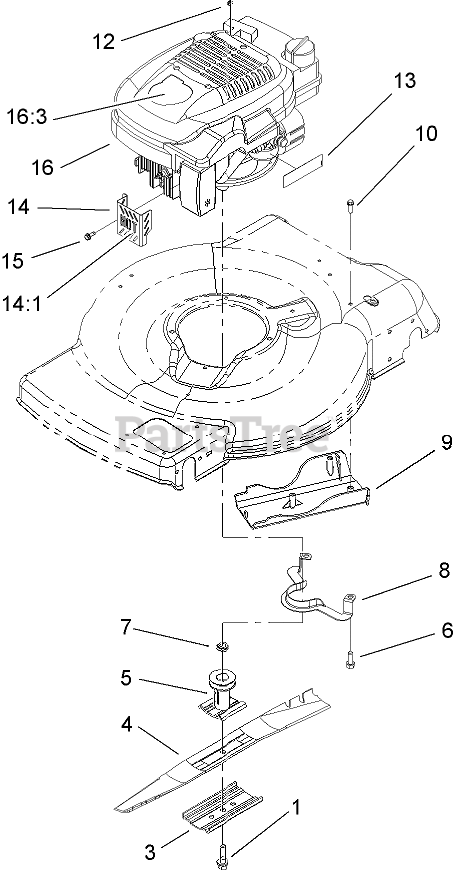

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

3

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

4

Toro 108-9764-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, Qty 5

0

5

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

8

Toro 105-3030-03

Guide-Belt

$14.99

$

Usually ships in 3-6 days

0

9

Toro 105-1835

Cover-Belt, Rear

$18.99

$

In Stock, only 1 left!

0

10

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

12

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

13

Toro 105-6832

DECAL-PRIMER

$

$

Not available

14

Toro 106-8387

MUFFLER GUARD ASM

$31.99

$

Usually ships in 3-6 days

0

14:1

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

15

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

16

ENGINE-TECUMSEH, LV195EA-362004D

Note: Not serviced separately

$

$

Not available

16

ENGINE-TECUMSEH, LV195EA-362004D

Note:

$

$

Not available

16:3

Toro 105-6815

Decal-Recoil

$6.99

$

In Stock, only 4 left!

0
