20079 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ELECTRICAL ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

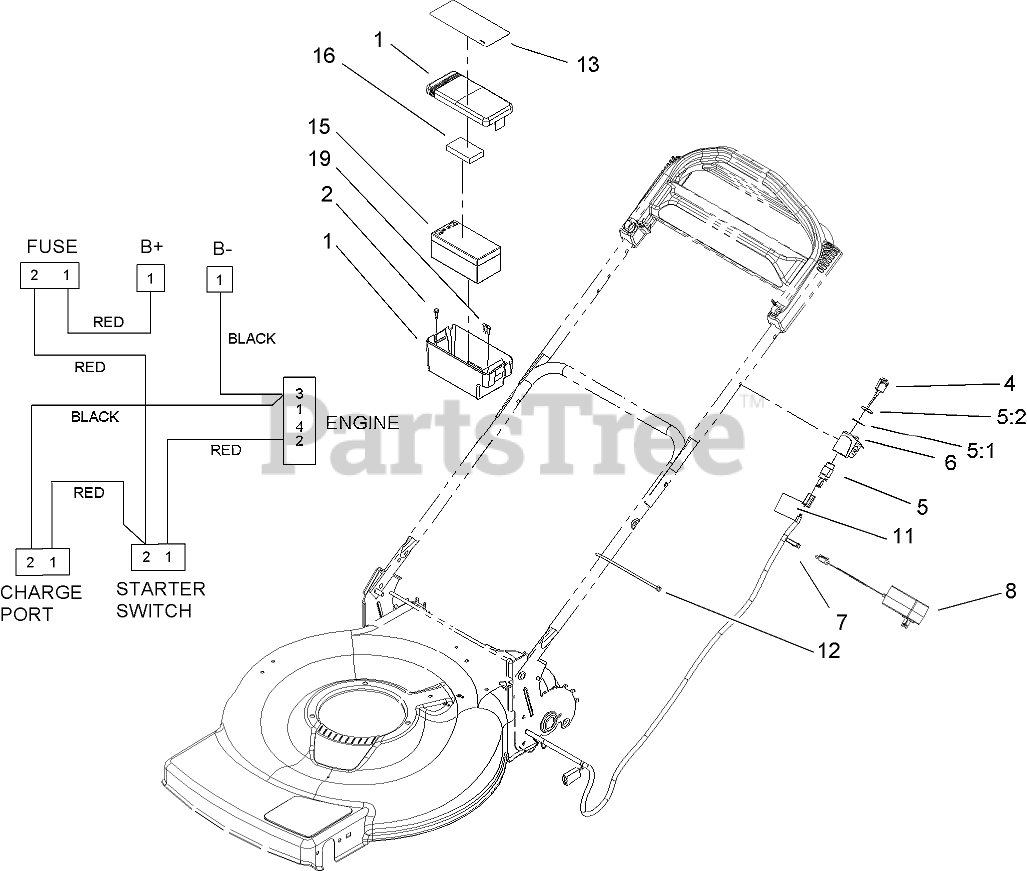

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

2

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

4

Toro 700918

KEY

$6.49

$

In Stock, Qty 11

0

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

5:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

5:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

6

Toro 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, only 1 left!

0

7

Toro 106-8396

HARNESS-WIRE

$81.99

$

Usually ships in 3-6 days

0

8

Toro 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

$39.99

$

In Stock, only 1 left!

0

11

Toro 104-7953

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

13

Toro 108-4791

DECAL-INSTRUCTIONAL

$6.49

$

Usually ships in 3-6 days

0

15

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, only 1 left!

0

16

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

19

Toro 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 8

0
