20076 - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) TRANSMISSION ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

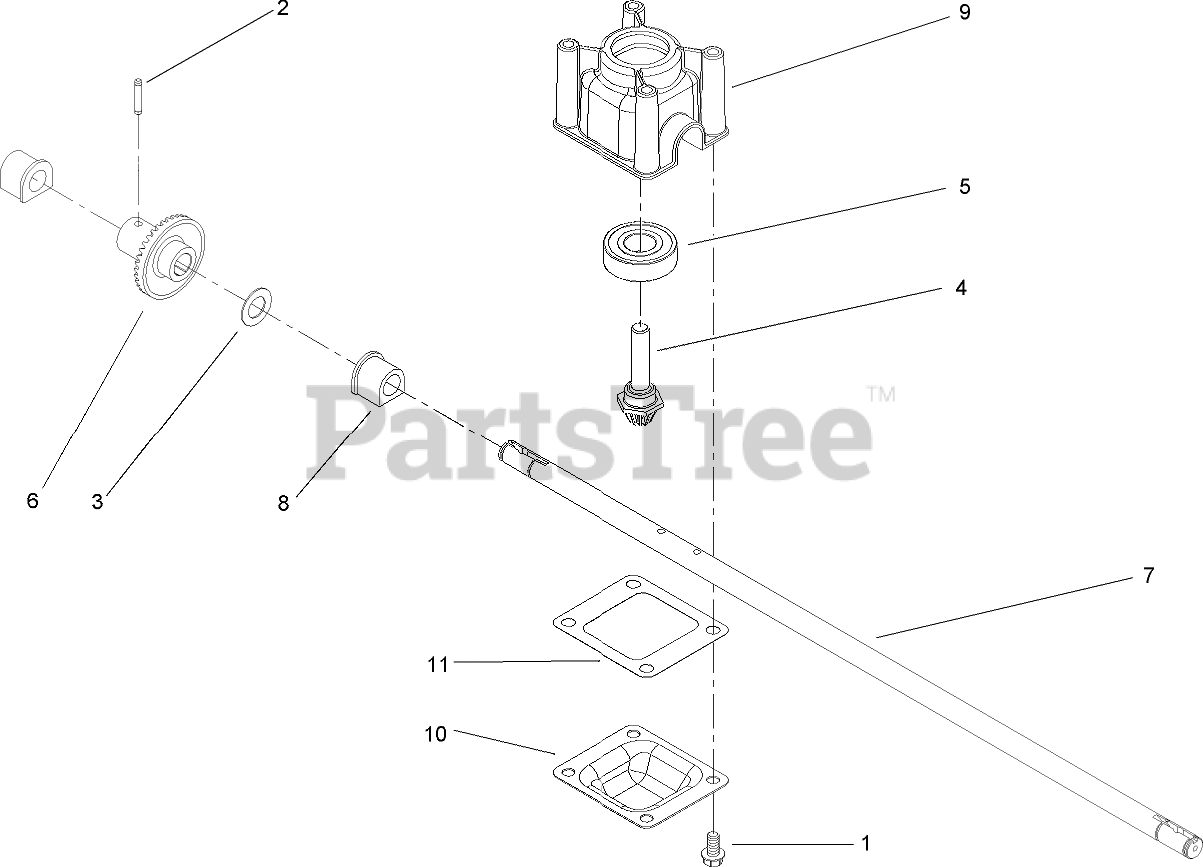

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Toro 105-6817

Pin-Groove

$3.49

$

In Stock, only 2 left!

0

3

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

4

Toro 92-5790

PINION

$16.99

$

In Stock, Qty 9

0

5

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

6

Toro 104-8671

Gear-Bevel, 37t

$47.99

$

In Stock, only 4 left!

0

7

Toro 106-3957

Shaft-Output

$91.99

$

Usually ships in 3-6 days

0

8

Toro 104-8673

Bushing-Shaft, Output

$5.99

$

In Stock, Qty 20+

0

9

Toro 104-8674

Gearcase-Upper

$12.99

$

In Stock, only 2 left!

0

10

Toro 104-8675-03

Cover-Gearcase

$7.49

$

In Stock, only 2 left!

0

11

Toro 105-6839

Gasket-Gearcase

$4.49

$

In Stock, Qty 14

0
