20076 - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ELECTRIC START ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

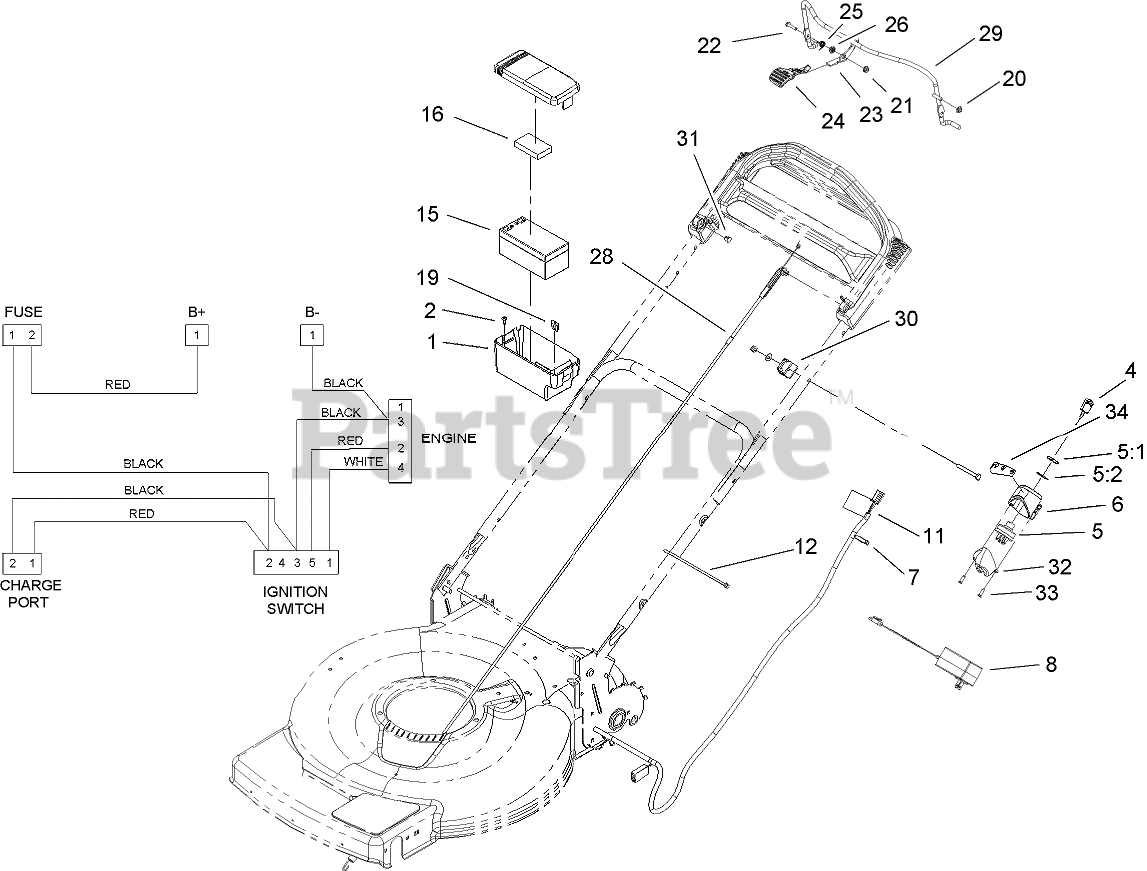

ELECTRIC START ASSEMBLY Parts Diagram

  • Title

1

Toro 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

2

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

4

Toro 700918

KEY

$6.49

$

In Stock, Qty 11

0

5

Toro 23-0660

SWITCH-STARTER

$22.99

$

In Stock, only 1 left!

0

5:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

5:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

6

Toro 108-3795

HOUSING-SWITCH, KEY

$20.99

$

In Stock, Qty 5

0

7

Toro 110-1618

HARNESS-WIRE

$90.99

$

Usually ships in 3-6 days

0

8

Toro 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

$39.99

$

In Stock, only 1 left!

0

11

Toro 104-7953

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

15

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, only 2 left!

0

16

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

19

Toro 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 8

0

20

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

21

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 16

0

22

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

23

Toro 106-6802

LEVER
(Superseded to 138-3220)

$2.99

$

In Stock, Qty 9

0

24

Toro 112-8884

KNOB

$6.49

$

In Stock, Qty 12

0

25

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, only 1 left!

0

26

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 15

0

28

Toro 107-0799

CABLE ASM

$75.99

$

In Stock, only 1 left!

0

29

Toro 108-3788

BAIL-BRAKE
(Superseded to 108-3788-03)

$42.99

$

In Stock, only 1 left!

0

30

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 5

0

31

Toro 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0

32

Toro 108-3796

COVER-SWTCH

$5.49

$

In Stock, only 1 left!

0

33

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

34

Toro 108-9751

DECAL-SWITCH, IGNITION

$7.99

$

Usually ships in 3-6 days

0
