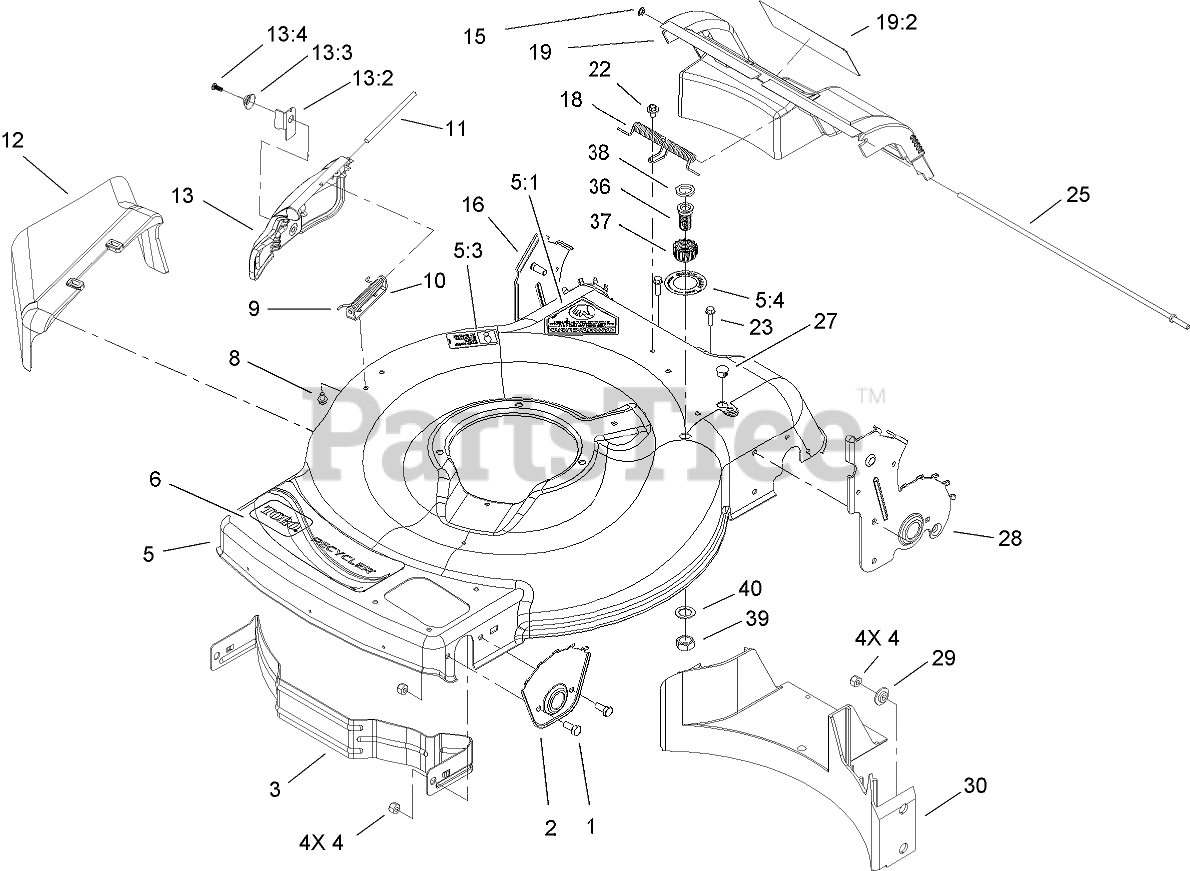

20076 - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

DECK, SIDE CHUTE AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 105-1808-03

Plate-HOC, Front

$

$

Not available

3

Toro 104-8694-03

Baffle-Front

$112.99

$

In Stock, only 3 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 112-8854

BBC HOUSING ASM

$

$

Not available

5:1

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 11

0

5:3

Toro 108-8117

DECAL-PLACEMENT, FOOT

$6.99

$

Usually ships in 3-6 days

0

5:4

Toro 112-8867

DECAL-PORT, WASHOUT
(Superseded to 137-9196)

$2.49

$

In Stock, only 1 left!

0

6

Toro 114-0321

DECAL-RECYCLER (RWD)

$23.99

$

Usually ships in 3-6 days

0

8

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

9

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, Qty 20+

0

10

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 20+

0

11

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

12

Toro 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 12

0

13

Toro 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, Qty 8

0

13:2

Toro 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

13:3

Toro 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

13:4

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

15

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

16

Toro 112-6441

8 INCH RH HOC PLATE ASM

$

$

Not available

18

Toro 105-3032

Spring-Door, Rear

$21.99

$

In Stock, only 4 left!

0

19

Toro 112-8864

REAR DOOR ASM

$47.99

$

Usually ships in 3-6 days

0

19:2

Toro 105-1295

DECAL-WARNING

$3.49

$

In Stock, only 2 left!

0

22

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, Qty 11

0

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

25

Toro 105-1827

Rod-Pivot, Rear Door

$12.99

$

Usually ships in 3-6 days

0

27

Toro 104-9369

Plug-Dome

$1.49

$

In Stock, only 1 left!

0

28

Toro 112-6443

8 INCH LH HOC PLATE ASM

$31.99

$

Usually ships in 3-6 days

0

29

Toro 105-3006

Washer-Stepped

$2.99

$

In Stock, only 1 left!

0

30

Toro 105-1834

Baffle-Rear

$54.99

$

Usually ships in 3-6 days

0

36

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, Qty 10

0

37

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, Qty 10

0

38

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, Qty 12

0

39

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

40

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0
