20076 - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CARBURETOR ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

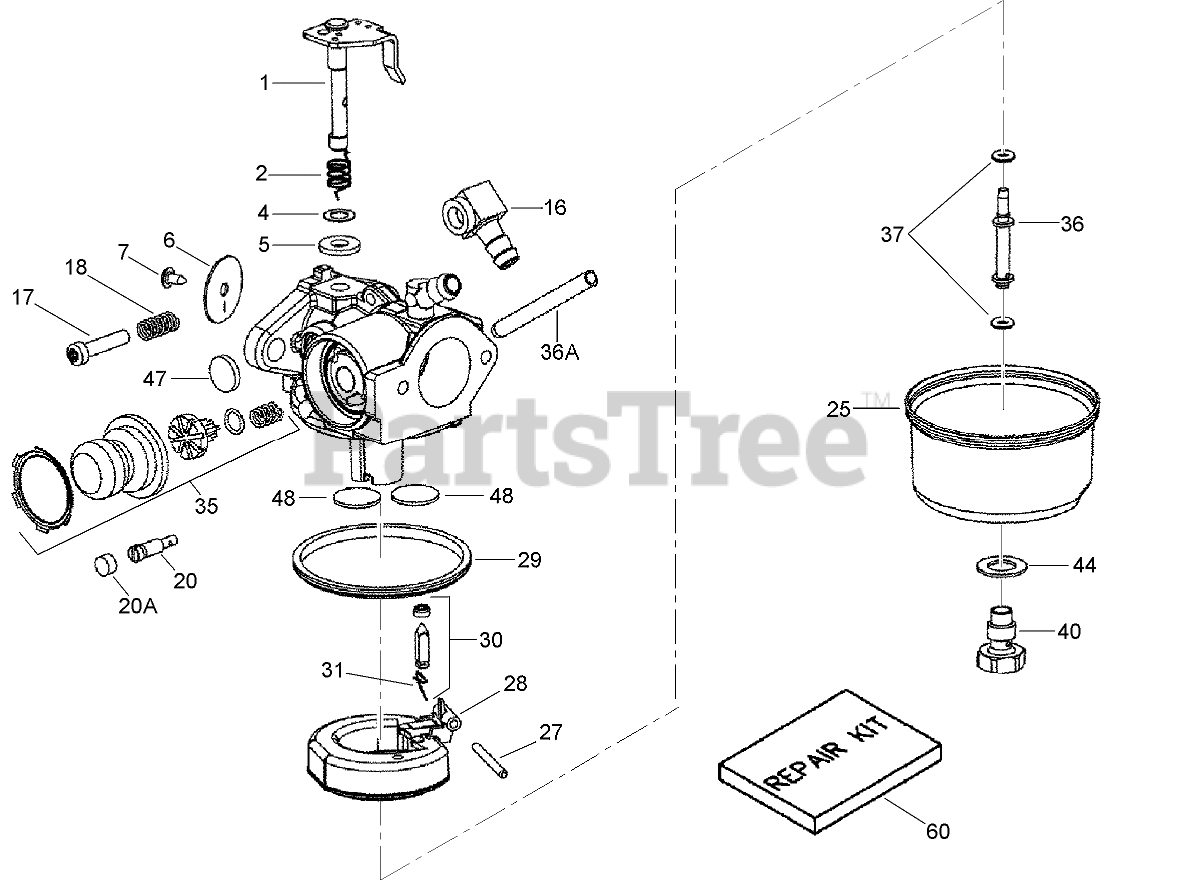

CARBURETOR ASSEMBLY Parts Diagram

  • Title

Tecumseh 640350

Carburetor ASM

Note: Original Tecumseh Part

$109.99

$

In Stock, only 1 left!

0

1

Tecumseh 631615

Throttle Shaft and Lever ASM

Note: Original Tecumseh Part

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631767

Spring-Return, Throttle

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

4

Tecumseh 631184

Washer-Seal, Dust

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 17

0

4

Tecumseh 631184

Washer-Seal, Dust

Note: Included in Repair Kit 632760B

$1.99

$

In Stock, Qty 17

0

5

Tecumseh 631183

Seal-Dust

Note: Included in Repair Kit 632760B

$1.99

$

In Stock, Qty 12

0

5

Tecumseh 631183

Seal-Dust

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 12

0

6

Tecumseh 640070

Shutter-Throttle

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 650506

Screw-Shutter

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 16

0

7

Tecumseh 650506

Screw-Shutter

Note: Included in Repair Kit 632760B

$1.49

$

In Stock, Qty 16

0

16

Tecumseh 631807

Fitting-Fuel

Note: Original Tecumseh Part

$8.49

$

In Stock, only 2 left!

0

17

Tecumseh 651025

Screw-Throttle Crack and Idle Speed

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Spring-Tension

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 640016

Screw-Restrictor, Idle

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 9

0

20A

Tecumseh 640200

Cap-Screw, Restrictor Idle

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

25

Tecumseh 631867

Bowl-Float (no drain)

Note: Original Tecumseh Part

$3.49

$

In Stock, Qty 12

0

27

Tecumseh 631024

Shaft-Float

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 11

0

27

Tecumseh 631024

Shaft-Float

Note: Included in Repair Kit 632760B

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632802

Float (Plastic)
(Superseded to 632816)

Note: Original Tecumseh Part

$8.49

$

In Stock, only 2 left!

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 14

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included in Repair Kit 632760B

$2.49

$

In Stock, Qty 14

0

30

Tecumseh 631021A

Inlet Needle, Seat and Clip ASM (Includes 31)
(Superseded to 631021B)

Note: Included in Repair Kit 632760B

$6.99

$

In Stock, Qty 5

0

30

Tecumseh 631021A

Inlet Needle, Seat and Clip ASM (Includes 31)
(Superseded to 631021B)

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 5

0

31

Tecumseh 631022

Clip-Spring

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

35

Tecumseh 640351

Primer Bulb and Valve Repair Kit

Note: Original Tecumseh Part

$6.49

$

In Stock, Qty 12

0

36

Tecumseh 640080

Tube-Nozzle, Main

Note: Original Tecumseh Part

$6.99

$

In Stock, only 2 left!

0

36A

Tecumseh 632766

Tube-Carburetor

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

37

Tecumseh 632547

O-Ring

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 20+

0

37

Tecumseh 632547

O-Ring

Note: Included in Repair Kit 632760B

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640030

Nut-Bowl, High Speed

Note: Original Tecumseh Part

$7.49

$

In Stock, Qty 11

0

44

Tecumseh 27110A

Washer-Nut, Bowl

Note: Original Tecumseh Part

$2.49

$

Usually ships in 3-12 days

0

44

Tecumseh 27110A

Washer-Nut, Bowl

Note: Included in Repair Kit 632760B

$2.49

$

Usually ships in 3-12 days

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit 632760B

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Included in Repair Kit 632760B

$1.99

$

In Stock, only 1 left!

0

60

Tecumseh 632760B

Carburetor Repair Kit

Note: Original Tecumseh Part

$27.99

$

In Stock, Qty 17

0
