20076 A - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ENGINE ASSEMBLY NO. 1 TECUMSEH LV195EA-362086D Parts Diagram

22" Recycler Walk-Behind Mower

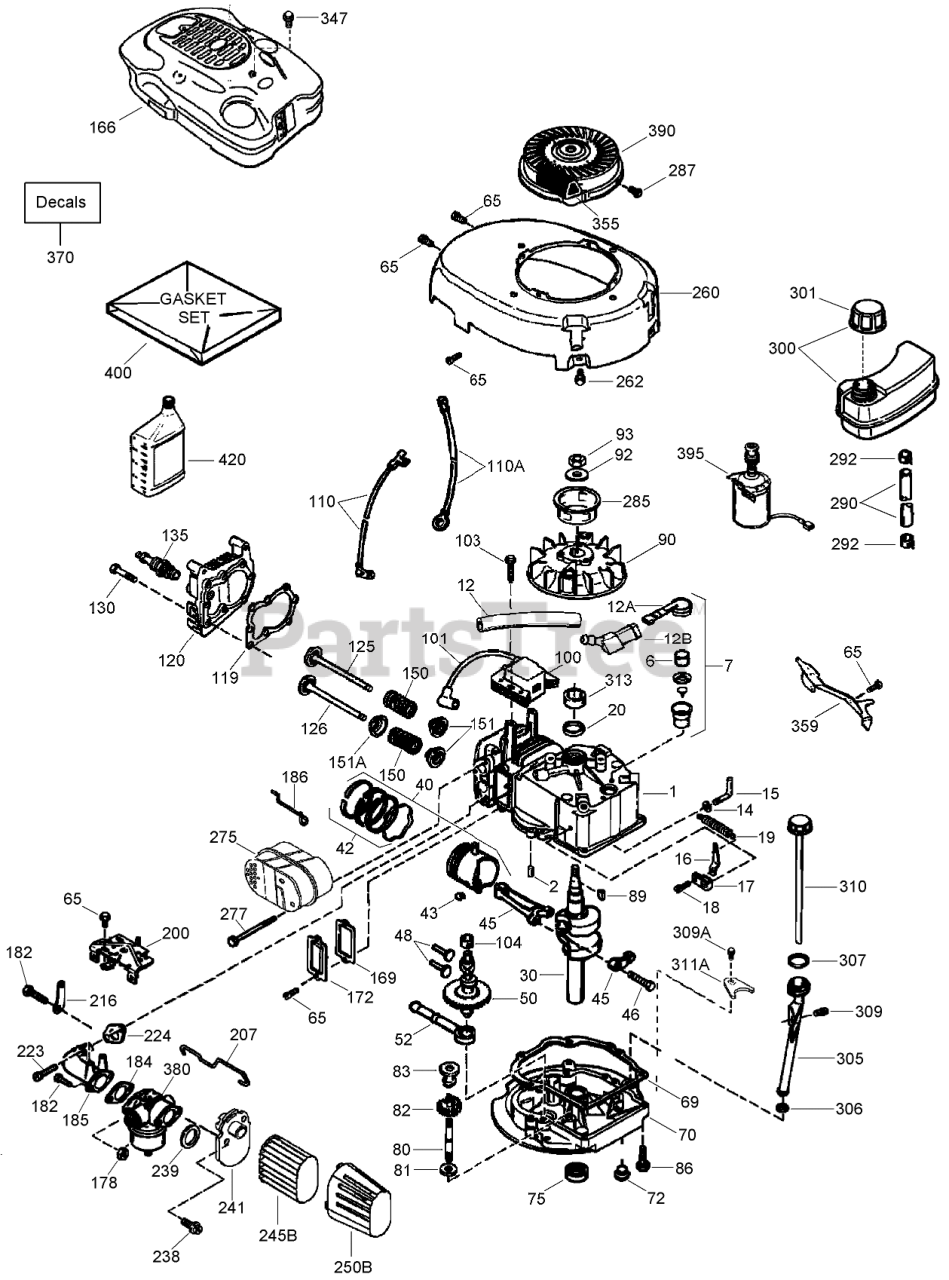

ENGINE ASSEMBLY NO. 1 TECUMSEH LV195EA-362086D Parts Diagram

  • Title

1

Tecumseh 37465

Cylinder Asm (Includes 2, 20)

Note: Original Tecumseh Part

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

6

Tecumseh 33734

Element-Breather

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 11

0

7

Tecumseh 36557

Breather Asm (Includes 6, 12A)

Note: Original Tecumseh Part

$

$

Not available

12

Tecumseh 37944

Tube-Breather

Note: Original Tecumseh Part

$2.99

$

In Stock, Qty 8

0

12A

Tecumseh 36558

Breather Cover and Tube ASM

Note: Original Tecumseh Part

$10.99

$

In Stock, only 1 left!

0

12B

Tecumseh 36694

Elbow-Tube, Breather

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 14

0

14

Tecumseh 28277

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 30589

Governor Rod Asm (Includes 14)

Note: Original Tecumseh Part

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 34839A

Lever-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

17

Tecumseh 31335

Clamp-Lever, Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 651018

Screw (T-15, 8-32 x 19/64)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 36281

Spring-Extension

Note: Original Tecumseh Part

$1.49

$

In Stock, only 3 left!

0

20

Tecumseh 32600

Seal-Oil

Note: Original Tecumseh Part

$

$

Not available

30

Tecumseh 38001

Crankshaft

Note: Original Tecumseh Part

$104.99

$

Usually ships in 3-12 days

0

40

Tecumseh 40044

Piston, Pin and Ring Set (Std) (Includes 42)

Note: Original Tecumseh Part

$77.99

$

In Stock, only 1 left!

0

40

Tecumseh 40045

Piston, Pin and Ring Set (.010 OS) (Includes 42)

Note: Original Tecumseh Part

$

$

Not available

42

Tecumseh 40006

Ring Set (STD)

Note: Original Tecumseh Part

$42.99

$

In Stock, only 1 left!

0

42

Tecumseh 40007

Ring Set (.010 O S)
(Superseded to 40045)

Note: Original Tecumseh Part

$

$

Not available

43

Tecumseh 20381

Ring-Retaining, Piston Pin

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 36777

Connecting Rod Asm (Includes 46)
(Superseded to 36777A)

Note: Original Tecumseh Part

$41.99

$

Usually ships in 3-12 days

0

46

Tecumseh 32610A

Bolt-Rod, Connecting

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Lifter-Valve

Note: Original Tecumseh Part

$5.49

$

In Stock, only 2 left!

0

50

Tecumseh 37460

Camshaft (Exhaust M C R) (Includes 104)

Note: Original Tecumseh Part

$83.99

$

Usually ships in 3-12 days

0

52

Tecumseh 29914

Oil Pump ASM

Note: Original Tecumseh Part

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 10

0

69

Tecumseh 37609

Gasket-Flange, Mounting

Note: Original Tecumseh Part

$2.99

$

Usually ships in 3-12 days

0

70

Tecumseh 37608A

Mounting Flange Asm (Includes 72-83, 306, 309A, 311A)

Note: Original Tecumseh Part

$77.99

$

Usually ships in 3-12 days

0

72

Tecumseh 37614

Plug-Drain, Oil (Flush Mount)

Note: Original Tecumseh Part

$5.99

$

In Stock, only 2 left!

0

75

Tecumseh 27897

Seal-Oil

Note: Original Tecumseh Part

$8.49

$

In Stock, only 3 left!

0

80

Tecumseh 30574A

Shaft-Governor

Note: Original Tecumseh Part

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear Asm (Includes 81)

Note: Original Tecumseh Part

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 611298

Key-Flywheel

Note: Original Tecumseh Part

$1.49

$

In Stock, only 4 left!

0

90

Tecumseh 611179

Flywheel

Note: Original Tecumseh Part

$134.99

$

In Stock, only 1 left!

0

92

Tecumseh 650815

Washer-Belleville

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Nut-Flywheel

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443C

Ignition-State, Solid
(Superseded to 34443D)

Note: Original Tecumseh Part

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 611289

Cover-Spark Plug

Note: Original Tecumseh Part

$2.99

$

Usually ships in 3-12 days

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

104

Tecumseh 37480

Bushing-Cam

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

110

Tecumseh 37682

Wire-Ground

Note: Original Tecumseh Part

$3.49

$

In Stock, only 2 left!

0

110A

Tecumseh 36953

Ground Wire Asm (11.25) with ring terminal and female straight terminal

Note: Original Tecumseh Part

$

$

Not available

119

Tecumseh 37796

Gasket-Head, Cylinder

Note: Original Tecumseh Part

$9.99

$

Usually ships in 3-12 days

0

120

Tecumseh 37714

Head-Cylinder

Note: Original Tecumseh Part

$

$

Not available

125

Tecumseh 37288

Exhaust Valve (Std) (Includes 151)

Note: Original Tecumseh Part

$

$

Not available

126

Tecumseh 37289

Intake Valve (Std) (Includes 151)

Note: Original Tecumseh Part

$

$

Not available

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0
