20073 A - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

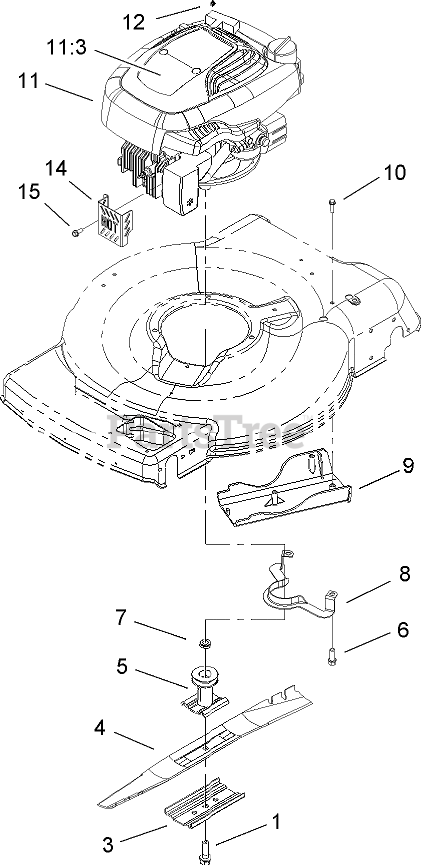

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

3

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

4

Toro 108-9764-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, Qty 20+

0

5

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, Qty 19

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

8

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 2 left!

0

9

Toro 105-1835

Cover-Belt, Rear

$18.99

$

In Stock, only 2 left!

0

10

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

11

ENGINE-TECUMSEH, LV195-362089D

Note: Not serviced separately

$

$

Not available

11

ENGINE-TECUMSEH, LV195-362089D

Note:

$

$

Not available

11:3

Toro 112-8874

DECAL-SHROUD, ENGINE

$41.99

$

In Stock, only 3 left!

0

12

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

14

Toro 106-8346-03

GUARD-MUFFLER

$18.99

$

Usually ships in 3-6 days

0

15

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
