20071 - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) REAR AXLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

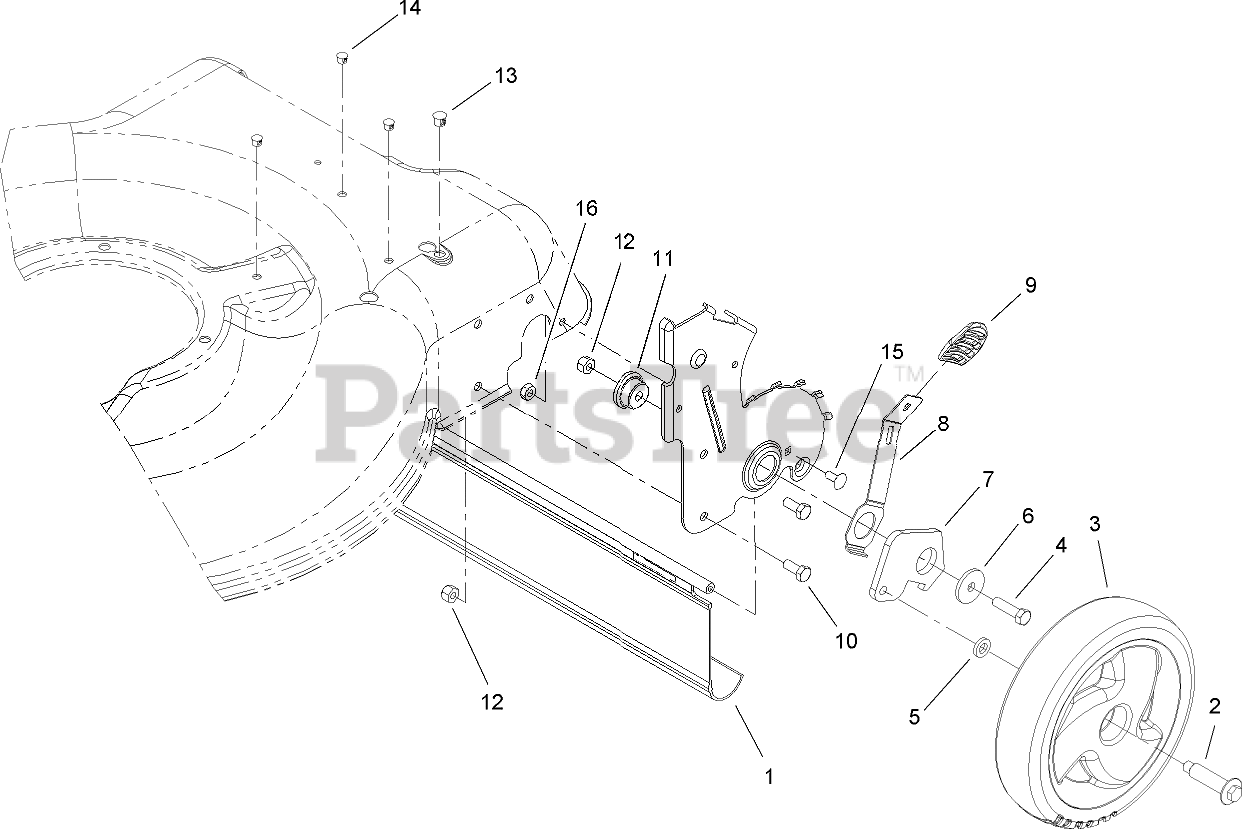

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-1585

SHIELD-TRAILING

$25.99

$

In Stock, only 4 left!

0

2

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 9

0

3

Toro 105-1814

WHEEL ASM (59505)

$33.99

$

In Stock, only 2 left!

0

4

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Toro 110-7466

WASHER-BOLT, WHEEL

$4.49

$

In Stock, only 4 left!

0

6

Toro 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 12

0

7

Toro 105-1819

Arm-Pivot, Rear (LH)

$12.99

$

In Stock, only 4 left!

0

8

Toro 105-1809

Arm-Spring

$11.99

$

In Stock, only 2 left!

0

9

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 6

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 105-1818

Bushing-Mount, HOC

$5.49

$

In Stock, Qty 9

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0

14

Toro 104-9373

Plug-Dome

$1.99

$

In Stock, only 3 left!

0

15

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0
