20071 - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

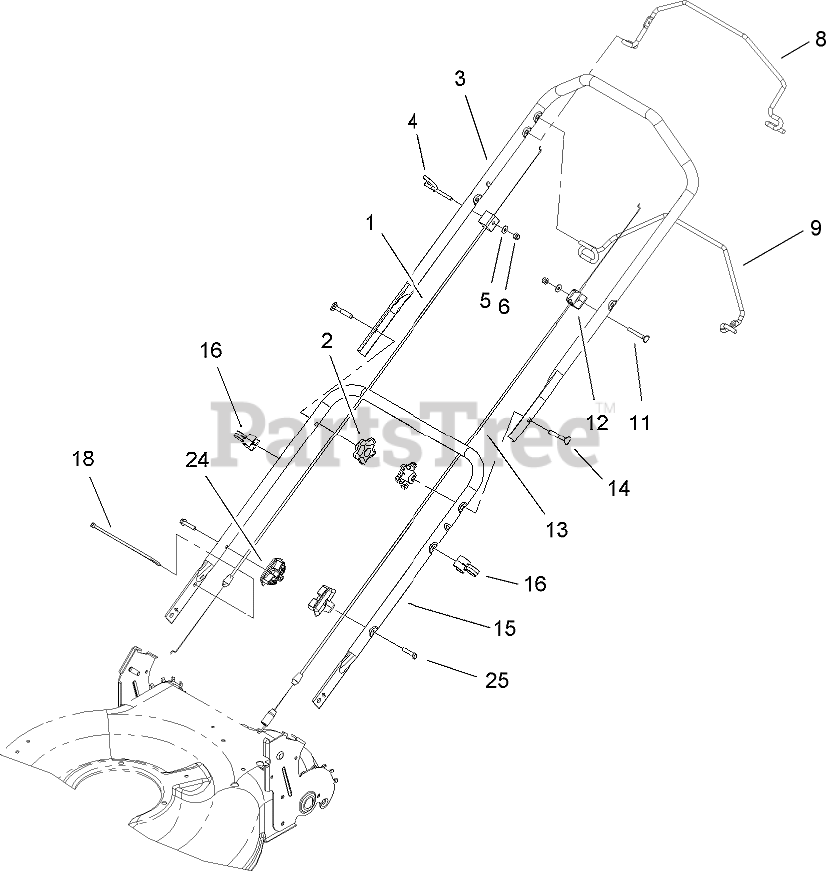

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8677

Cable-Brake

$20.99

$

In Stock, only 1 left!

0

2

Toro 108-8162

KNOB-LOCKING
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 15

0

3

Toro 108-9789-05

HANDLE-UPPER

$84.99

$

Usually ships in 3-6 days

0

4

Toro 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

8

Toro 108-9791-03

BAIL-BRAKE
(Superseded to 114-7923-03)

$29.99

$

In Stock, only 1 left!

0

9

Toro 108-9790-03

BAIL-TRACTION

$

$

Not available

11

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

12

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

13

Toro 105-1845

Cable-Traction

$27.99

$

In Stock, only 3 left!

0

14

Toro 112-8876

SCREW-HANDLE
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

15

Toro 112-6440-05

HANDLE-LOWER

$67.99

$

In Stock, only 1 left!

0

16

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

24

Toro 108-9788

ANCHOR-BAG

$4.49

$

Usually ships in 3-6 days

0

25

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0
