20070 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ENGINE ASSEMBLY NO. 2 TECUMSEH LV195EA-362004D Parts Diagram

22" Recycler Walk-Behind Mower

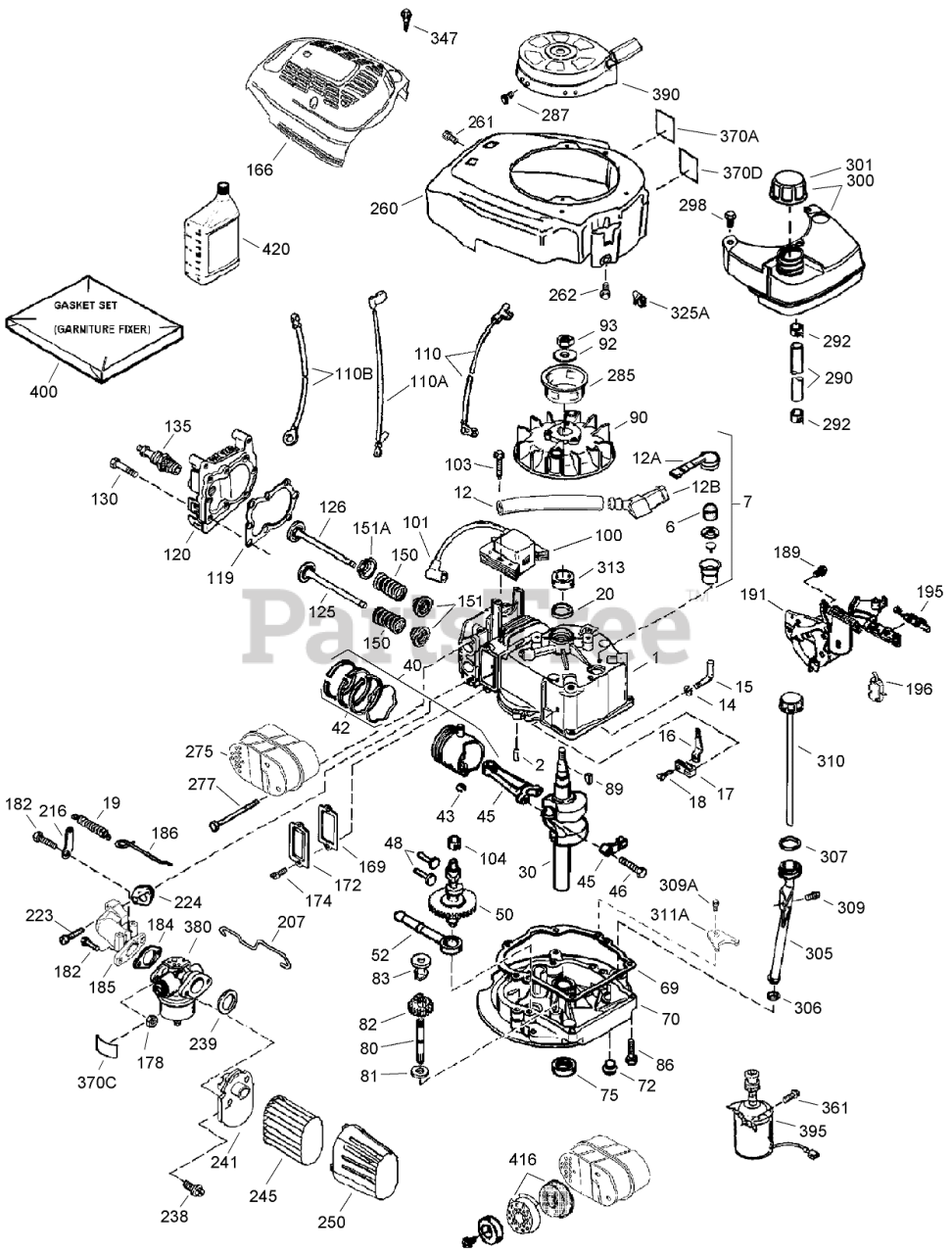

ENGINE ASSEMBLY NO. 2 TECUMSEH LV195EA-362004D Parts Diagram

  • Title

310

Tecumseh 35648

Dipstick

Note: Original Tecumseh Part

$10.99

$

In Stock, only 1 left!

0

311A

Tecumseh 37611

Bracket-Holddown

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

313

Tecumseh 34080

Spacer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

325A

Tecumseh 35249

Clip-Actuator, Brake Switch

Note: Original Tecumseh Part

$5.49

$

Usually ships in 3-12 days

0

347

Tecumseh 650898A

Screw (10-32 x 27/32)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

361

Tecumseh 650831

Screw (1/4-20 x 1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

370A

Tecumseh 36261

Decal-Lubrication

Note: Original Tecumseh Part

$

$

Not available

370C

Tecumseh 37695

Decal-Primer
(Superseded to 37318)

Note: Original Tecumseh Part

$2.49

$

Usually ships in 3-12 days

0

370D

Tecumseh 35977

Decal-Warning

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 6

0

380

Tecumseh 640303

Carburetor ASM (Includes 184)
(Superseded to 640350)

Note: Original Tecumseh Part

$109.99

$

In Stock, only 1 left!

0

390

Tecumseh 590739

Rewind Starter ASM (Note: This engine may have been built with 590702 starter)

Note: Original Tecumseh Part

$62.99

$

Usually ships in 3-12 days

0

395

Tecumseh 37753

12 Volt Electric Starter Motor ASM

Note: Original Tecumseh Part

$143.99

$

Usually ships in 3-12 days

0

400

Tecumseh 37613

Gasket Set
(Superseded to 37613A)

Note: Original Tecumseh Part

$16.99

$

In Stock, Qty 9

0

416

Tecumseh 37530

Spark Arrestor Kit

Note: Original Tecumseh Part

$

$

Not available

420

Tecumseh 730225A

Oil-Engine (4-Cycle SAE 30)

Note: Original Tecumseh Part

$8.99

$

In Stock, only 2 left!

0
