20070 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) 12 VOLT ELECTRIC STARTER ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

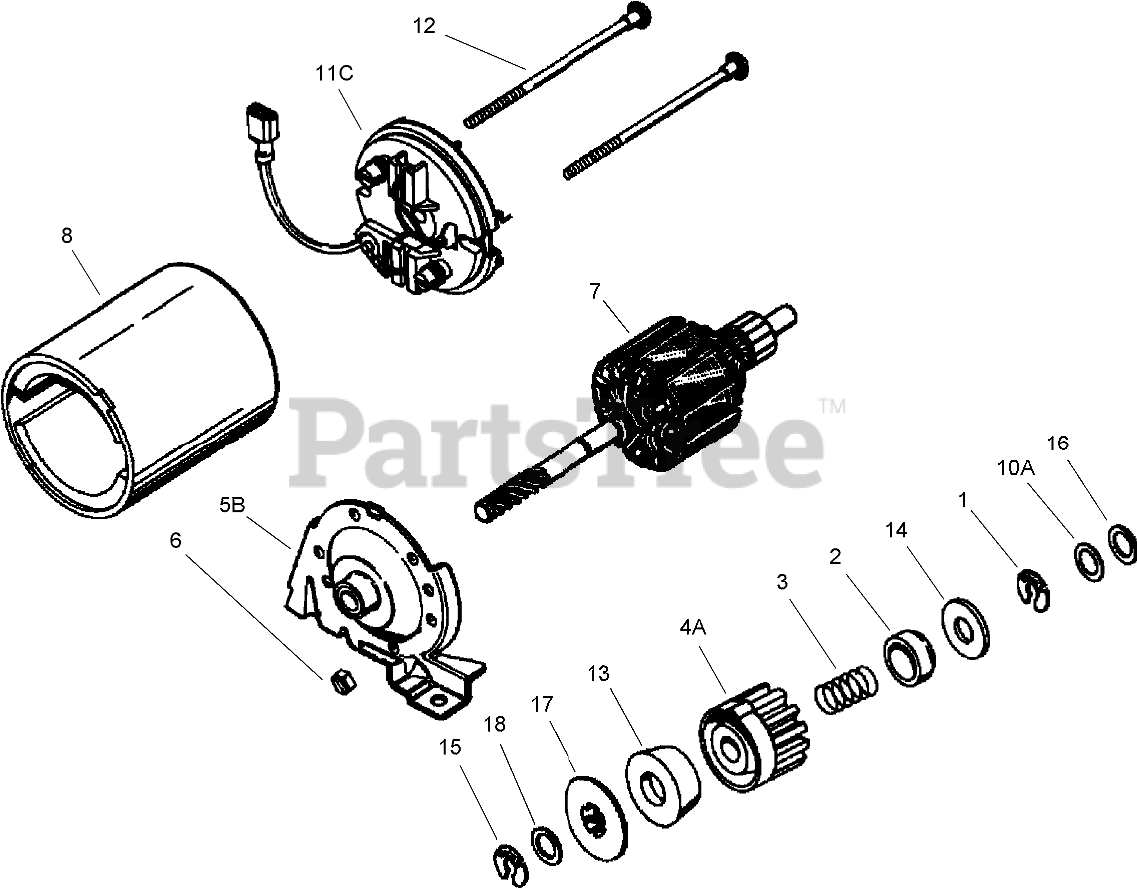

12 VOLT ELECTRIC STARTER ASSEMBLY Parts Diagram

  • Title

Tecumseh 37753

12 Volt Electric Starter Motor ASM

Note: Original Tecumseh Part

$143.99

$

Usually ships in 3-12 days

0

1

Tecumseh 34955

Ring-Retaining

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

2

Tecumseh 34950

Retainer-Spring

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

3

Tecumseh 34954

Spring
(Superseded to 590654)

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

4A

Tecumseh 37788

Gear

Note: Original Tecumseh Part

$9.49

$

In Stock, only 4 left!

0

5B

Tecumseh 34943

Drive End Cap ASM

Note: Original Tecumseh Part

$27.99

$

Usually ships in 3-12 days

0

6

Tecumseh 33450

Nut-Lock
(Superseded to 651016)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 34944

Armature
(Superseded to 37753)

Note: Original Tecumseh Part

$143.99

$

Usually ships in 3-12 days

0

8

Tecumseh 34945

Housing ASM

Note: Original Tecumseh Part

$44.99

$

In Stock, only 1 left!

0

10A

Tecumseh 590500

Washer-Thrust

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

11C

Tecumseh 35714

Commutator End Cap ASM (Includes Brushes)

Note: Original Tecumseh Part

$

$

Not available

12

Tecumseh 34947

Bolt (10-32 x 3-3/16)

Note: Original Tecumseh Part

$3.99

$

In Stock, only 2 left!

0

13

Tecumseh 34946

Driver-Pinion

Note: Original Tecumseh Part

$5.49

$

In Stock, Qty 5

0

14

Tecumseh 34951

Washer-Cup

Note: Original Tecumseh Part

$

$

Not available

15

Tecumseh 34952

Ring-Retaining

Note: Original Tecumseh Part

$3.99

$

In Stock, only 3 left!

0

16

Tecumseh 34948

Washer

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 34953

Nut-Drive

Note: Original Tecumseh Part

$16.99

$

In Stock, only 2 left!

0

18

Tecumseh 590608

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0
