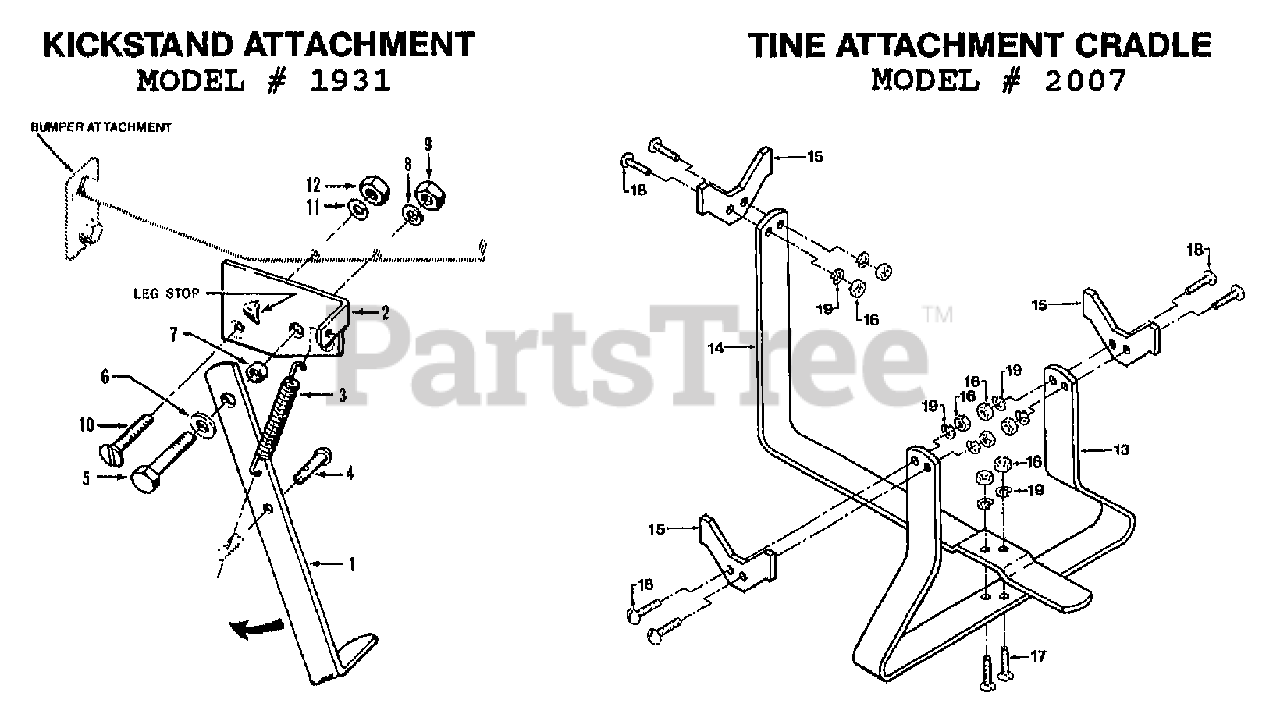

2007 - Troy-Bilt Tine Attachment Cradle ATTACHMENTS Parts Diagram

Tine Attachment Cradle

ATTACHMENTS Parts Diagram

  • Title

Troy-Bilt 1931

KICKSTAND

$

$

Currently unavailable

1

MTD 2195

LEG-KICK STAND PNT

$

$

Not available

2

MTD 2196

PLATE-KICK STAND PNT

$

$

Not available

3

Troy-Bilt 1492

SPRING-.436 X 3.25
(Superseded to GW-1492099)

$10.99

$

In Stock, only 3 left!

0

4

MTD 9336

PIN-CLEVIS .183X1.0 ZP

$

$

Not available

5

Troy-Bilt 9741

BOLT-HH 5/16-18 X 2 G5 ZP
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

7

MTD 9473

BUSHING .438X.313X.275

$

$

Not available

8

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

9

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

10

MTD 9567

SCR-SLFH 1/4-20X1.5 ZP

$

$

Not available

11

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

12

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

MTD 2007

TINE CRADLE
(Superseded to 690-120-0078)

$

$

Not available

13

Troy-Bilt 2299

SUPPORT-TINE CRADLE
(Superseded to GW-2299)

$

$

Not available

14

MTD 2301

SUPT-TINE CRADLE PNT
(Superseded to GW-2301)

$

$

Not available

15

MTD 2297

PLATE-TINE CRADLE PNT

$

$

Not available

16

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

17

MTD 9580

SCR-SLFH 1/4-20 X .75 ZP

$

$

Not available

18

Troy-Bilt 9701

SCR-HH 1/4-20X.75 G5 ZP

$

$

Currently unavailable

19

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable
