20068 - Toro 22" Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

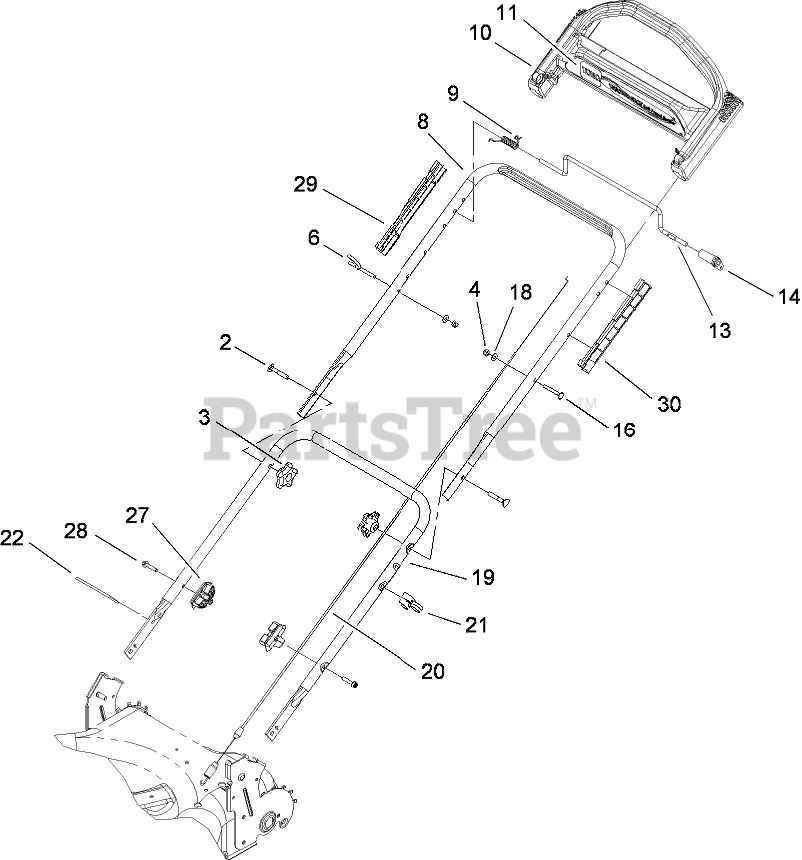

HANDLE ASSEMBLY Parts Diagram

  • Title

2

Toro 112-8876

SCREW-HANDLE
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

3

Toro 108-8162

KNOB-LOCKING
(Superseded to 117-5976)

$2.99

$

In Stock, only 3 left!

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

6

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

8

Toro 104-8680-05

Handle-Upper

$64.99

$

In Stock, only 1 left!

0

9

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 10

0

10

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 1 left!

0

11

Toro 114-0338

DECAL-PACE, PERSONAL

$16.99

$

Usually ships in 3-6 days

0

13

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, only 1 left!

0

14

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 15

0

16

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 9

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 112-6440-05

HANDLE-LOWER

$57.99

$

In Stock, only 1 left!

0

20

Toro 105-1844

Cable-Traction

$22.99

$

In Stock, only 4 left!

0

21

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 12

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

27

Toro 108-9788

ANCHOR-BAG

$3.49

$

Usually ships in 3-6 days

0

28

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

29

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 3 left!

0

30

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0
