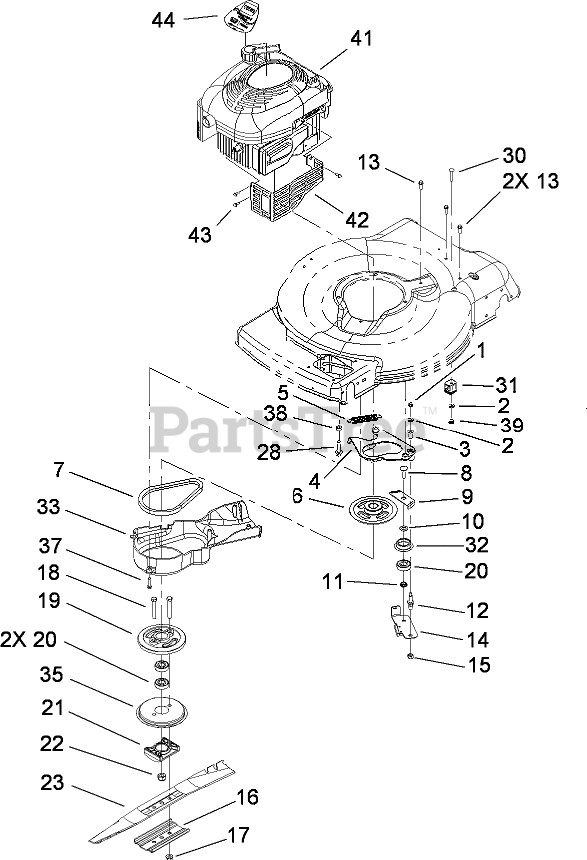

20068 - Toro 22" Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) ENGINE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

2

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

3

Toro 107-0797

BUSHING

$6.49

$

In Stock, Qty 20+

0

4

Toro 108-9341

PLATE-ANCHOR

$31.99

$

Usually ships in 3-6 days

0

5

Toro 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 20+

0

6

Toro 110-7456

PULLEY

$55.99

$

Usually ships in 3-6 days

0

7

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$30.99

$

Usually ships in 3-6 days

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

9

Toro 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.99

$

In Stock, Qty 20+

0

10

Toro 605256

WASHER-PLAIN

$2.99

$

In Stock, Qty 20+

0

11

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 20+

0

12

Toro 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 8

0

13

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

Toro 107-7477

BRAKE ARM ASM
(Superseded to 125-1063)

$23.99

$

In Stock, Qty 14

0

15

Toro 603773

NUT

$2.99

$

In Stock, Qty 20+

0

16

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

17

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

18

Toro 3211-42

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

19

Toro 107-0754

DRUM
(Superseded to 126-8108)

$55.99

$

In Stock, Qty 10

0

20

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

21

Toro 107-7487

SUPPORT-BLADE

$22.99

$

In Stock, only 2 left!

0

22

Toro 108-9342

NUT-HEX

$5.49

$

In Stock, Qty 10

0

23

Toro 108-9764-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, Qty 20+

0

28

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

30

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

31

Toro 106-6801

ANCHOR-CABLE

$7.99

$

In Stock, Qty 5

0

32

Toro 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$3.49

$

In Stock, Qty 20+

0

33

Toro 107-0798

COVER-BBC

$46.99

$

Usually ships in 3-6 days

0

35

Toro 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, Qty 5

0

37

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 15

0

38

Toro 100-6447

TUBE-SPACER

$

$

Not available

39

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

41

ENGINE-BRIGGS AND STRATTON, 126T05-0222-B1

Note: Not serviced separately

$

$

Not available

41

ENGINE-BRIGGS AND STRATTON, 126T05-0222-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

42

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

43

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

44

Toro 114-0339

DECAL-ENGINE

$12.99

$

In Stock, only 2 left!

0
