20066 - Toro 22" Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

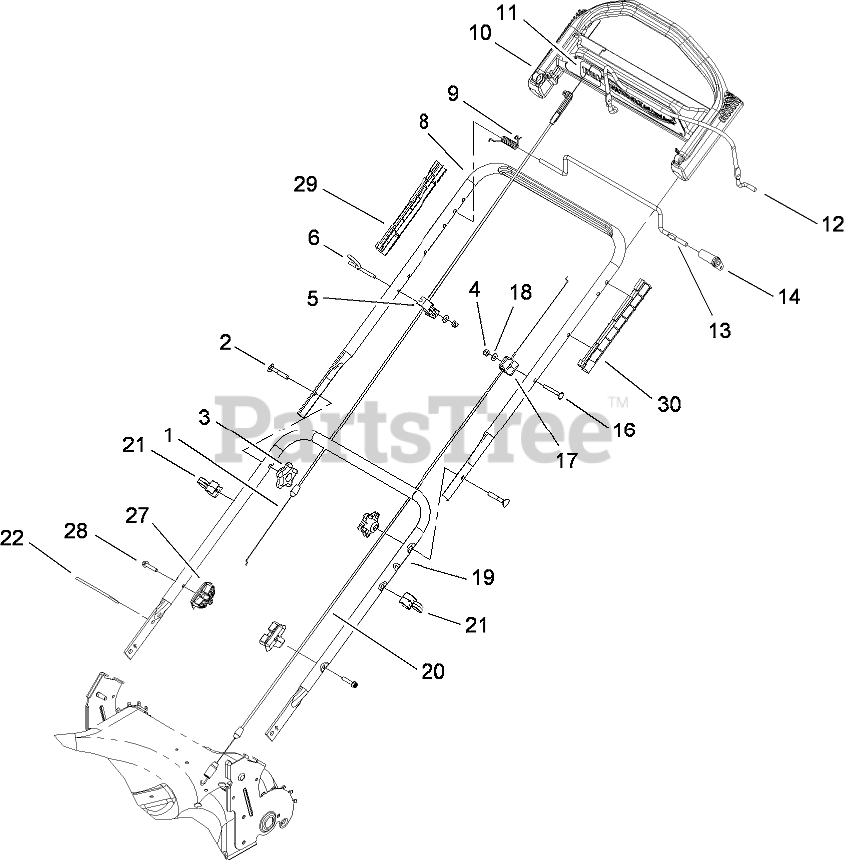

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 104-8676

Cable-Brake

$34.99

$

In Stock, only 2 left!

0

2

Toro 112-8876

SCREW-HANDLE
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

3

Toro 108-8162

KNOB-LOCKING
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 15

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

5

Toro 106-8331

ANCHOR-CABLE

$5.99

$

In Stock, Qty 8

0

6

Toro 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

8

Toro 104-8680-05

Handle-Upper

$74.99

$

In Stock, only 1 left!

0

9

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 6

0

10

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

11

Toro 114-0338

DECAL-PACE, PERSONAL

$20.99

$

Usually ships in 3-6 days

0

12

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$25.99

$

In Stock, only 1 left!

0

13

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

14

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

16

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

17

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 112-6440-05

HANDLE-LOWER

$67.99

$

In Stock, only 1 left!

0

20

Toro 105-1844

Cable-Traction

$27.99

$

In Stock, only 4 left!

0

21

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

27

Toro 108-9788

ANCHOR-BAG

$4.49

$

Usually ships in 3-6 days

0

28

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

29

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

30

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0
