20065 - Toro 22" Recycler Walk-Behind Mower (SN: 280072442 - 280999999) (2008) MUFFLER AND FUEL TANK ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

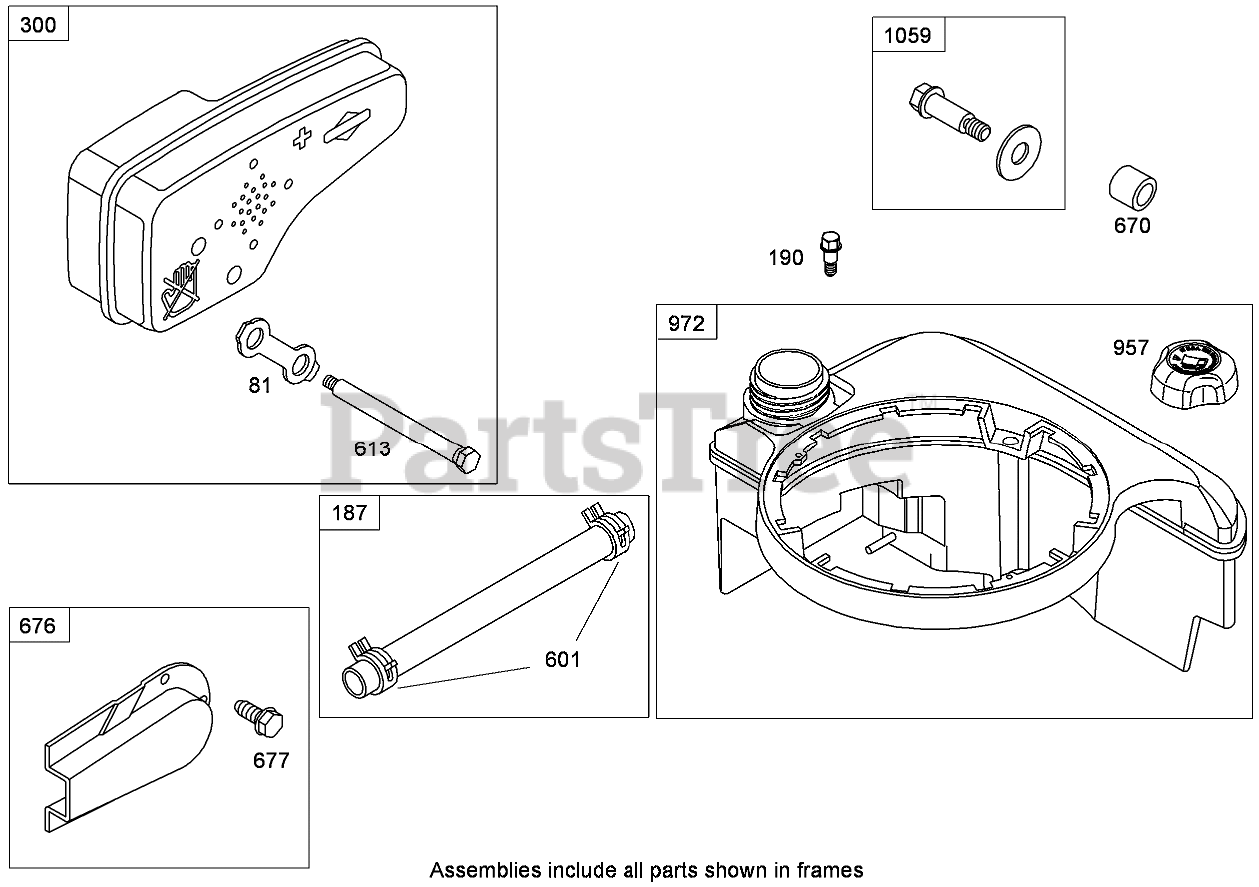

MUFFLER AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

81

Briggs & Stratton 691740

Lock-Screw, Muffler

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 6

0

187

Briggs & Stratton 791766

Line?Fuel (Cut to Required Length)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 690940

Screw (Fuel Tank)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 8

0

300

Briggs & Stratton 692038

Muffler

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

Clamp-Hose

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691340

Screw (Muffler)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 7

0

670

Briggs & Stratton 692294

Spacer-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

676

Briggs & Stratton 493871

Deflector-Muffler

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

Screw (Muffler Deflector)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

957

Briggs & Stratton 699985

Cap-Tank, Fuel
(Superseded to 796577)

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 699374

Tank-Fuel

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0
