20065 - Toro 22" Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ENGINE AND BLADE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

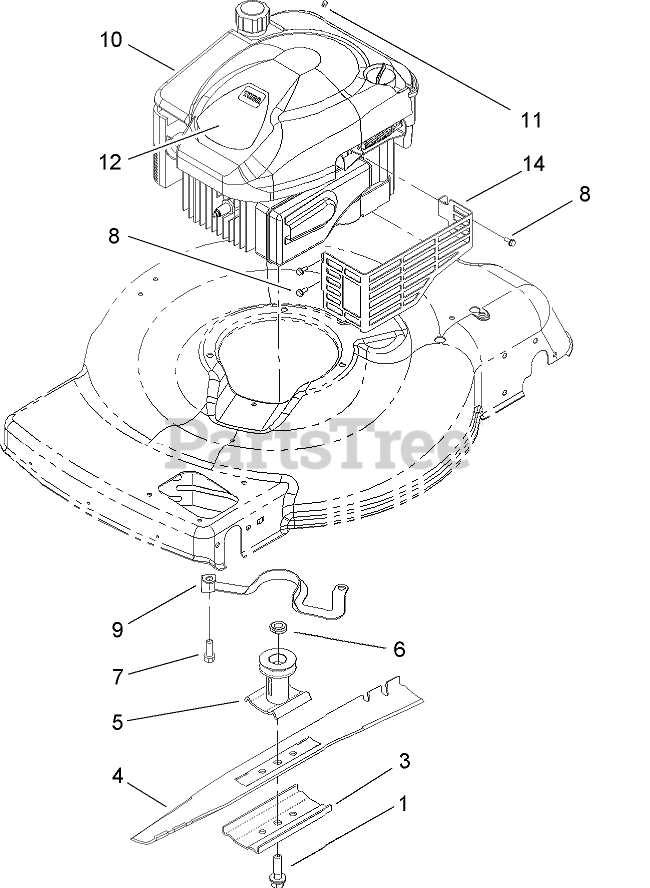

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

3

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 9

0

4

Toro 108-9764-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, only 3 left!

0

5

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

6

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

7

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

9

Toro 105-3031-03

Guide-Belt

$13.99

$

In Stock, only 1 left!

0

10

ENGINE-BRIGGS & STRATTON, 126T02-0139-B1

Note: Not serviced separately

$

$

Not available

10

ENGINE-BRIGGS & STRATTON, 126T02-0139-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

11

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

12

Toro 114-0339

DECAL-ENGINE

$12.99

$

In Stock, only 2 left!

0

14

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0
