20064 - Toro 22" Recycler Walk-Behind Mower (SN: 280070156 - 280999999) (2008) CYLINDER ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

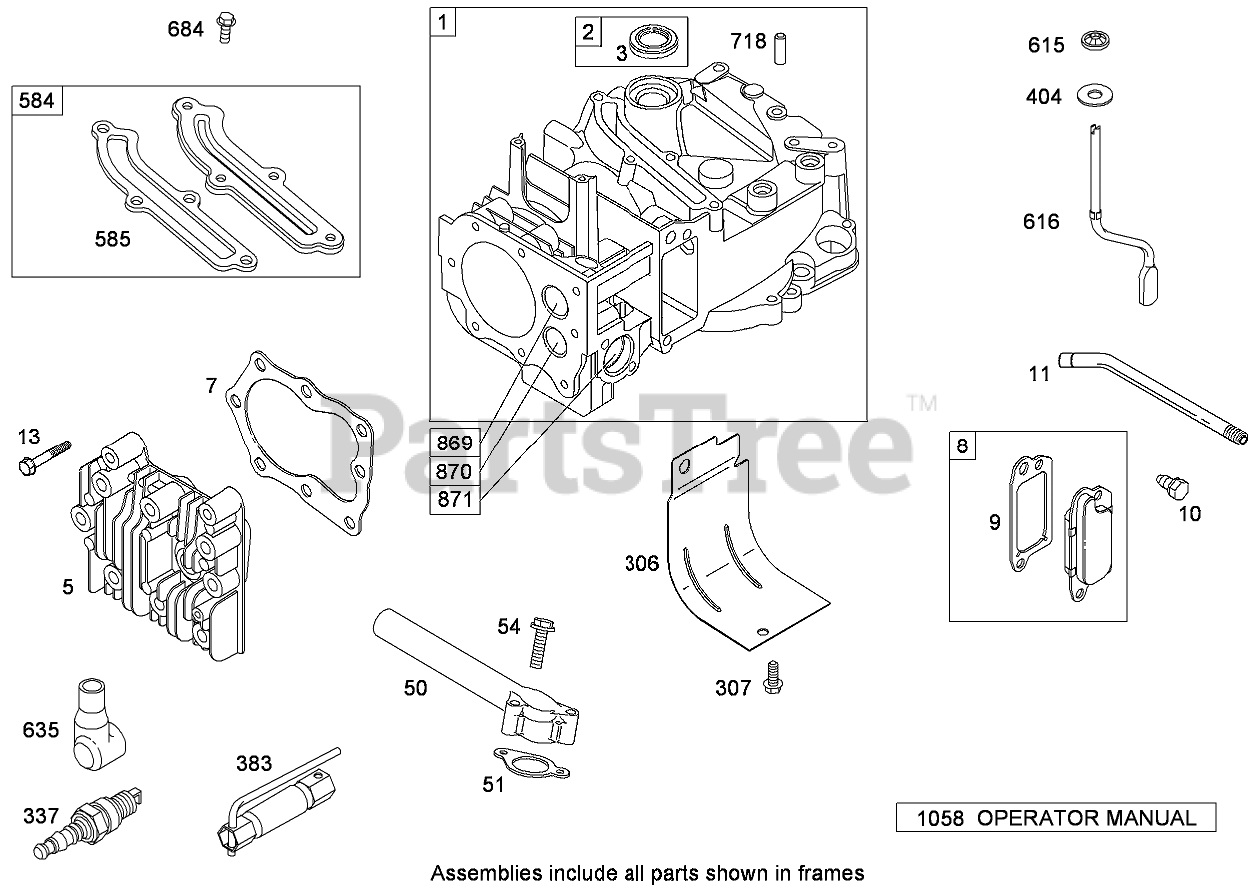

CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Briggs & Stratton 697322

Cylinder ASM
(Superseded to 592645)

Note: Obtain parts from www.briggsandstratton.com

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399269

Bushing and Seal Kit
(Superseded to 796961)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

5

Briggs & Stratton 691160

Head-Cylinder
(Superseded to 594989)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 695250

Breather Asm
(Superseded to 590395)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 696125

Gasket-Breather
(Superseded to 699833)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691125

Screw (Breather ASM)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 7

0

11

Briggs & Stratton 691781

Tube-Breather

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 690912

Screw (Cylinder Head)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

51

Toro 272199s

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

51

Toro 272199s

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

54

Briggs & Stratton 691650

Screw (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 690450

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw (Cylinder Shield)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

337

Toro 802592s

Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

383

Toro 89838s

Wrench-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

404

Briggs & Stratton 690272

Washer (Governor Crank)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

584

Briggs & Stratton 697734

Cover-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$6.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 690340

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 698801

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

635

Toro 66538s

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

684

Briggs & Stratton 690345

Screw (Breather Passage Cover)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 691155

Seat-Valve (Intake)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 690380

Seat-Valve (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Intake)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 277039TRI

Operator Manual
(Superseded to 380567TRI)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
