20058 - Toro Super Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ELECTRICAL ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

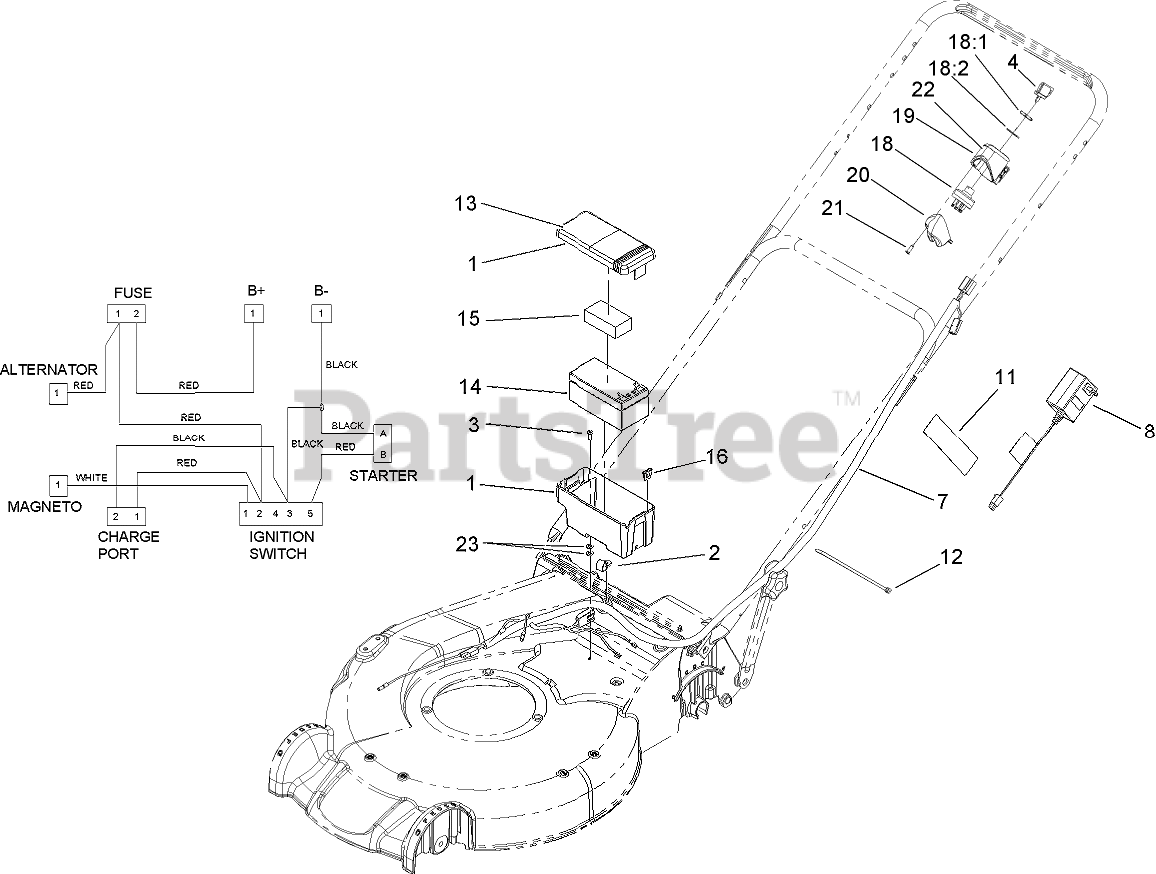

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

2

Toro 2412-73

CLAMP-R

$3.49

$

Usually ships in 3-6 days

0

3

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

4

Toro 700918

KEY

$6.49

$

In Stock, Qty 11

0

7

Toro 108-4839

HARNESS-WIRE

$148.99

$

Usually ships in 3-6 days

0

8

Toro 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

$39.99

$

In Stock, only 1 left!

0

11

Toro 104-7953

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

13

Toro 108-4791

DECAL-INSTRUCTIONAL

$6.49

$

Usually ships in 3-6 days

0

14

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, only 1 left!

0

15

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

16

Toro 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 8

0

18

Toro 23-0660

SWITCH-STARTER

$22.99

$

In Stock, only 1 left!

0

18:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

18:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

19

Toro 108-3795

HOUSING-SWITCH, KEY

$20.99

$

In Stock, Qty 5

0

20

Toro 108-3796

COVER-SWTCH

$5.49

$

In Stock, only 1 left!

0

21

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

22

Toro 108-9751

DECAL-SWITCH, IGNITION

$7.99

$

Usually ships in 3-6 days

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
