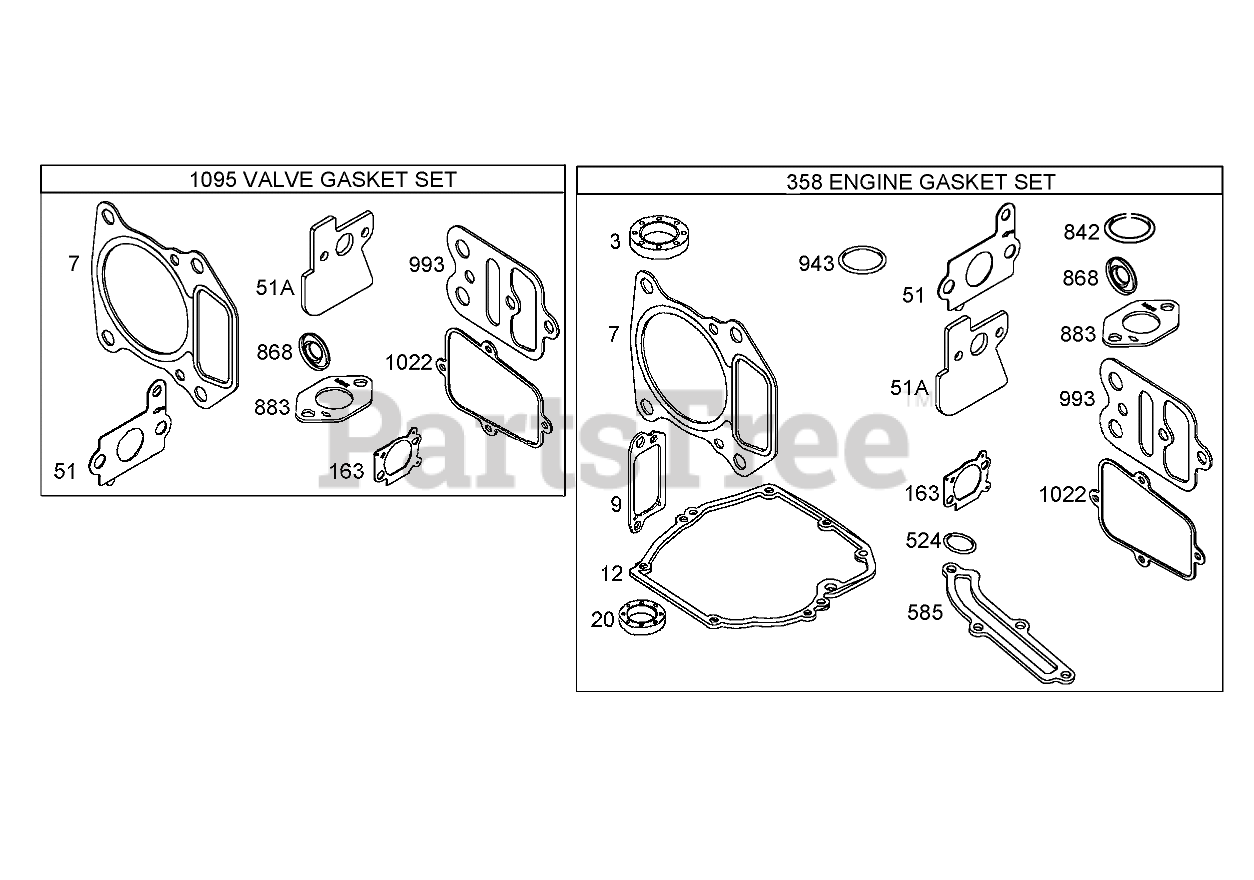

20057 - Toro Super Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) VALVE AND ENGINE GASKET SET ASSEMBLIES BRIGGS AND STRATTON 122672-0192-E1 Parts Diagram

Super Recycler Walk-Behind Mower

VALVE AND ENGINE GASKET SET ASSEMBLIES BRIGGS AND STRATTON 122672-0192-E1 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal?Oil (Magneto Side)
(Superseded to 299819S)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 695166

Cylinder Head Gasket
(Superseded to 697230)

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal?Oil (PTO Side)
(Superseded to 399781S)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 7

0

358

Briggs & Stratton 694090

Gasket Set?Engine
(Superseded to 795442)

Note: Obtain parts from www.briggsandstratton.com

$90.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 692296

Seal-O Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 7

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

Seal-O Ring (Dipstick)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

943

Briggs & Stratton 692514

Seal-O Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 5

0

1095

Briggs & Stratton 694091

Gasket Set?Valve
(Superseded to 795441)

Note: Obtain parts from www.briggsandstratton.com

$70.99

$

Usually ships in 2-12 days

0
