20057 - Toro Super Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 122672-0192-E1 Parts Diagram

Super Recycler Walk-Behind Mower

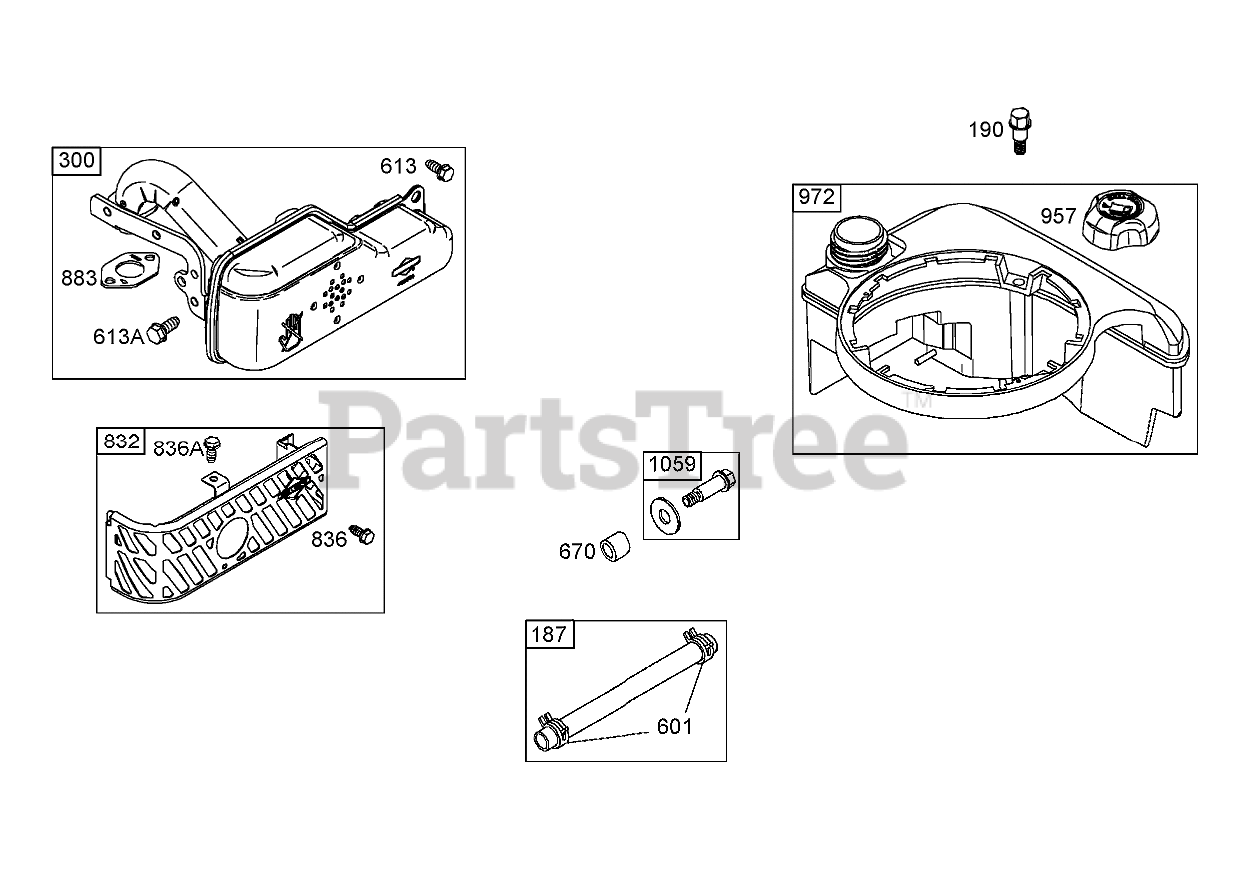

MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 122672-0192-E1 Parts Diagram

  • Title
187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 690940

Screw (Fuel Tank)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 8

0

300

Briggs & Stratton 694248

Muffler
(Superseded to 692275)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691108

Screw (Muffler)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

613A

Briggs & Stratton 691140

Screw (Muffler)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 692294

Spacer-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

832

Briggs & Stratton 691466

Guard?Muffler

Note: Obtain parts from www.briggsandstratton.com

$54.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 697551

Screw (Muffler Guard)
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

836A

Briggs & Stratton 691147

Screw (Muffler Guard)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

957

Briggs & Stratton 692046

Cap-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 9

0

972

Briggs & Stratton 699374

Tank-Fuel

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0
