20053 - Toro Super Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) HOUSING ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

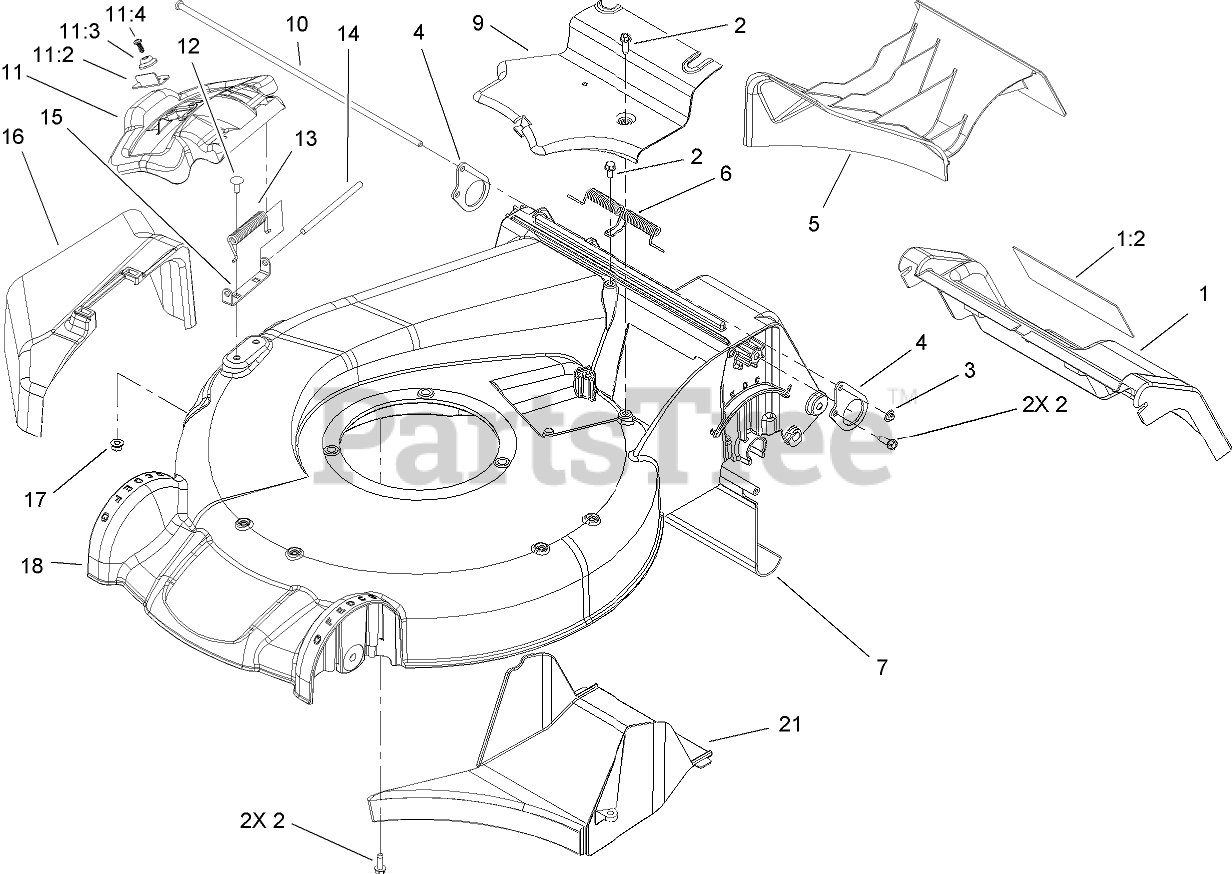

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1323

REAR DOOR ASM

$

$

Not available

1:2

Toro 105-1295

DECAL-WARNING

$3.49

$

In Stock, only 2 left!

0

2

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

3

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

4

Toro 107-7493

PLATE-SUPPORT, DOOR

$6.49

$

Usually ships in 3-6 days

0

5

Toro 107-7490

MULCH PLUG ASM

$24.99

$

In Stock, only 3 left!

0

6

Toro 105-3032

Spring-Door, Rear

$21.99

$

In Stock, only 1 left!

0

7

Toro 107-7496

SHIELD-TRAILING
(Superseded to 120-7011)

$36.99

$

In Stock, only 1 left!

0

9

Toro 107-7494

COVER-BELT

$21.99

$

In Stock, only 1 left!

0

10

Toro 107-7499

ROD-SUPPORT, DOOR

$24.99

$

In Stock, only 3 left!

0

11

Toro 107-3717

DISCHARGE DOOR ASM

$25.99

$

Usually ships in 3-6 days

0

11:2

Toro 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

11:3

Toro 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

11:4

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

12

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

14

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

15

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$12.99

$

In Stock, only 1 left!

0

16

Toro 108-3753

CHUTE-DISCHARGE, SIDE

$25.99

$

In Stock, only 1 left!

0

17

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

18

Toro 108-4750

HOUSING ASM

$

$

Not available

21

Toro 107-7495

TUNNEL-DISCHARGE

$26.99

$

In Stock, only 4 left!

0
