20053 - Toro Super Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) HEIGHT-OF-CUT ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

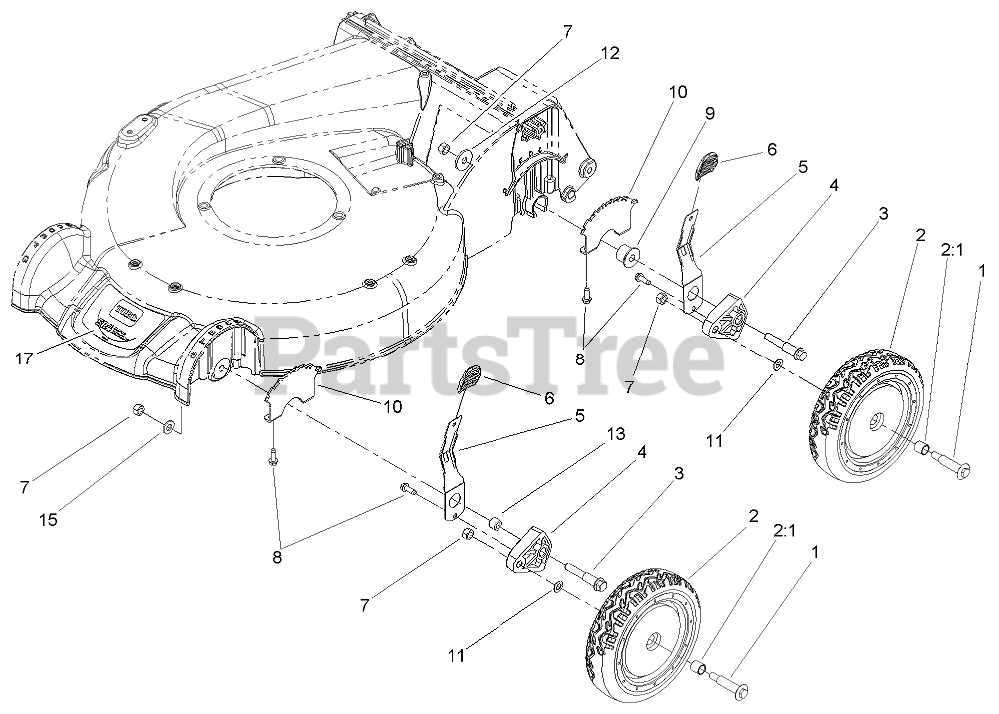

HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

2

Toro 107-3708

WHEEL ASM

$31.99

$

In Stock, Qty 16

0

2:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

3

Toro 107-7498

SCREW-SHOULDER, HOC
(Superseded to 114-3467)

$7.99

$

Usually ships in 3-6 days

0

4

Toro 107-7492

ARM-PIVOT

$17.99

$

In Stock, only 2 left!

0

5

Toro 107-7491

ARM-SPRING

$12.99

$

In Stock, only 3 left!

0

6

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, only 3 left!

0

7

Toro 603773

NUT

$2.99

$

Usually ships in 3-6 days

0

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

Toro 107-7484

SPACER-PIVOT
(Superseded to 108-9758)

$8.49

$

Usually ships in 3-6 days

0

10

Toro 107-7478

PLATE-HOC

$

$

Not available

11

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

12

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

13

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 108-4840

DECAL

$8.49

$

Usually ships in 3-6 days

0
