20053 - Toro Super Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) HANDLE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

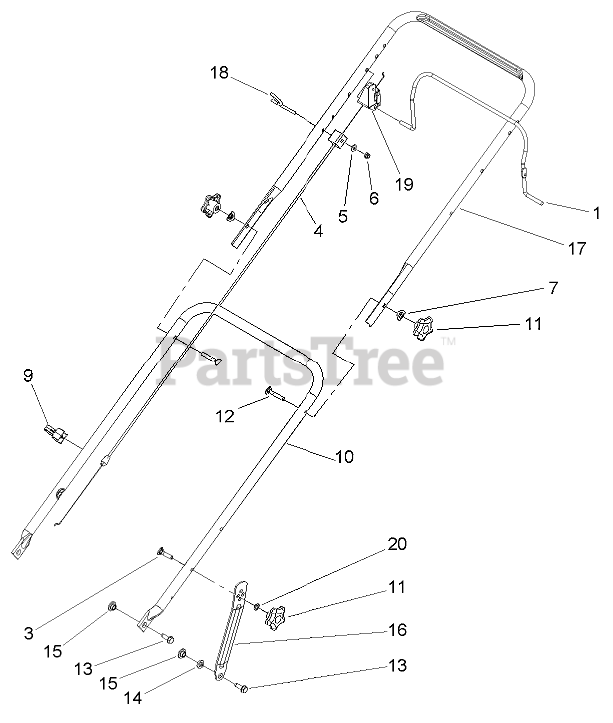

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-6800-03

Bail-Brake

$25.99

$

Usually ships in 3-6 days

0

3

Toro 92-4095

SCREW-HANDLE

$6.99

$

In Stock, only 4 left!

0

4

Toro 108-8107

CABLE-BRAKE

$56.99

$

Usually ships in 3-6 days

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

7

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 19

0

9

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

10

Toro 107-7476-05

HANDLE-LOWER

$130.99

$

Usually ships in 3-6 days

0

11

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, only 2 left!

0

12

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

13

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0

15

Toro 27-6600

SPACER-COUPLING
(Superseded to 125-9249)

$2.99

$

In Stock, only 3 left!

0

16

Toro 107-3780-03

SUPPORT-HANDLE

$

$

Not available

17

Toro 107-3781-05

HANDLE-UPPER

$

$

Not available

18

Toro 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

19

Toro 107-0757

STOP-PIVOT

$5.49

$

In Stock, only 1 left!

0

20

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0
