20052 (E 24) - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HANDLE AND CONTROLS ASSEMBLY Parts Diagram

Carefree Recycler Electric Walk-Behind Mower

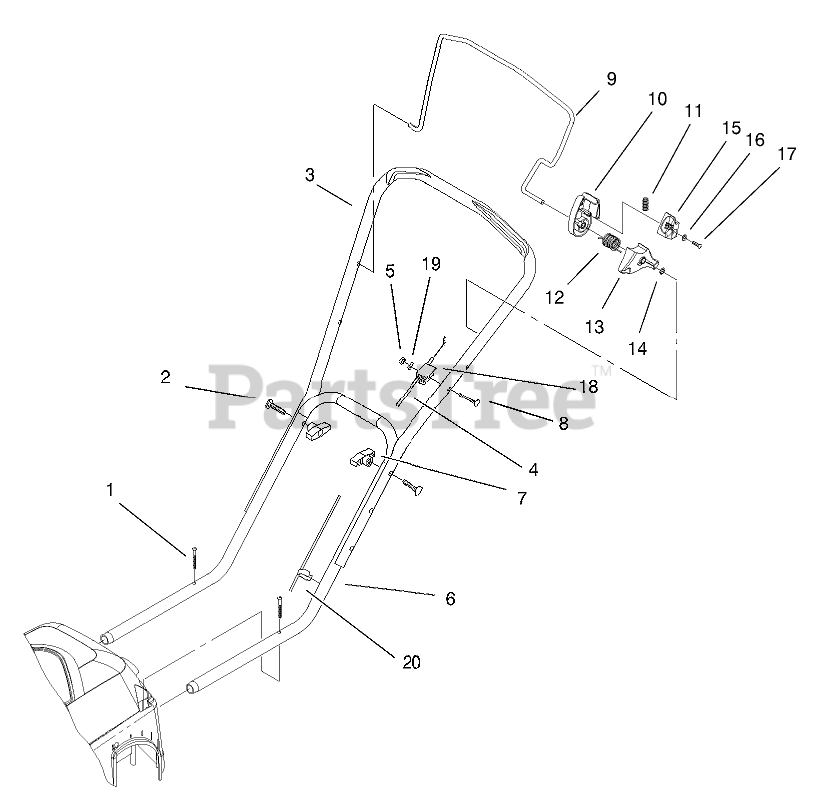

HANDLE AND CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Toro 93-3986

SCREW-PPH

$4.49

$

Usually ships in 3-6 days

0

2

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, only 2 left!

0

3

Toro 100-5044-05

HANDLE-UPPER

$190.99

$

Usually ships in 3-6 days

0

4

Toro 93-3978

CABLE - CONTROL

$56.99

$

In Stock, only 1 left!

0

5

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

6

Toro 93-3972-05

HANDLE - LOWER

$

$

Not available

7

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

8

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

9

Toro 95-3000-03

BAIL

$

$

Not available

10

Toro 93-3969

HOUSING - BAIL

$

$

Not available

11

Toro 94-3851

SPRING - COMPRESSION

$1.99

$

In Stock, only 2 left!

0

12

Toro 94-1154

SPRING - BAIL

$49.99

$

Usually ships in 3-6 days

0

13

Toro 93-3967

CAM

$9.99

$

In Stock, only 1 left!

0

14

Toro 94-1191

NUT - PUSH

$3.49

$

In Stock, only 3 left!

0

15

Toro 93-3968

SLIDE

$

$

Not available

16

Toro 94-3868

WASHER - FLAT

$1.49

$

In Stock, Qty 9

0

17

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

18

Toro 94-7407

SUPPORT - CABLE

$

$

Not available

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 94-7409

CLIP - CABLE

$

$

Not available
